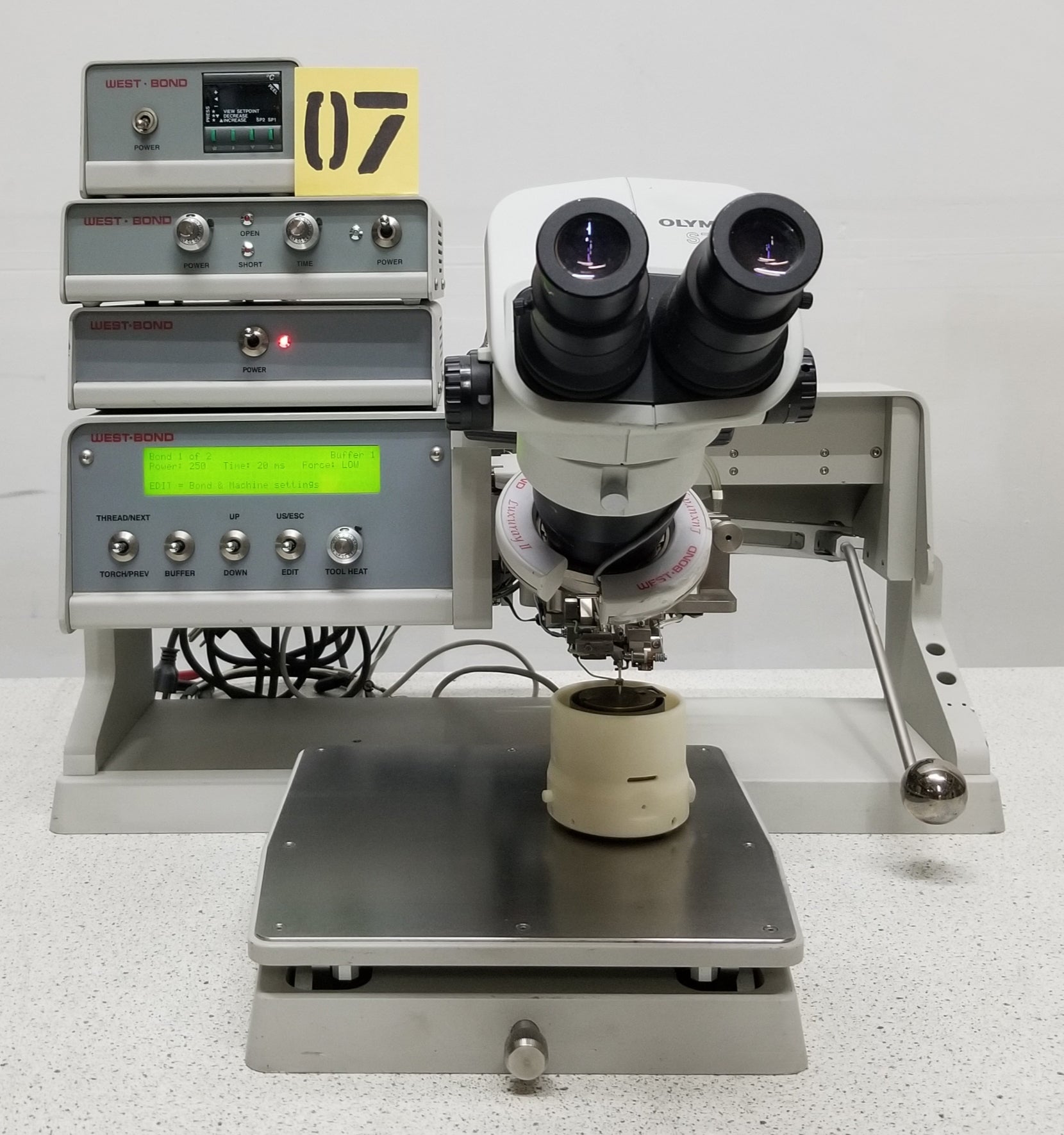

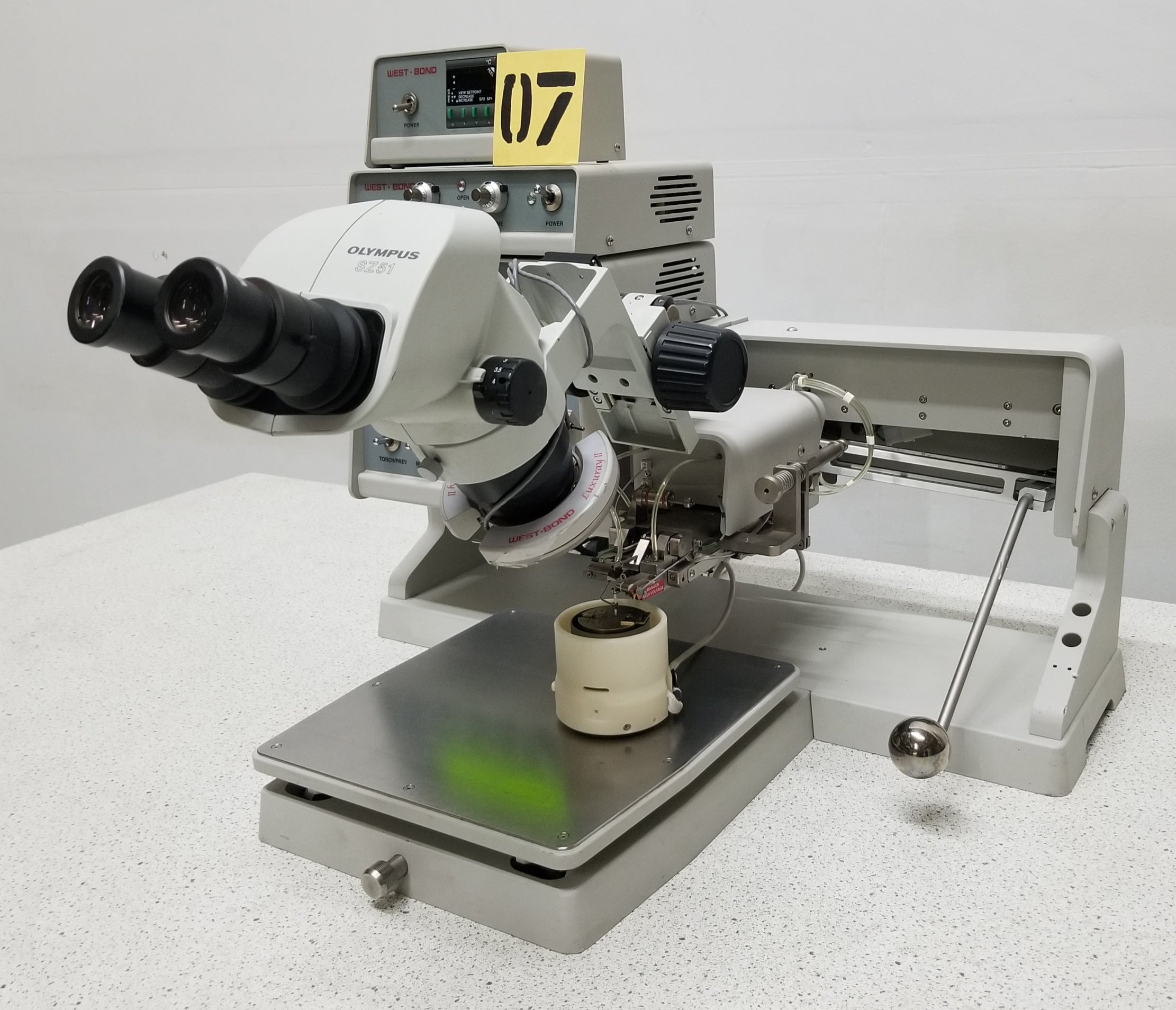

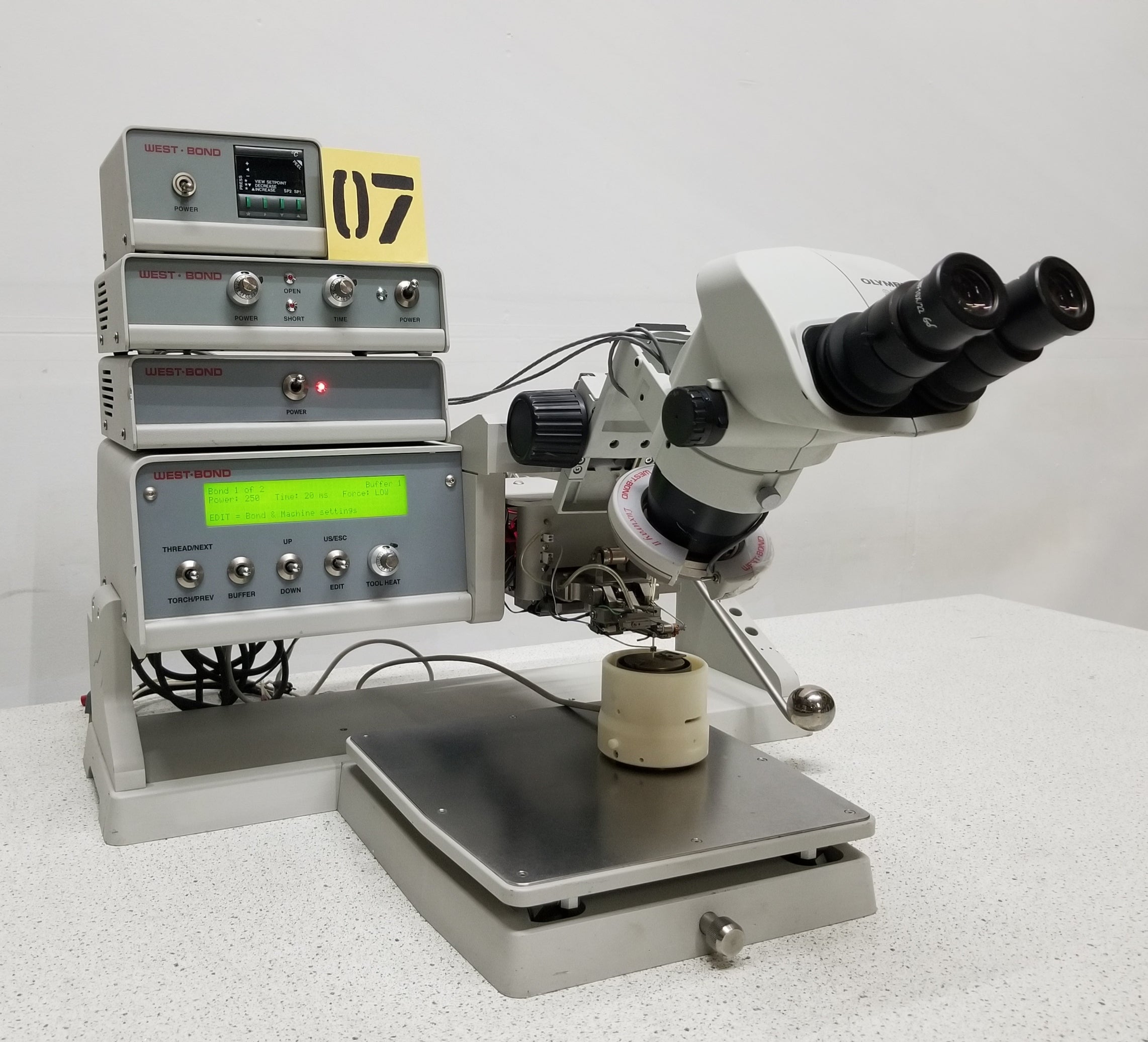

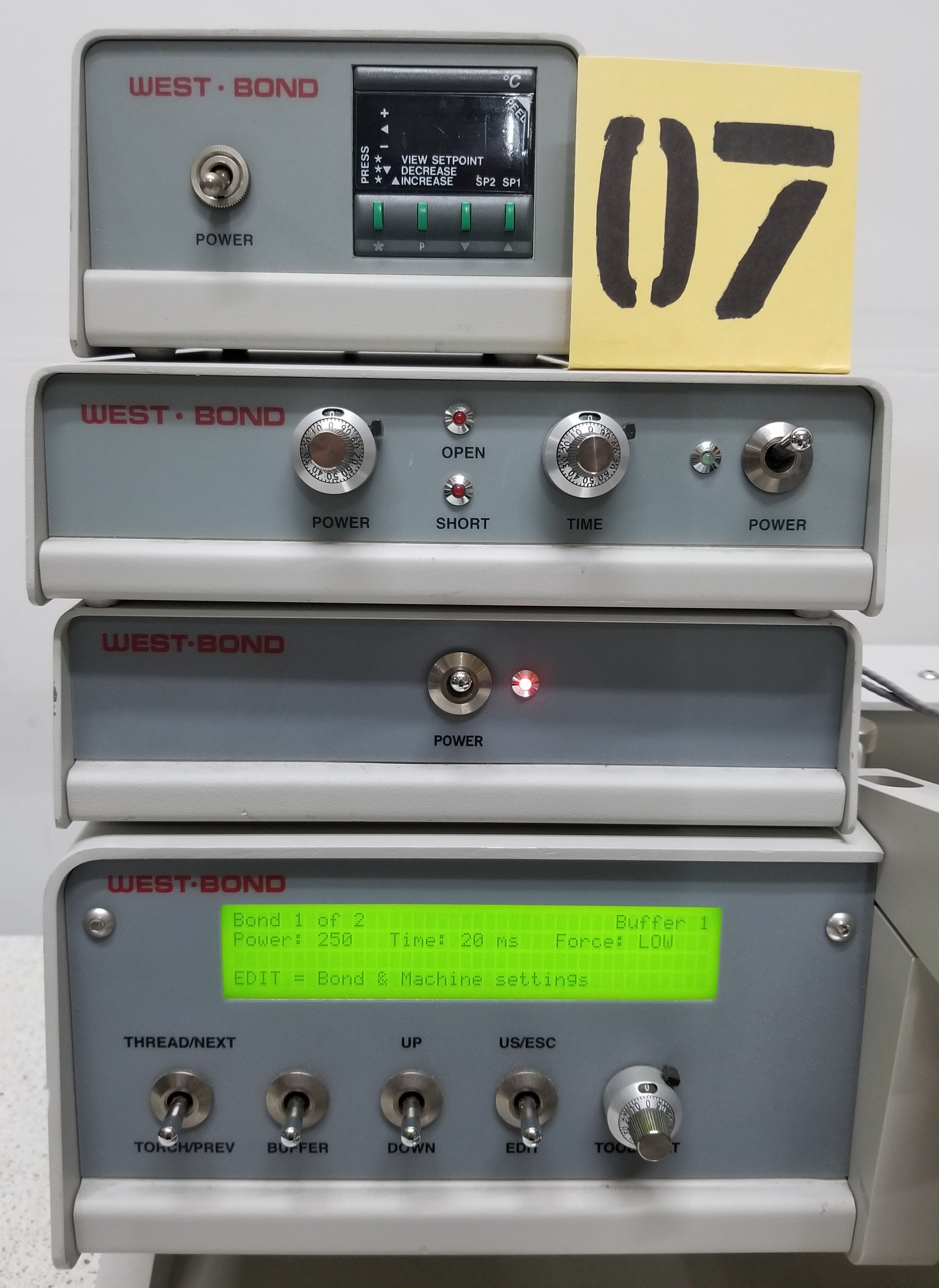

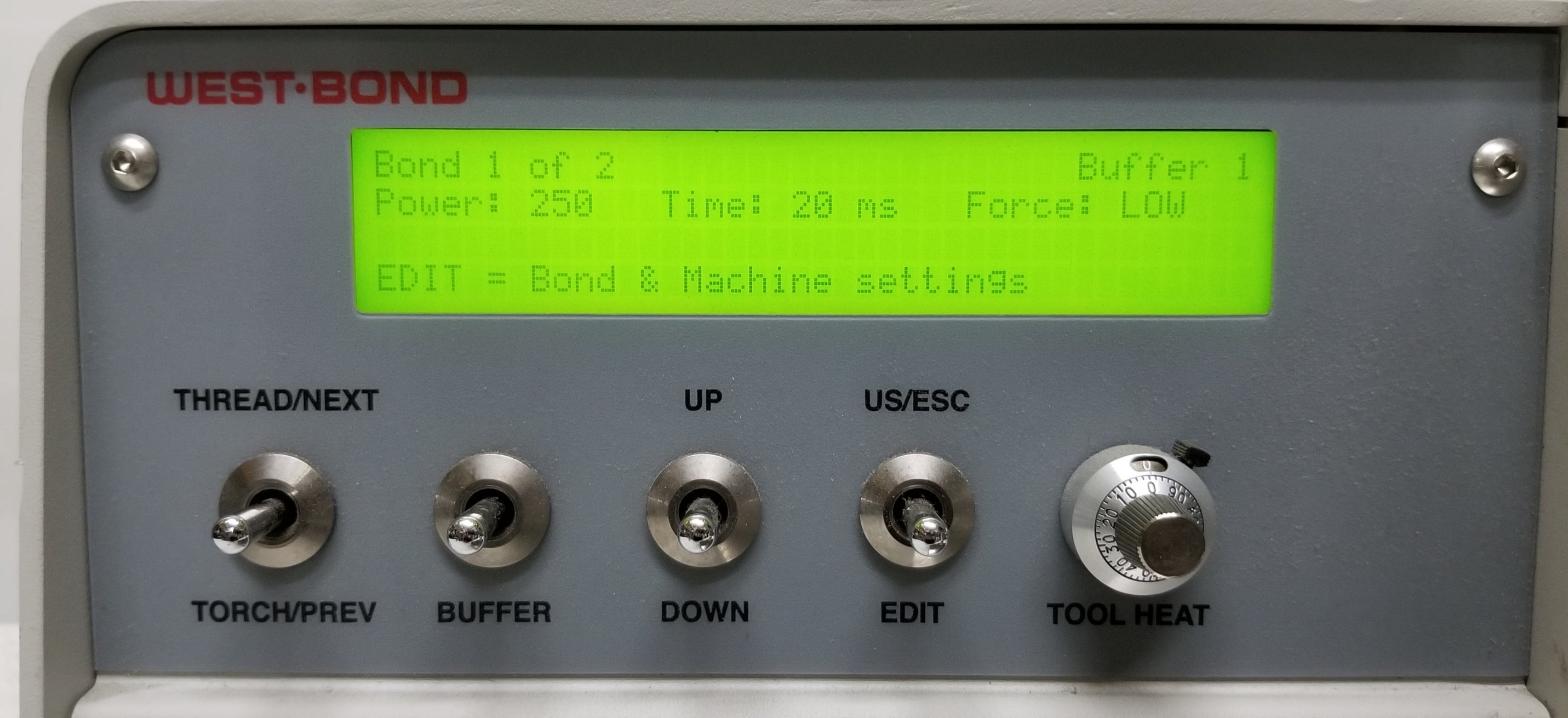

WESTBOND 7730E-79 is a high-performance precision high frequency fine-pitch wire bonder that provides superior bonding of wires.

Thermosonic ball-wedge wire bonder designed to interconnect wire

leads to semiconductor, hybrid, or microwave devices. The machine bonds gold

wires ranging from 0.0007 in. to 0.002 in. Bonds are made by the ball-to-wedge

technique using ultrasonic energy and work piece heat. Wire is clamped and

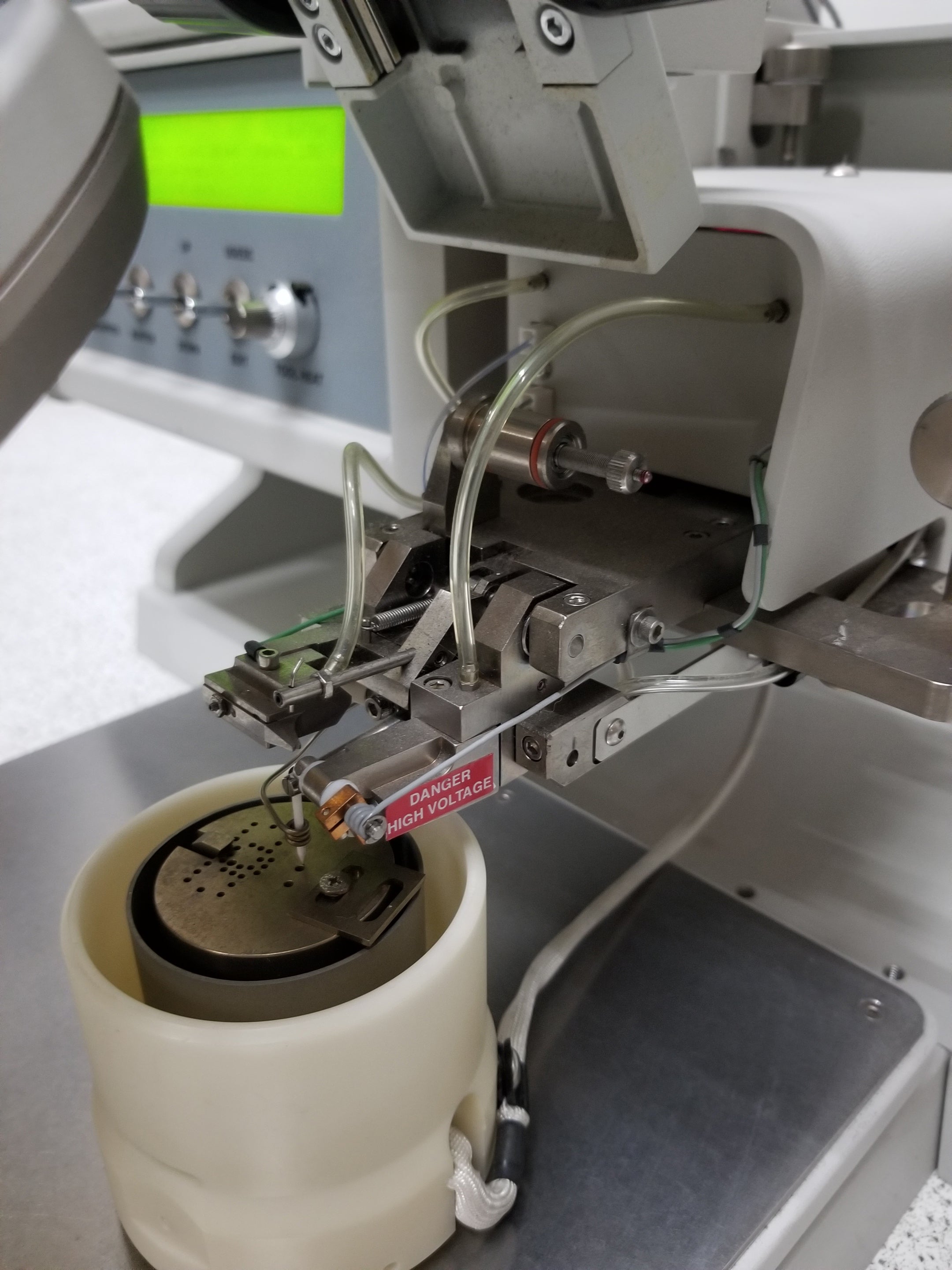

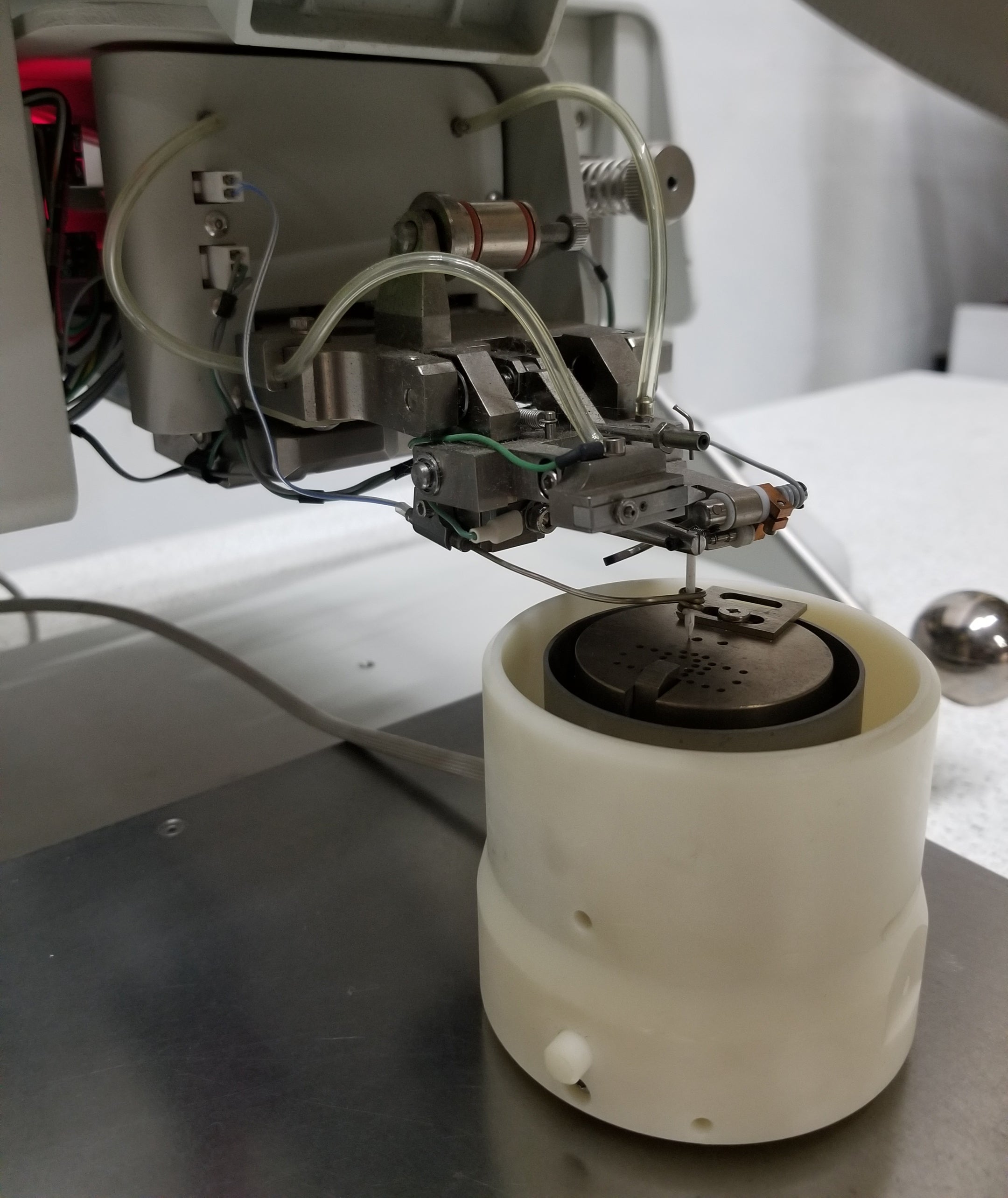

threaded vertically through a hollow capillary, allowing independent feeding action. Features the West·Bond three-axis micromanipulator in which the entire mechanism is

arrayed above the work plane, so that there is no limit to the size of a work

piece. Each of the X, Y, and Z axes is straight-line and purely orthogonal, and

each can be braked pneumatically on signal. In this application, all axes are

braked during the ultrasonic bond time to aid operator control.

115V, 50/60Hz, 2A
