Used Newport Oriel SoI3A Class AAA Solar Simulator

Newport Oriel SoI3A Class AAA Solar Simulator

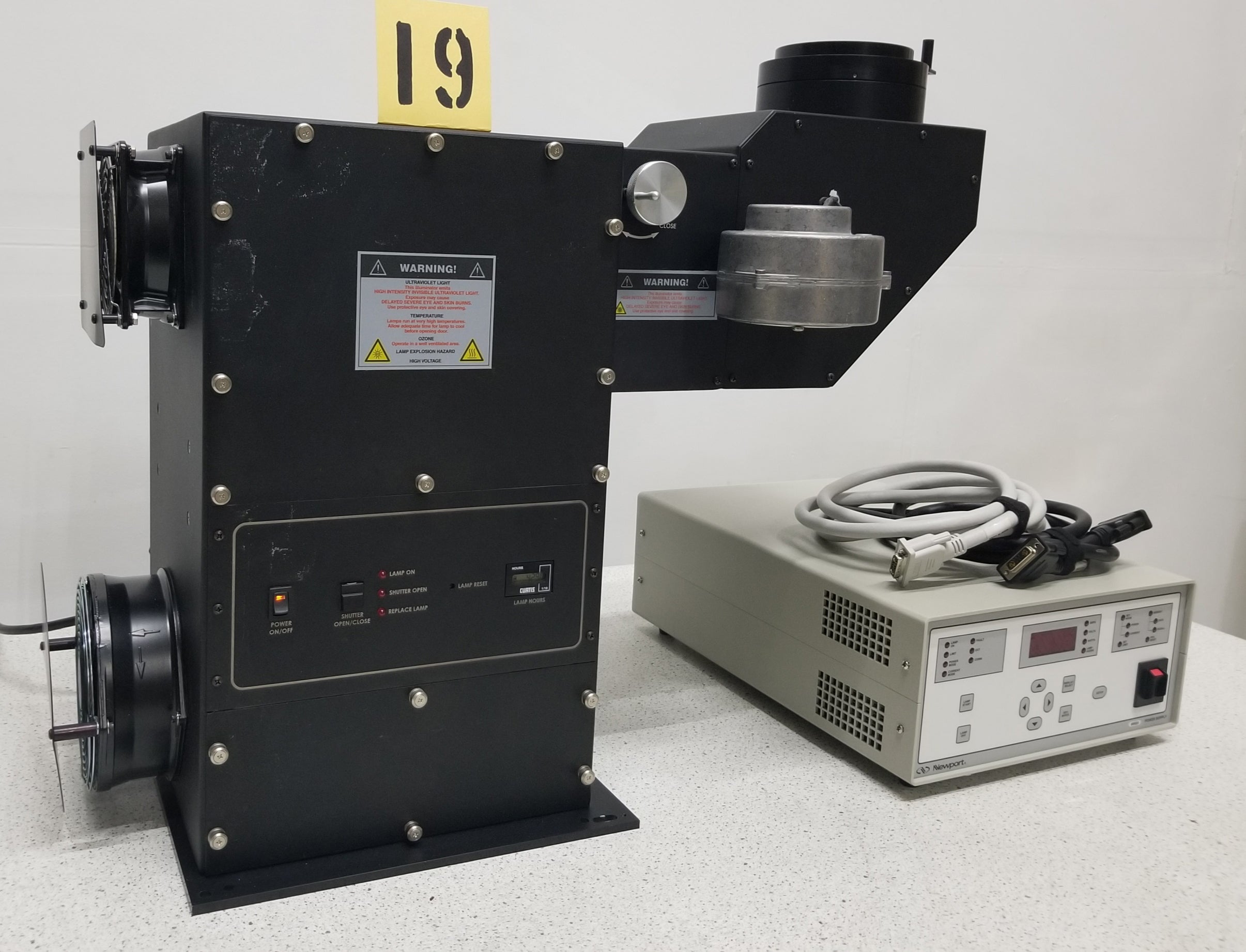

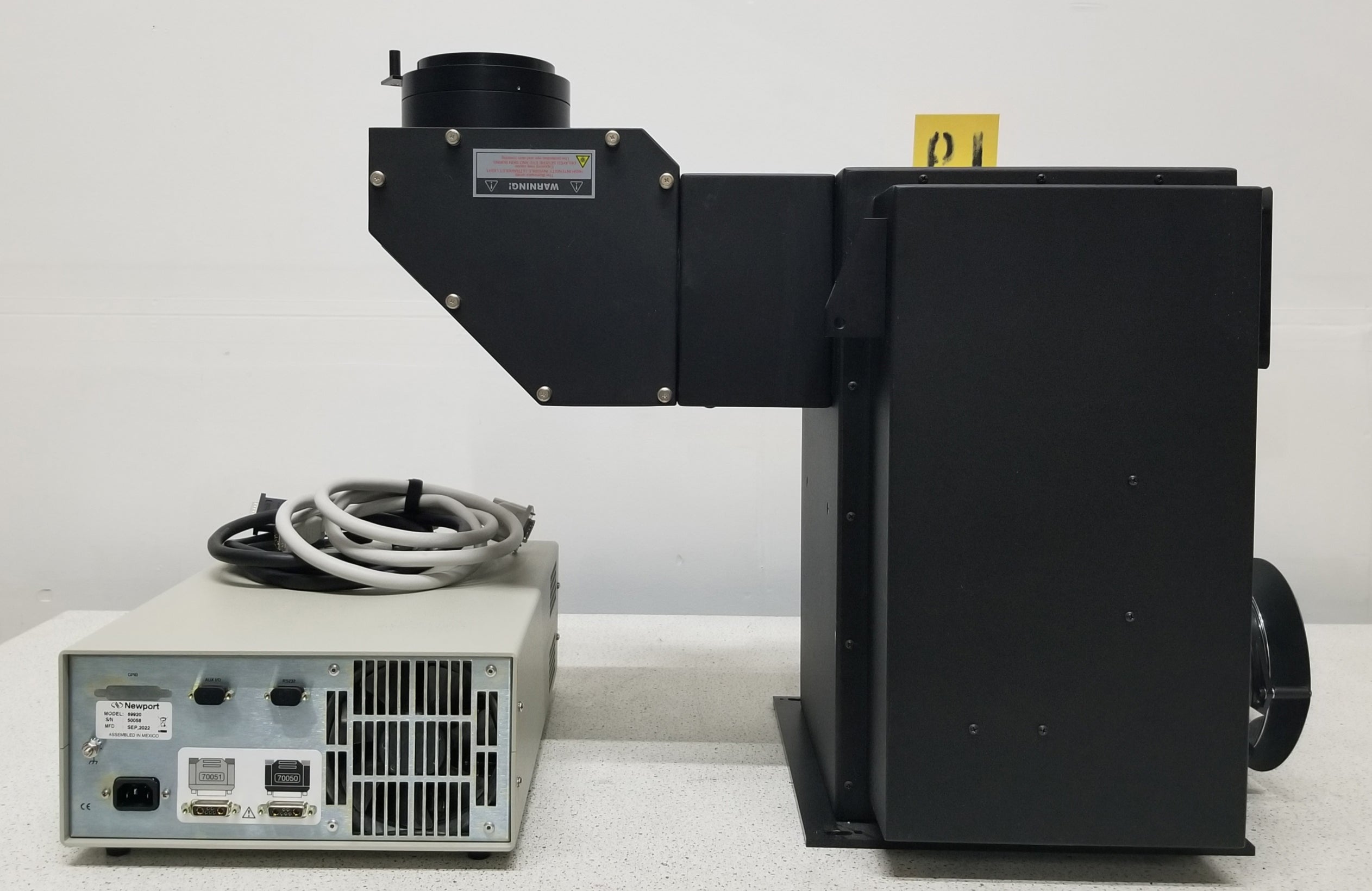

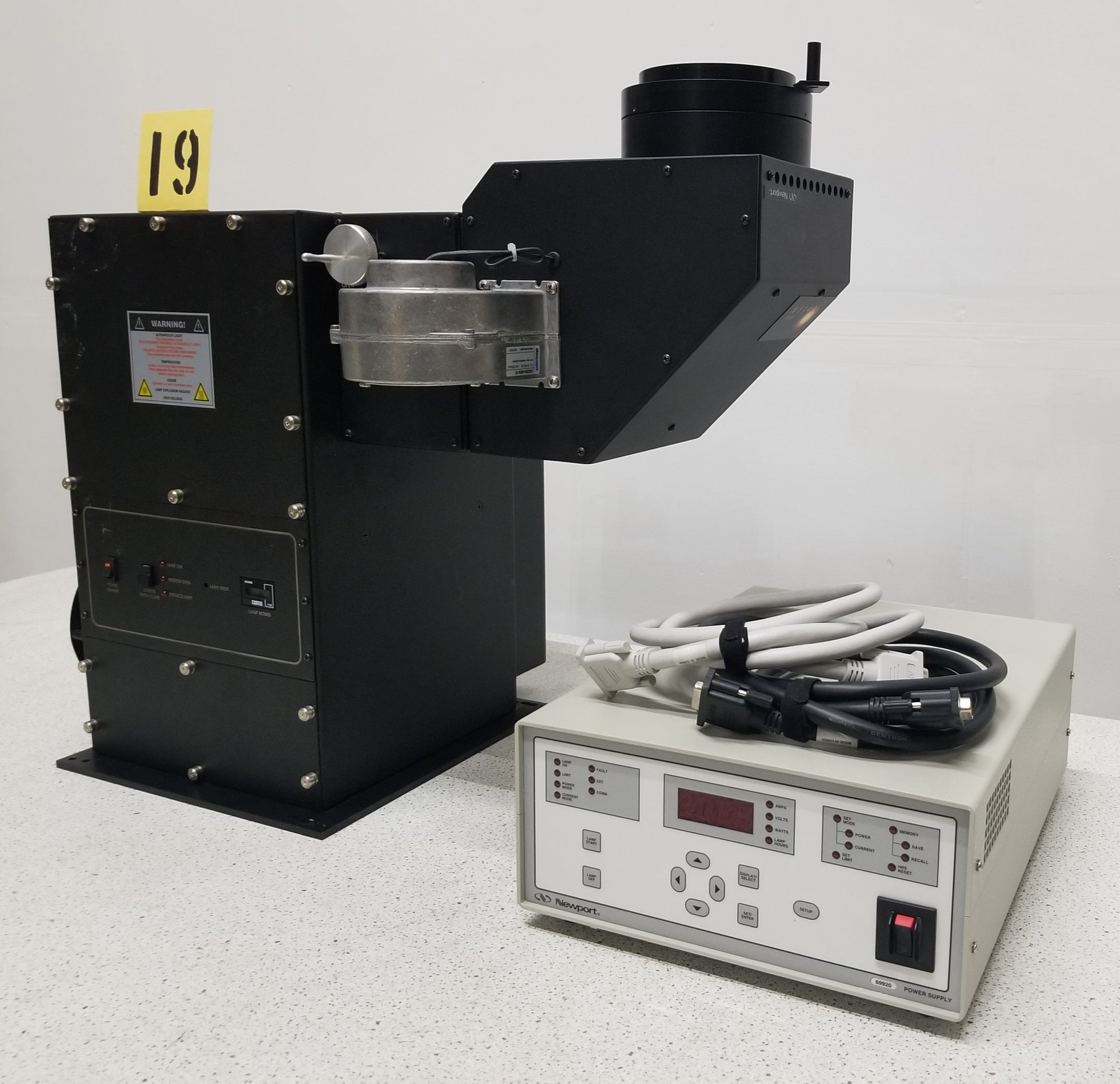

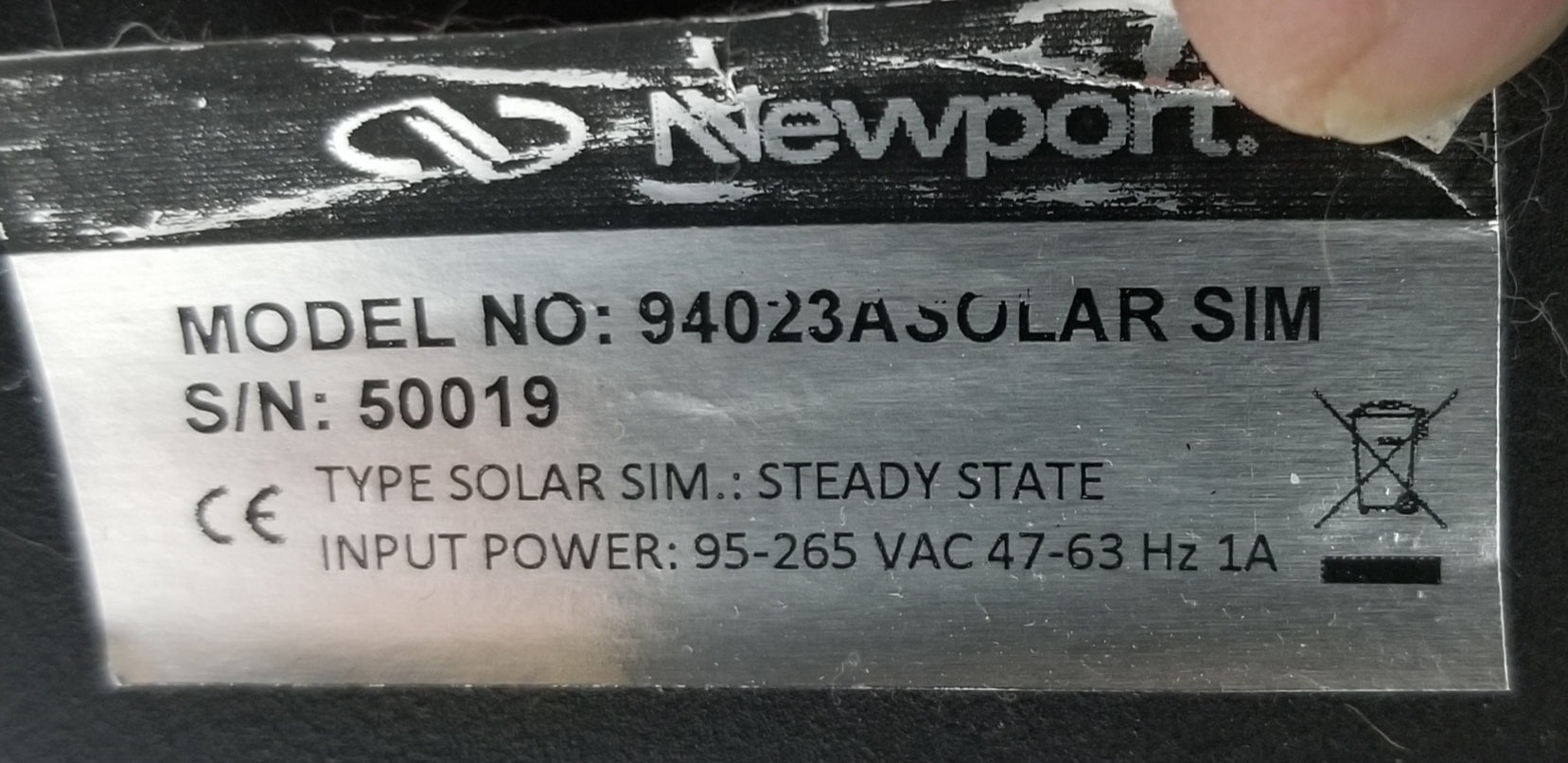

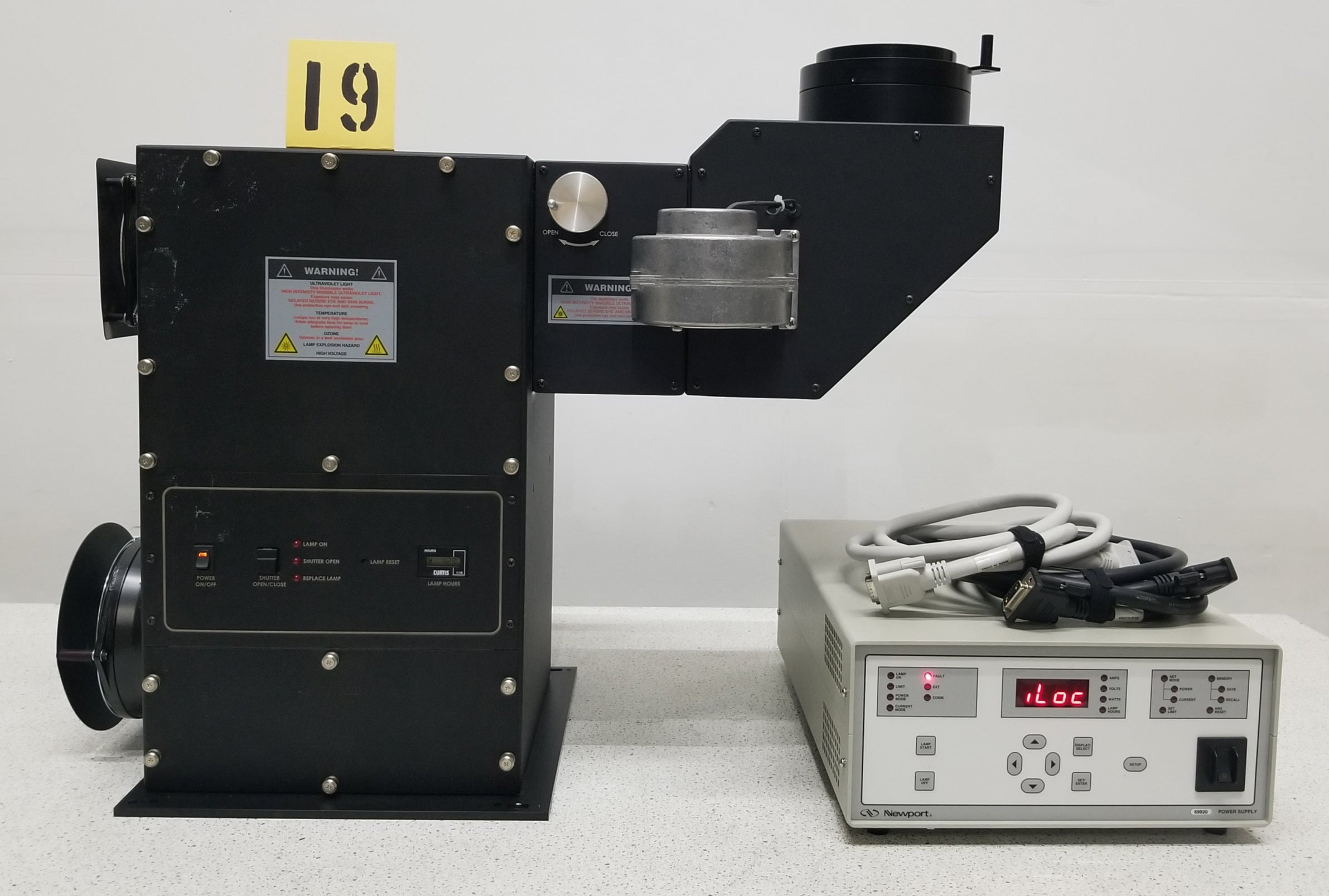

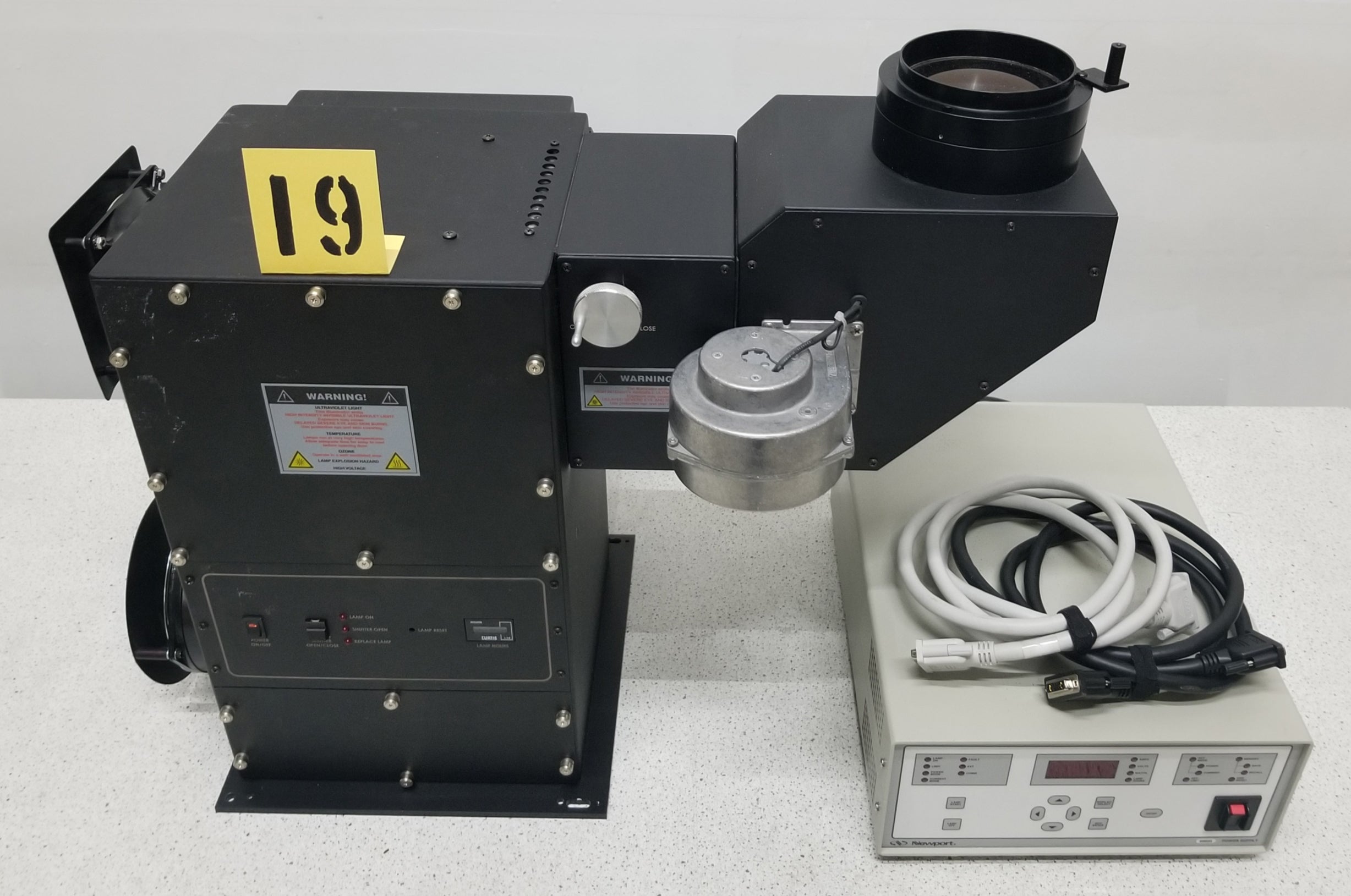

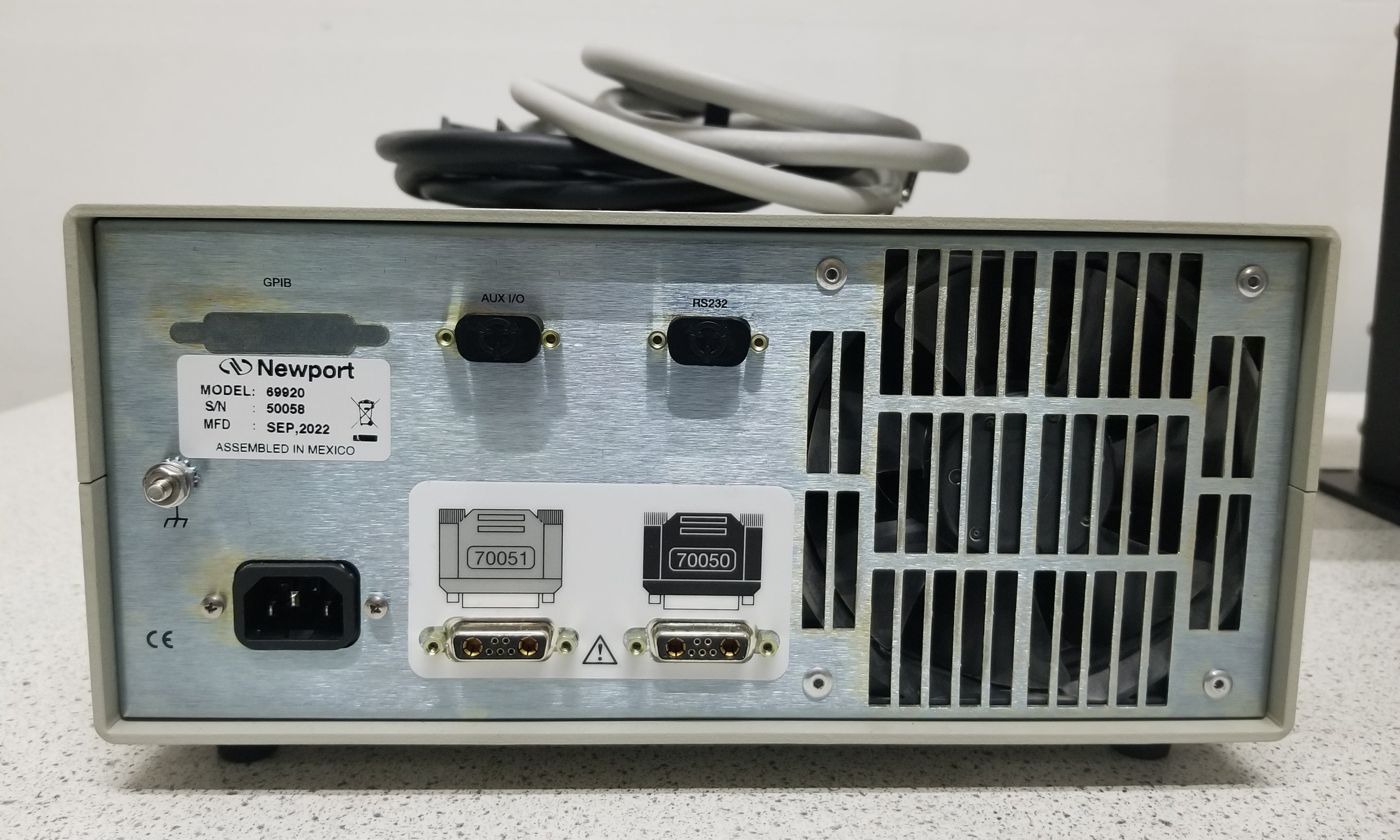

Model 94023A Solarsim unit with 69920 power supply manufactured Sept. 2022.

4” diameter exposer lens can mount facing up or down. All Oriel Sol3A simulators are certified to IEC 60904-9 Edition 2 (2007), JIS 8904-9 2017, and ASTM E 927- 10 standards for Spectral Match, Non-Uniformity of Irradiance, and Temporal Instability of Irradiance. By convention, Class AAA is reported with the first letter representing Spectral performance, the second letter Uniformity of Irradiance, and the third letter Temporal Stability.

The Oriel Sol3A Solar Simulator source is a CW system. This enables testing of all cell materials unlike flash-lamp based systems that are limited by the response time of the material allowing the cell to be soaked at a constant light level prior to testing. The lamp type used in all simulators is an ozone-free xenon short arc lamp.

Illumination Area 2x2 inch (51x51mm), Typical Power Output 100mW/cm2 (1 SUN) ±20% Adjustable, Nominal Working Distance 12 ±0.5 in., Nominal Lamp Electric Power 450 W,

110/220V, 50/60Hz
