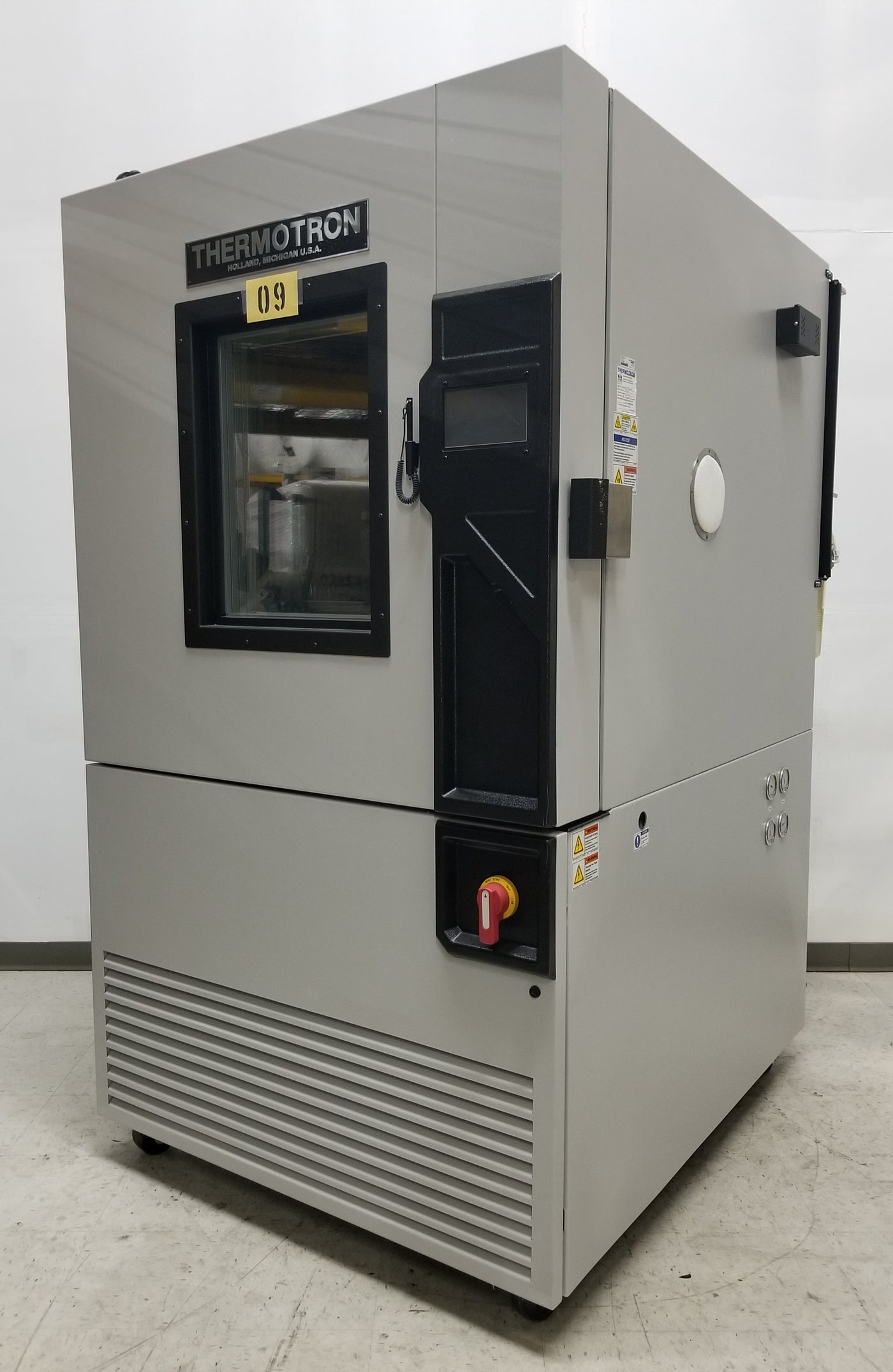

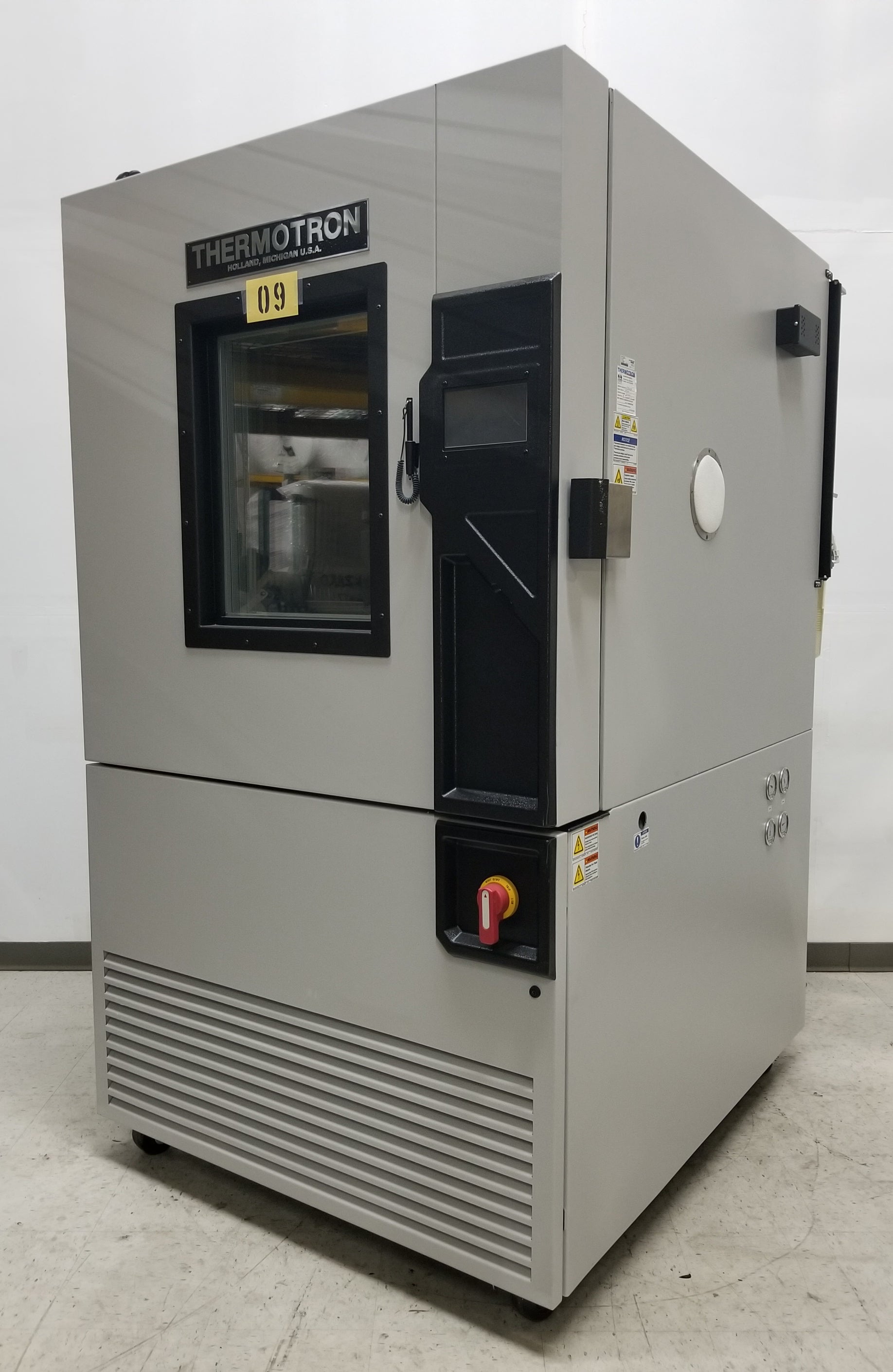

Thermotron SM-27-2-2-8200 Temperature Humidity Chamber

The Thermotron SM‑27 is an environmental test chamber designed for temperature and humidity conditioning of larger components and assemblies. It operates across a temperature range down to −70 °C and up to 180 °C with controlled humidity for combined environmental testing. The chamber provides consistent performance within a 27 cu ft workspace for durability and screening applications. Integrated controls support stable operation during programmed test profile.

The controller’s software and hardware are designed by Thermotron engineers, specifically for programming and controlling environmental chambers. Operation and data collection are easy with a 7-inch color touchscreen display and familiar Windows® look and feel. Test data can be exported securely, quickly, and easily with a USB port. Built-in ethernet capabilities give the 8200+ Controller network-wide accessibility. Date of MFG 2021.



Workspace Dimensions—WxDxH:

36 x 36 x 36 inches
91 x 91 x 91 centimeters

Workspace Volume:

27 ft³
764 L

Temperature Uniformity:

All Models 0.7°C (1.1°F)

Temperature Control Tolerance:

All Models 0.3°C (0.5°F)

Approx. Shipping Weight:

1,975 lbs
896 kg

Move-In Dimensions—WxDxH:

51 x 65 x 88 inches
130 x 165 x 224 centimeters

Humidity Range:

-68°C to 180°C (-90°F to 356°F)

Heating Performance in Minutes -65º to 71ºC:

28

Heating Performance in Minutes -65º to 180ºC:

68

Heating Performance in Minutes -40º to 85ºC:

25

Electrical Requirements in Full Load Amps 230 / 3 / 60:

35

Electrical Requirements in Full Load Amps 230 / 1 / 60:

49

Cooling Performance in Minutes 85º to -40ºC:

42

Cooling Performance in Minutes 71º to -65ºC:

64

Cooling Performance in Minutes 180º to -65ºC:

98

Compressor Size

2-2 Hp

System power 208V, 3Ph, 60Hz, 40A
