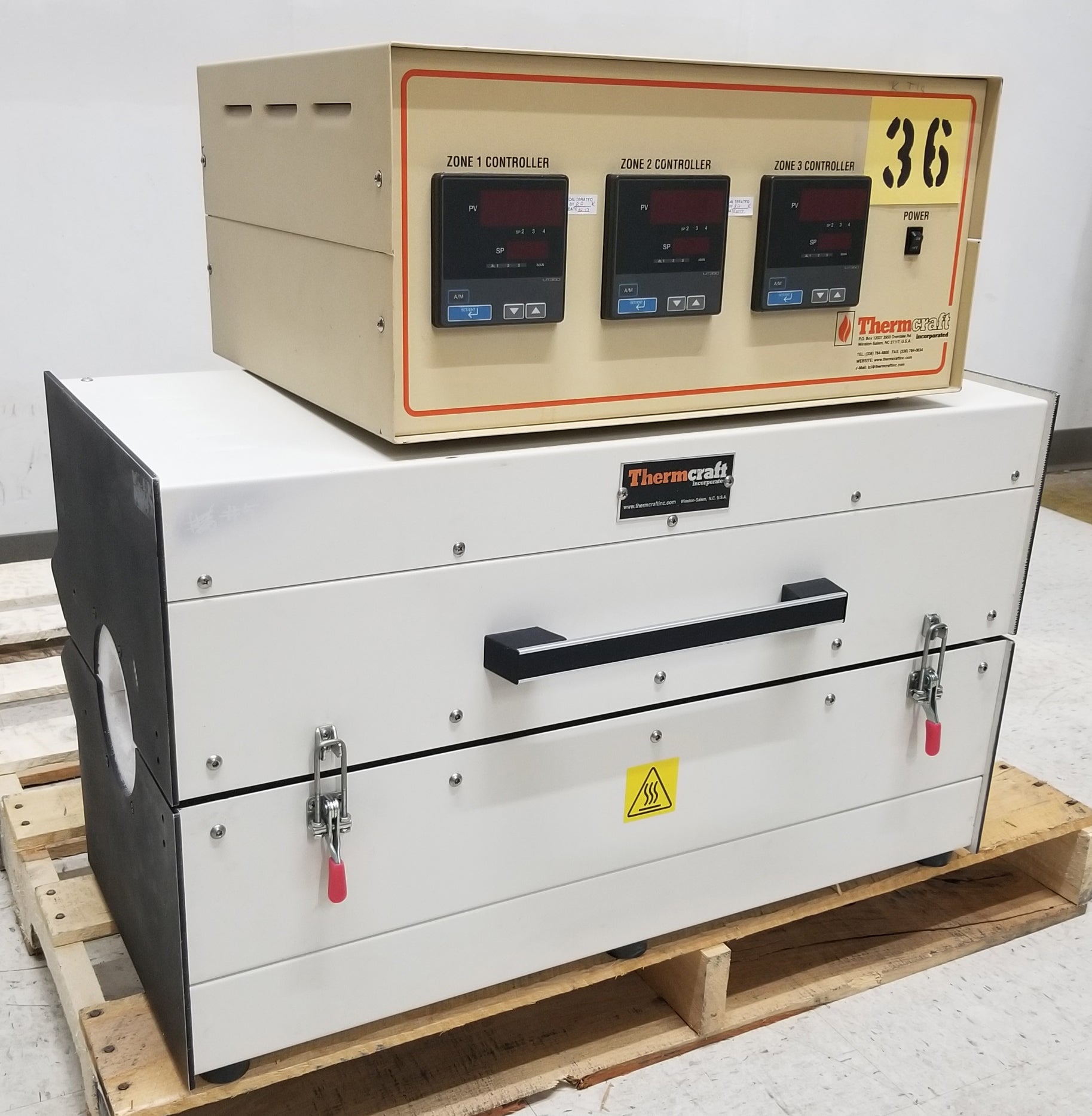

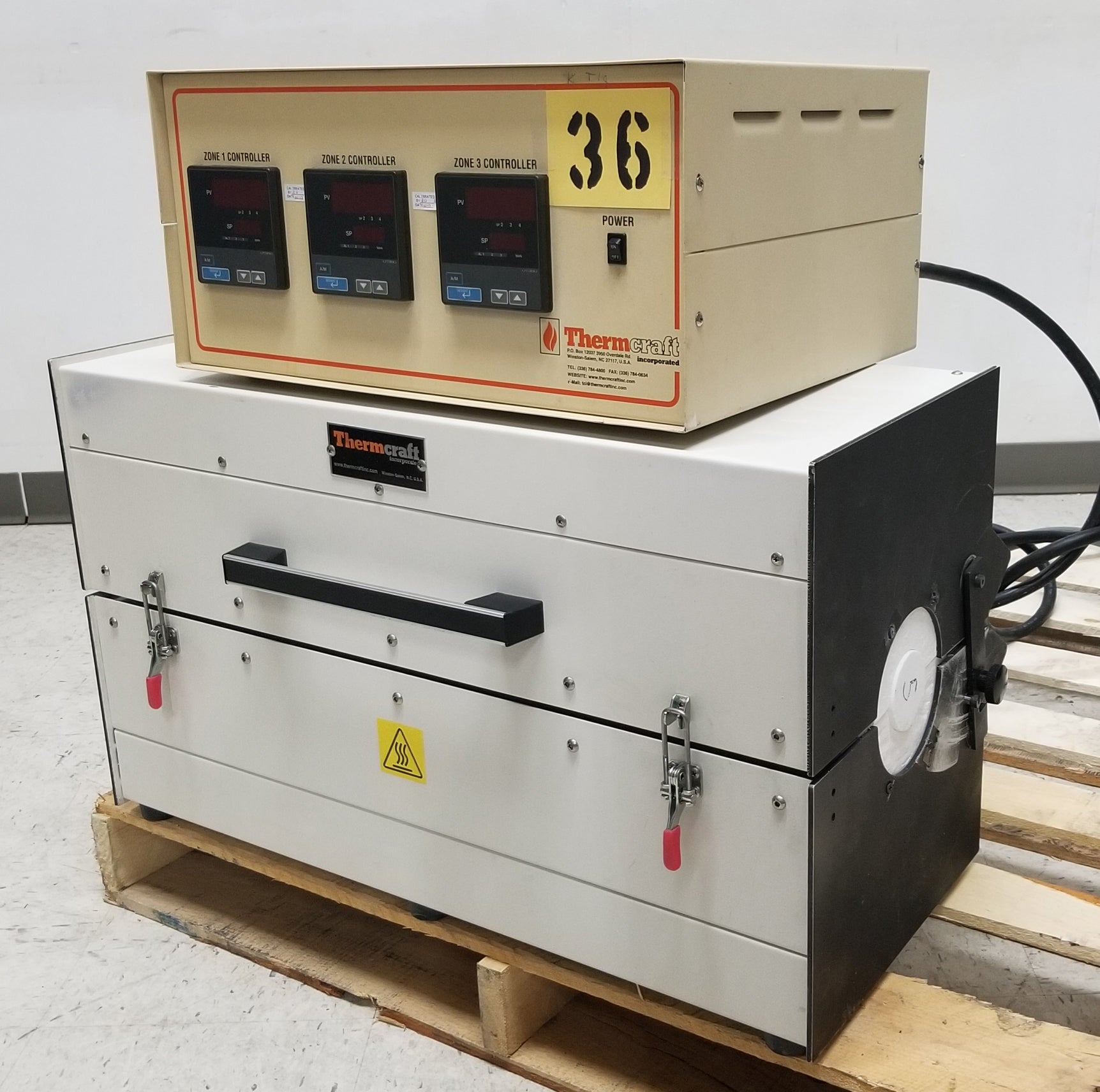

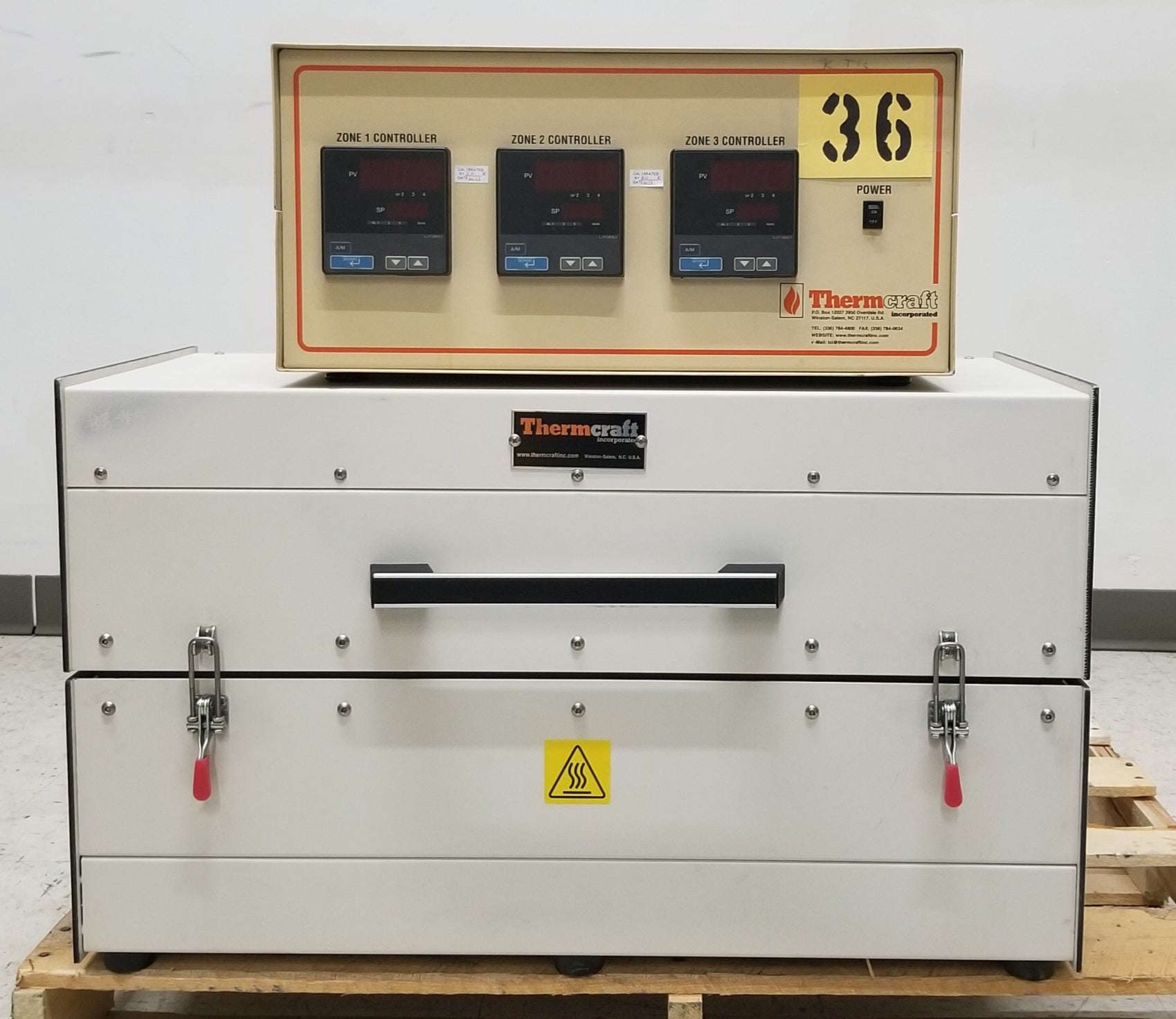

Thermcraft 1200°C 3-Zone Split Tube Furnace XST-3-0-24-3C

Thermcraft 1200°C 3-Zone Split Tube Furnace XST-3-0-24-3C

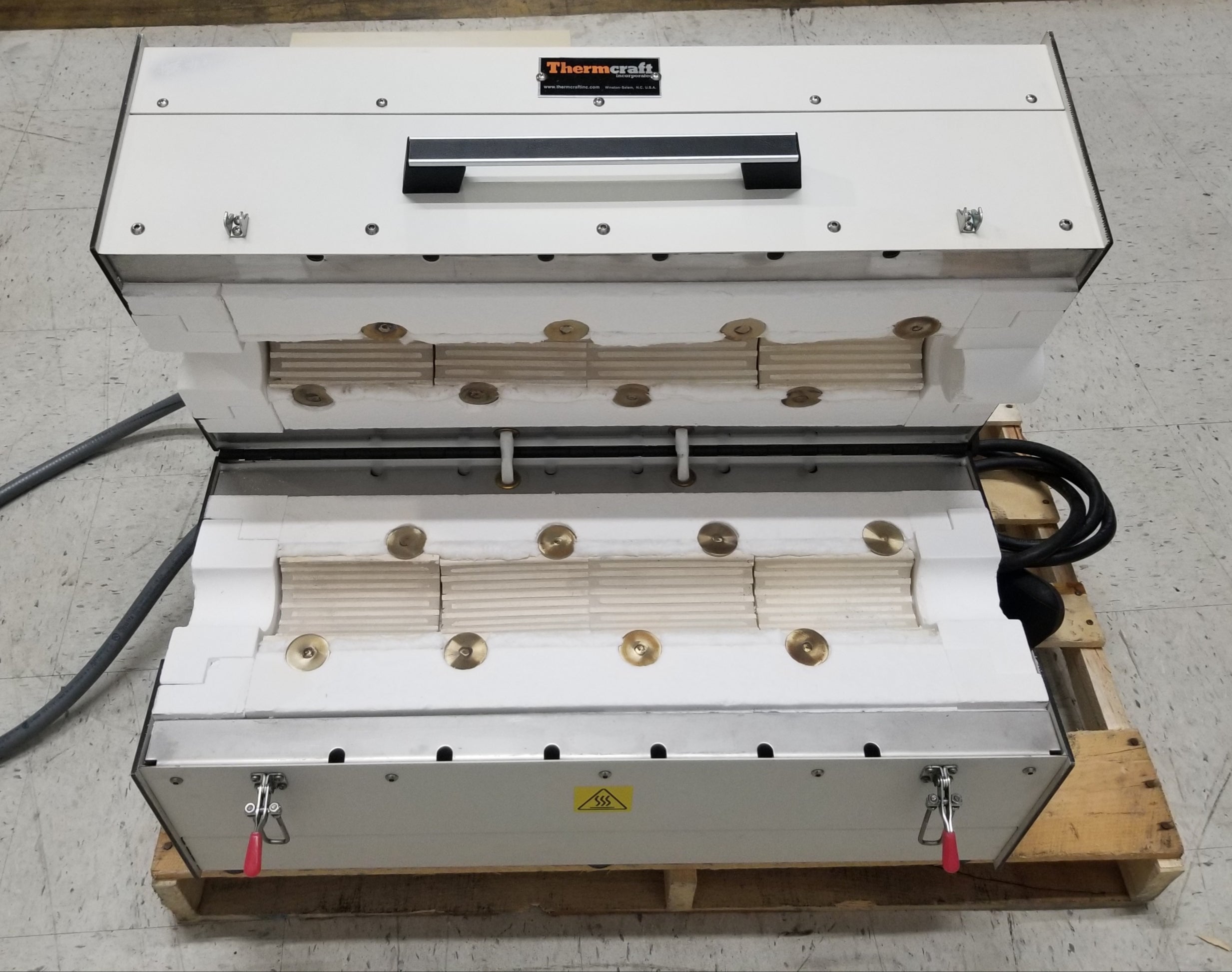

The XST split tube furnaces have a hinged body which is split along its length. This design allows for easy process tube changes and simple installation of process tubes with end seals attached. Three zones extend the uniform flat zone by independently controlling the end zones. 3 heated zones with a maximum 3” process tube and a heated length of 24”.

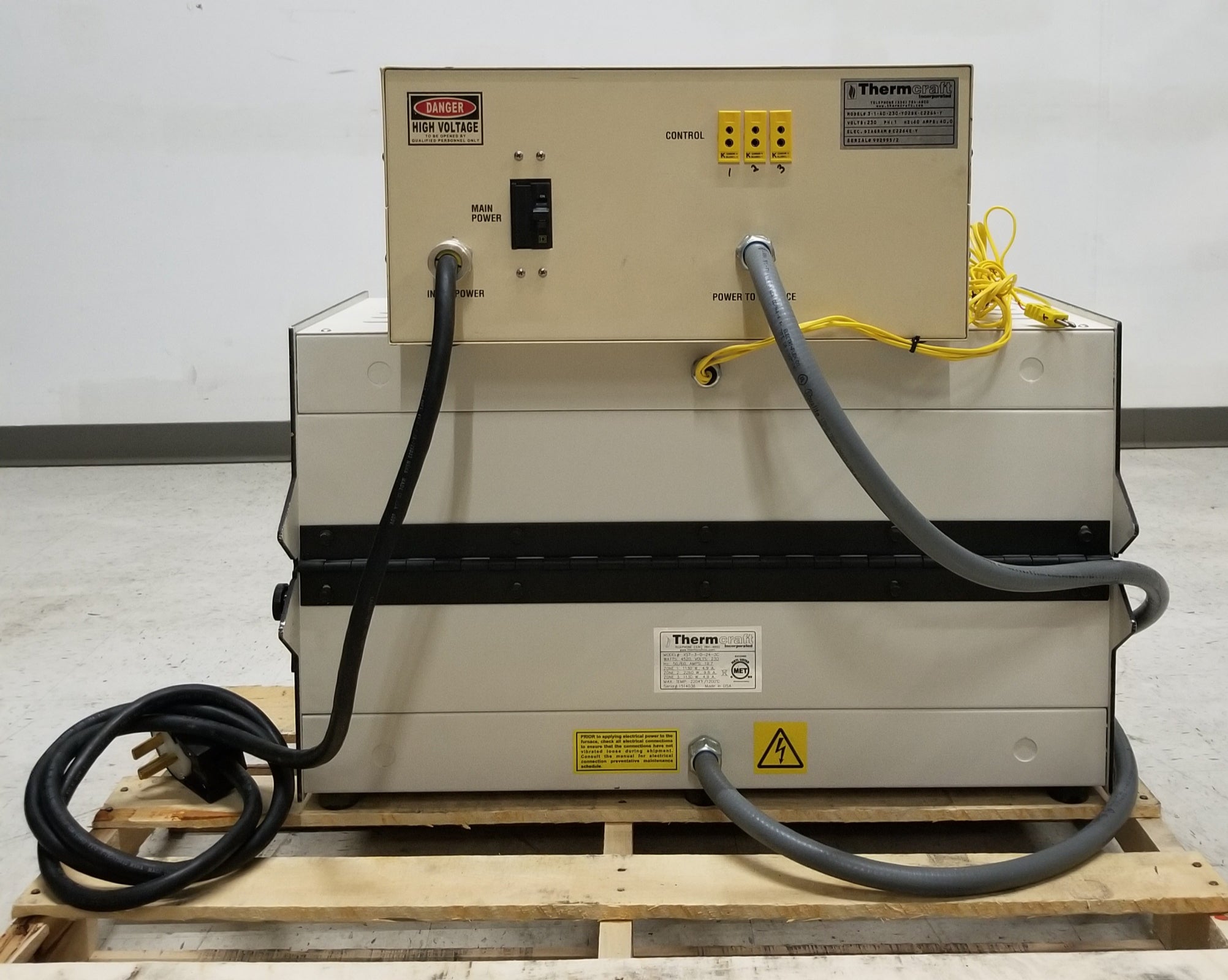

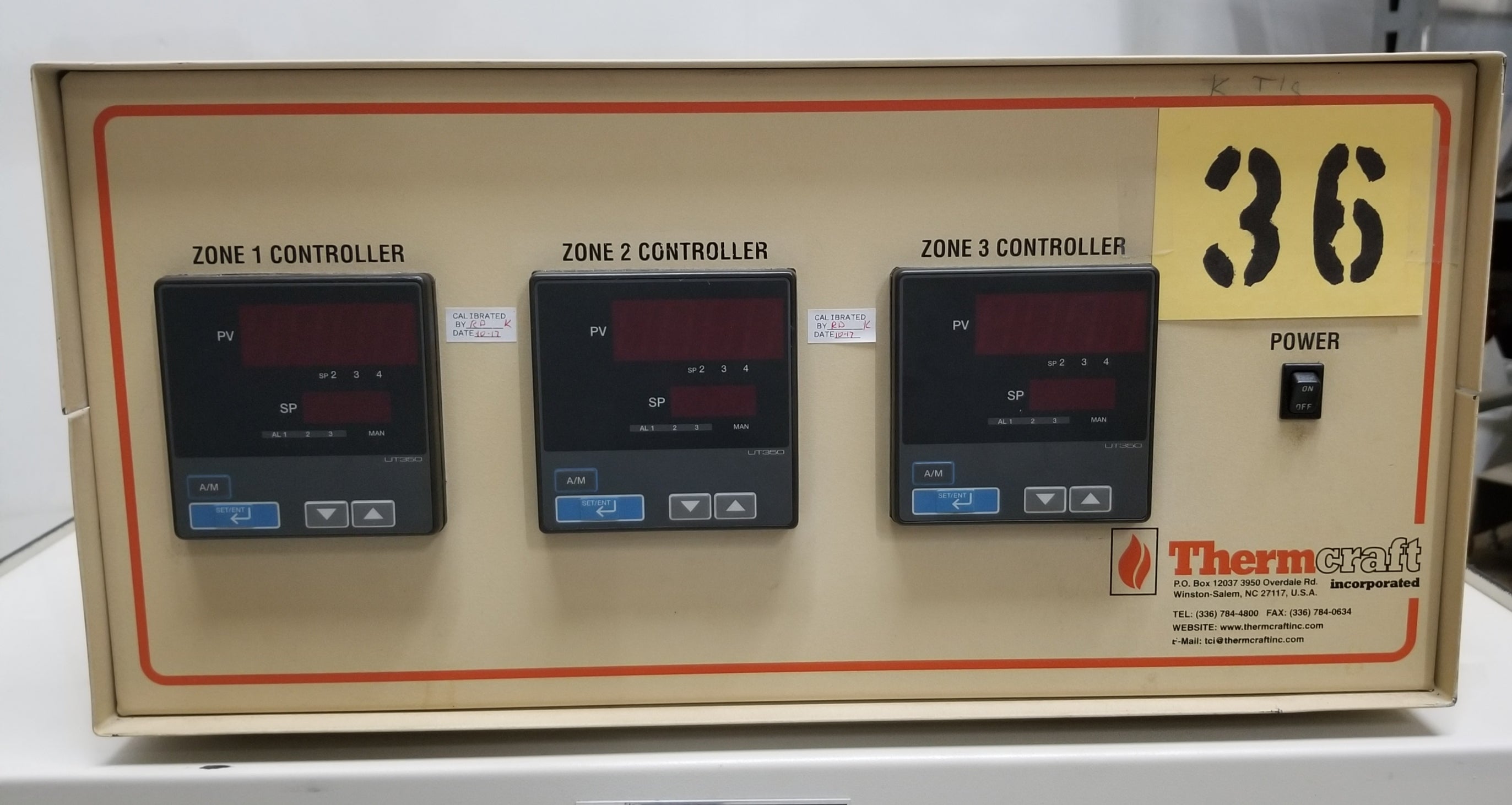

UT350 controllers for each of the three zones. These 1/4 DIN size PID controllers offer control of heated zones. 230V, 1Ph, 50/60Hz, 20A
