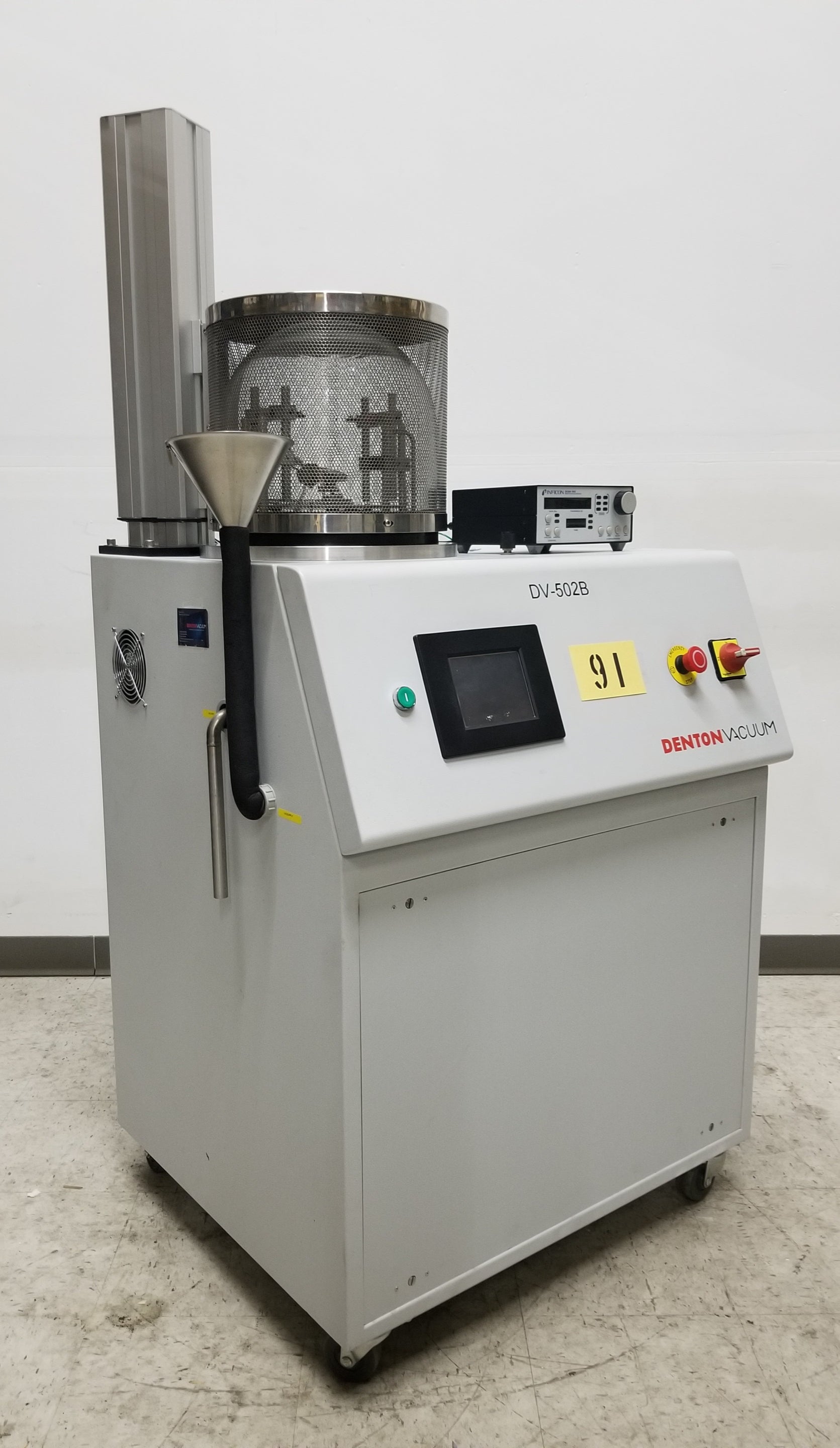

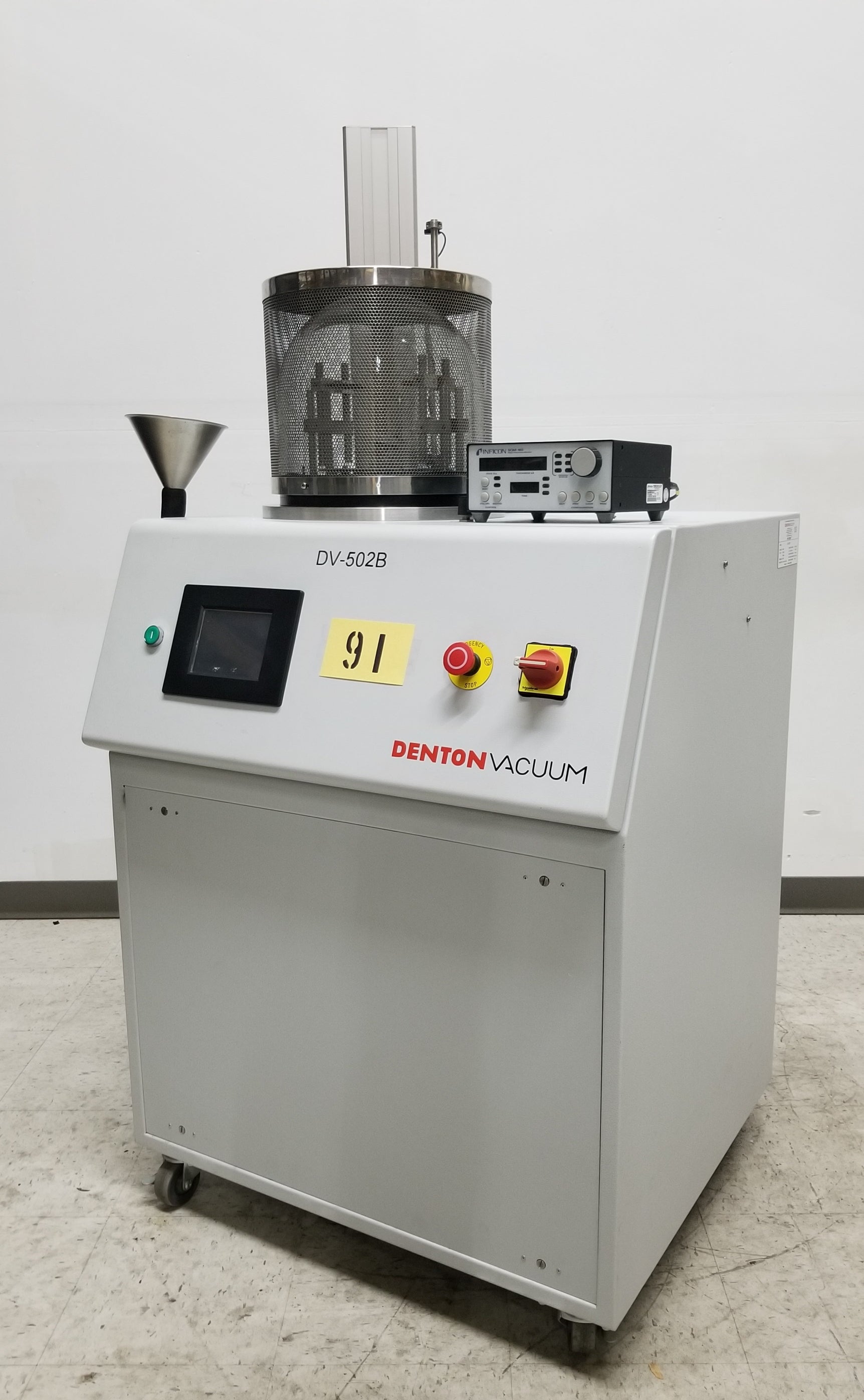

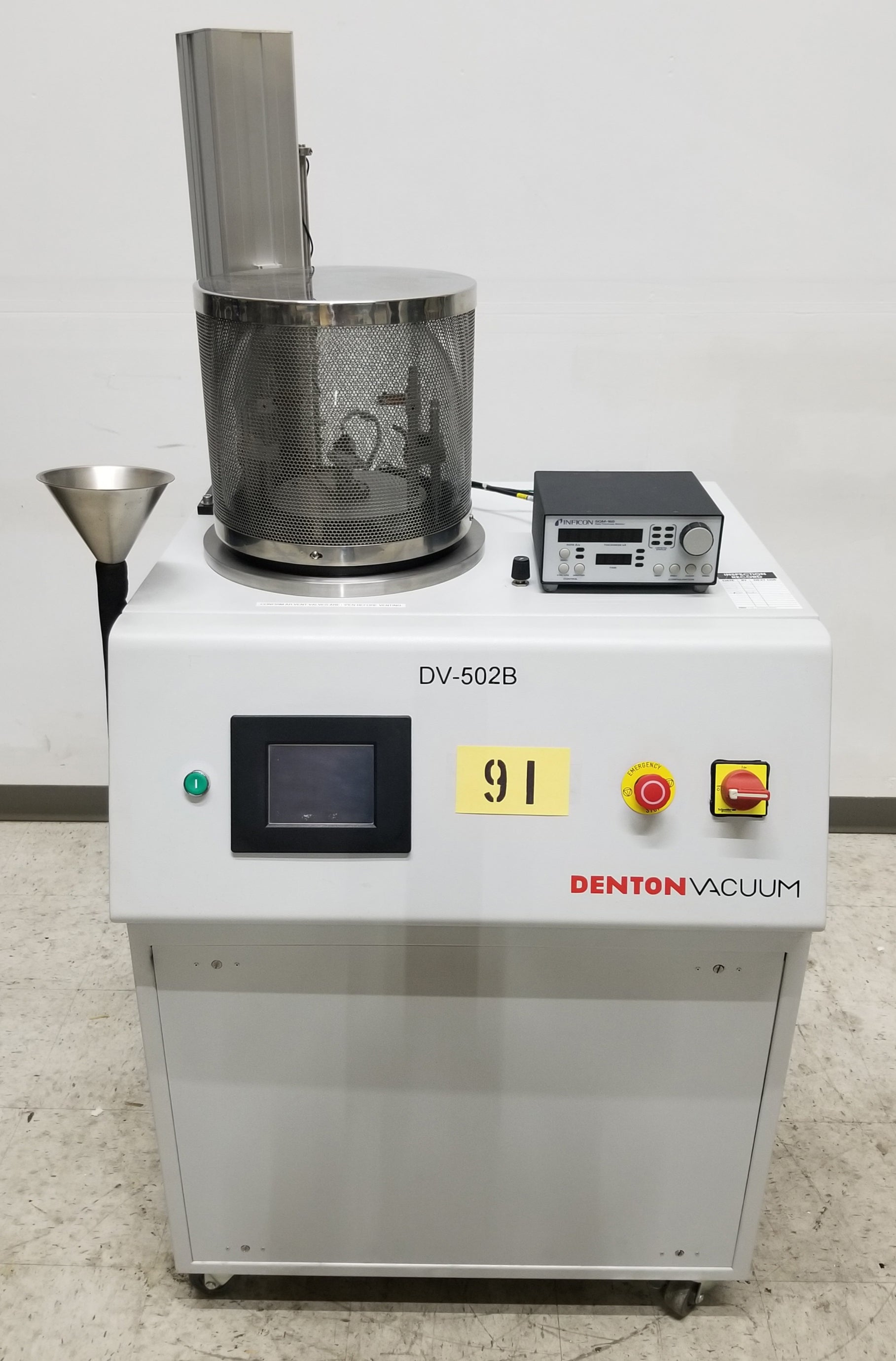

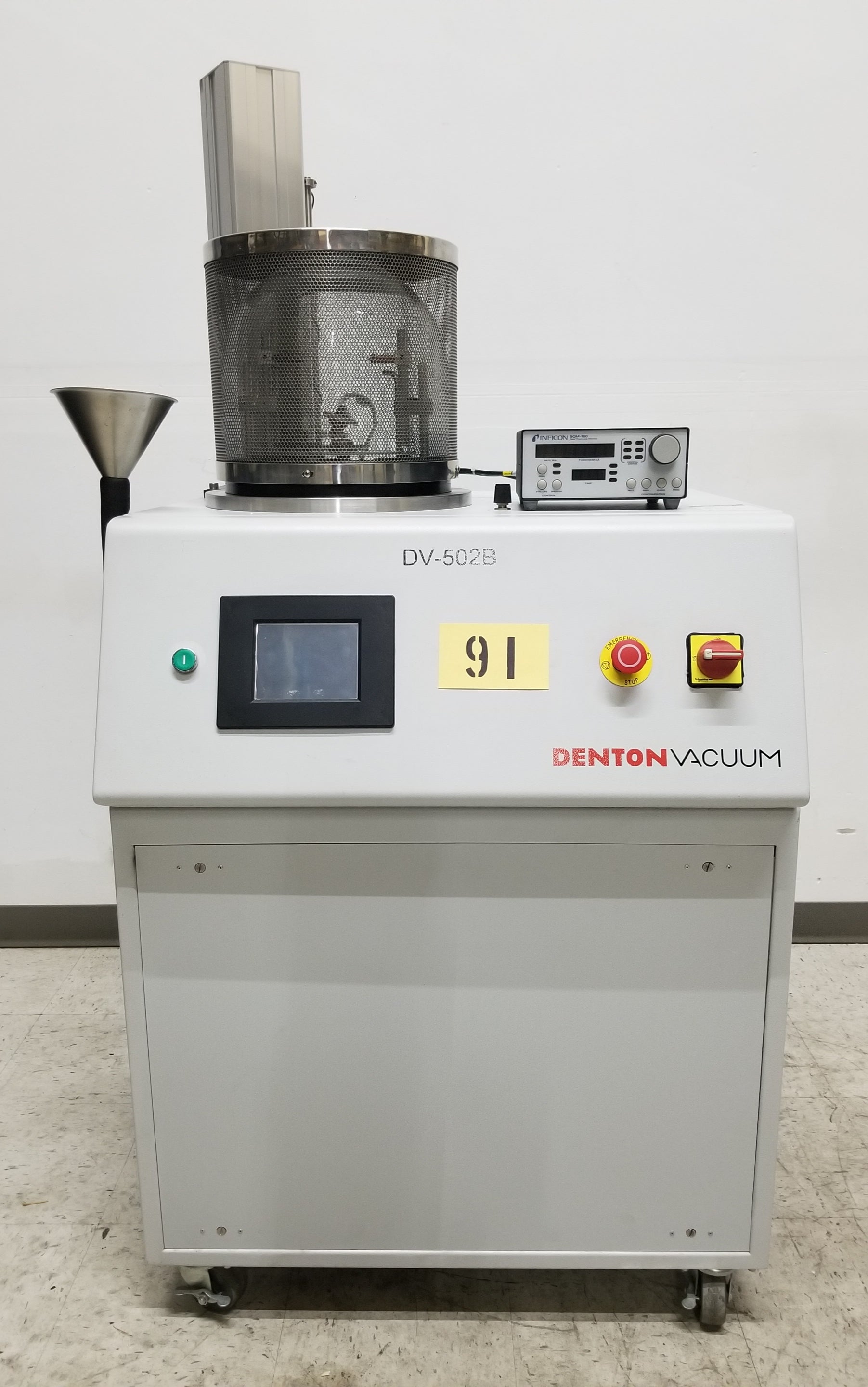

Denton Vacuum DV-502B Dual Source Thermal Evaporator

Denton Vacuum DV-502B Dual Source Thermal Evaporator

The DV-502B will reach 10 -4 Torr in a clean and outgassed system within 3 minutes, and 2 x 10 -5 Torr within 4 minutes in the standard 12 dia. X 12 high bell jar. No discernible contamination is produced in preparing specimens for electron microscopy. System configured with 2 wire basket thermal sources.

The 1 kVA evaporation power supply permits evaporation of most materials used in electron microscope specimen preparation including carbon, gold, gold palladium, platinum, etc., and can handle many of the evaporations required in various metalizing, optical coating and other applications. The DV-502B has sufficient pumping speed to handle all of the standard Denton accessories as well as larger bell jars up to 12 dia. X 18 high.

Standard Features

• 12″ x 12″ Pyrex bell jar with guard
• 15″ diameter stainless steel baseplate
• 5.8 cfm mechanical pump
• 300 lps turbo pump
• Full range gauge

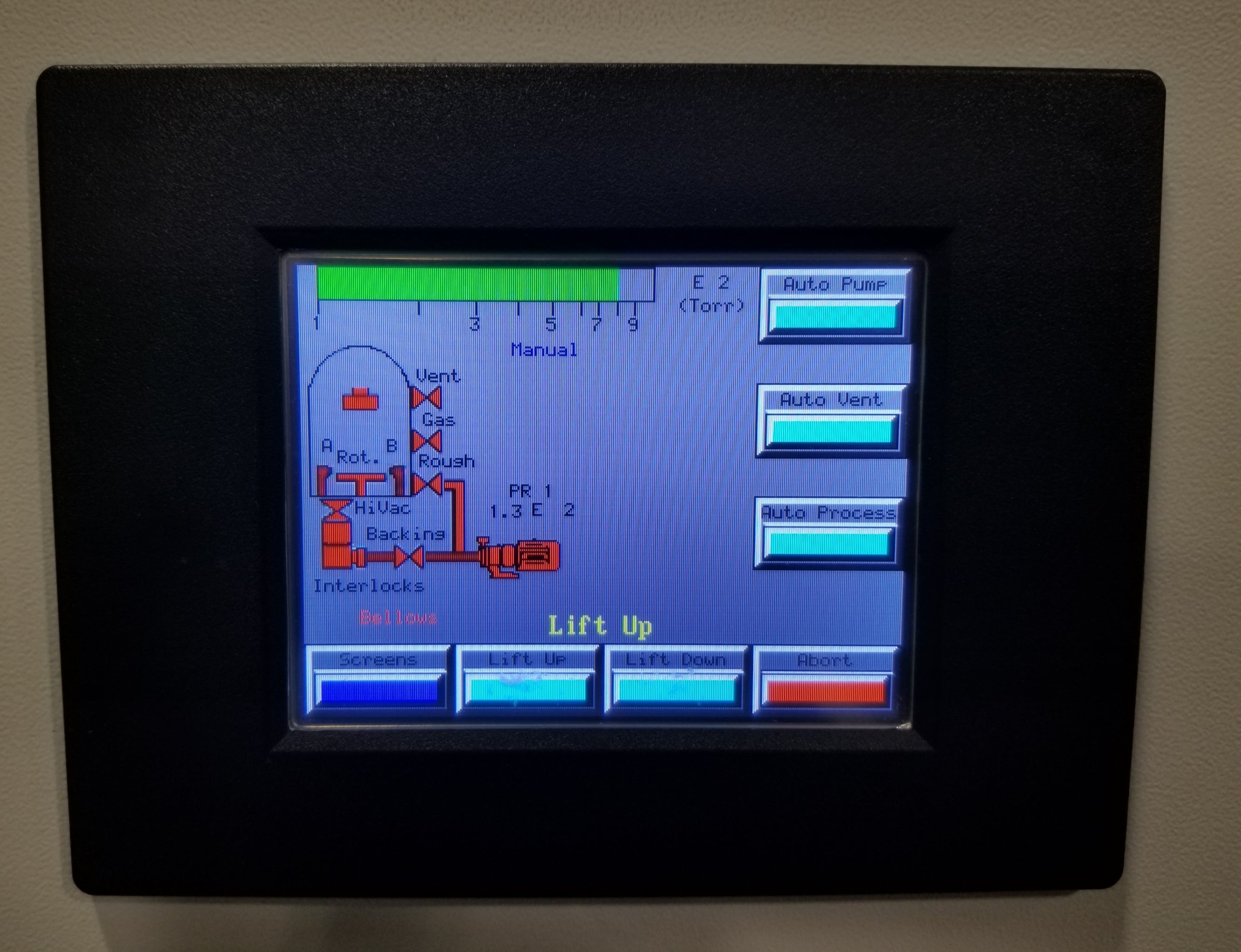

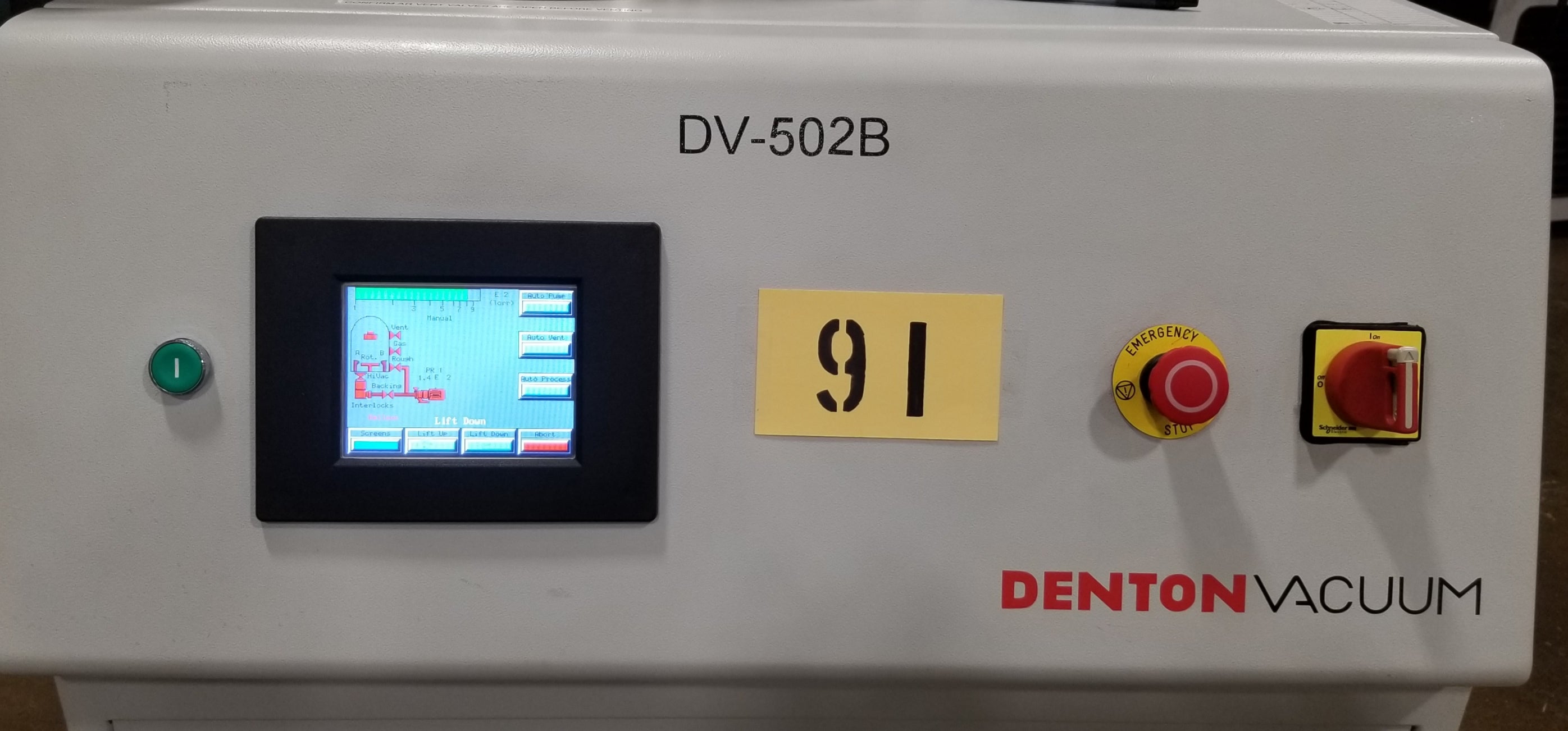

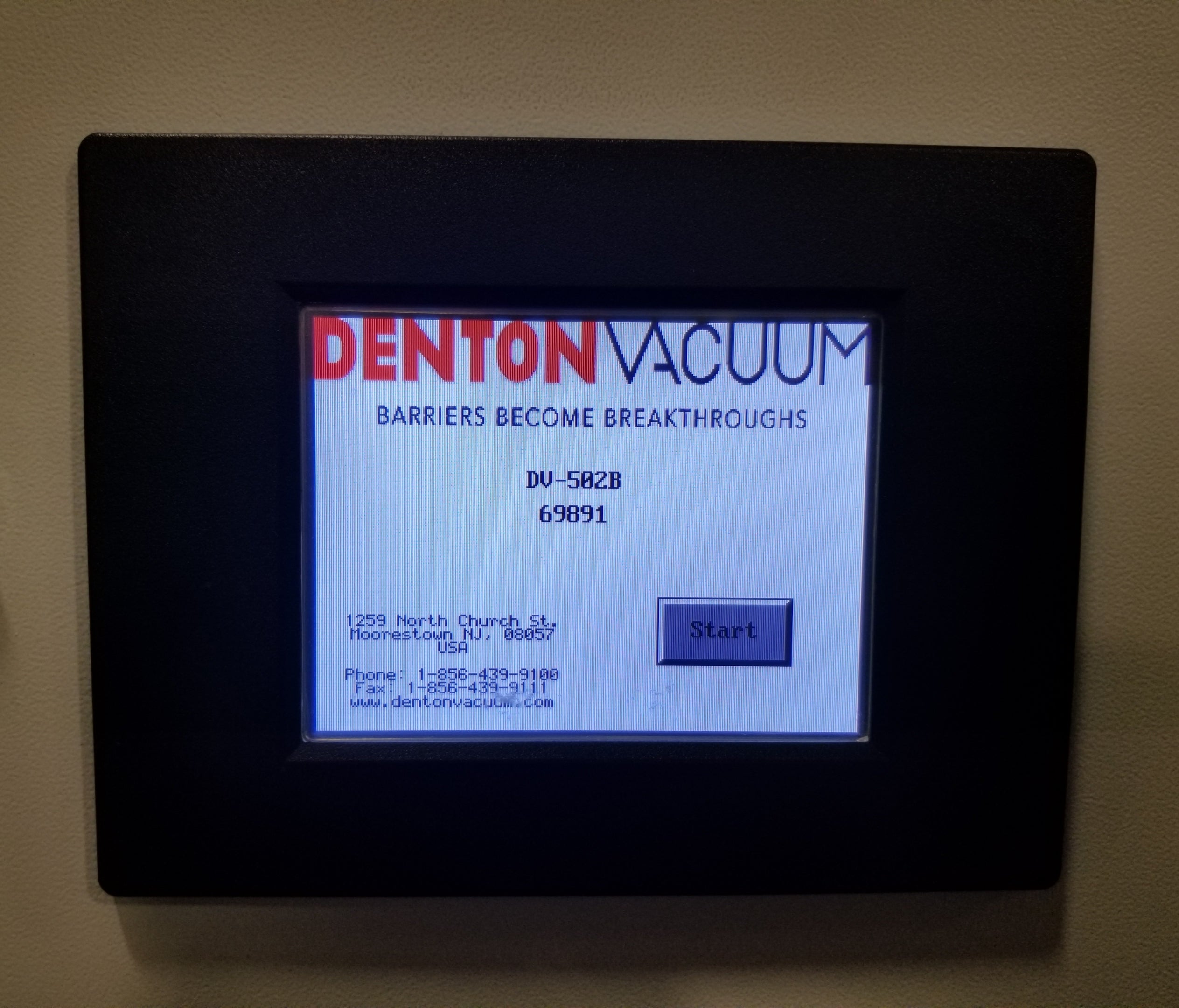

• Enhanced color touch screen control
• Clean high vacuum
• State-of-the-art components

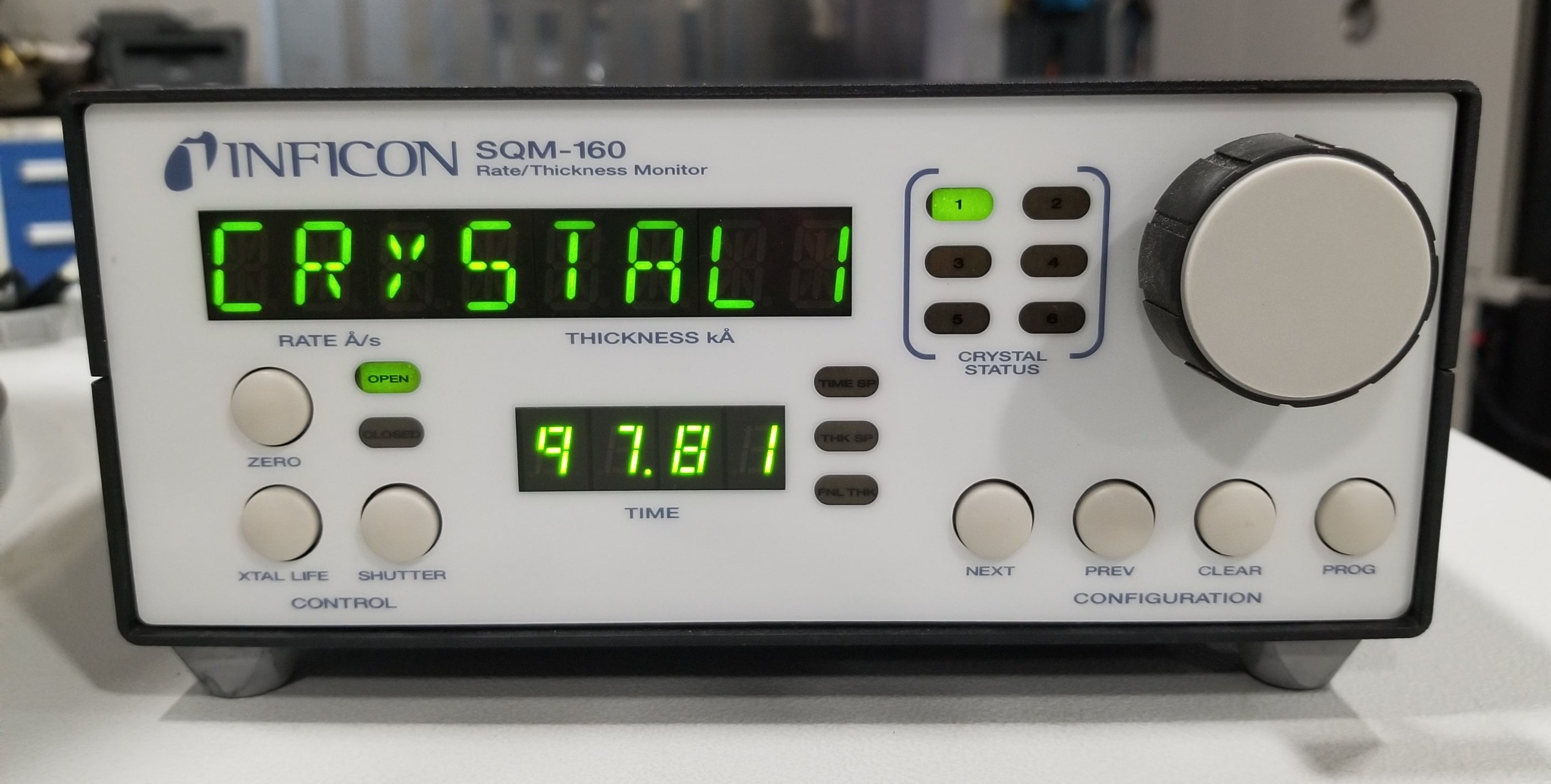

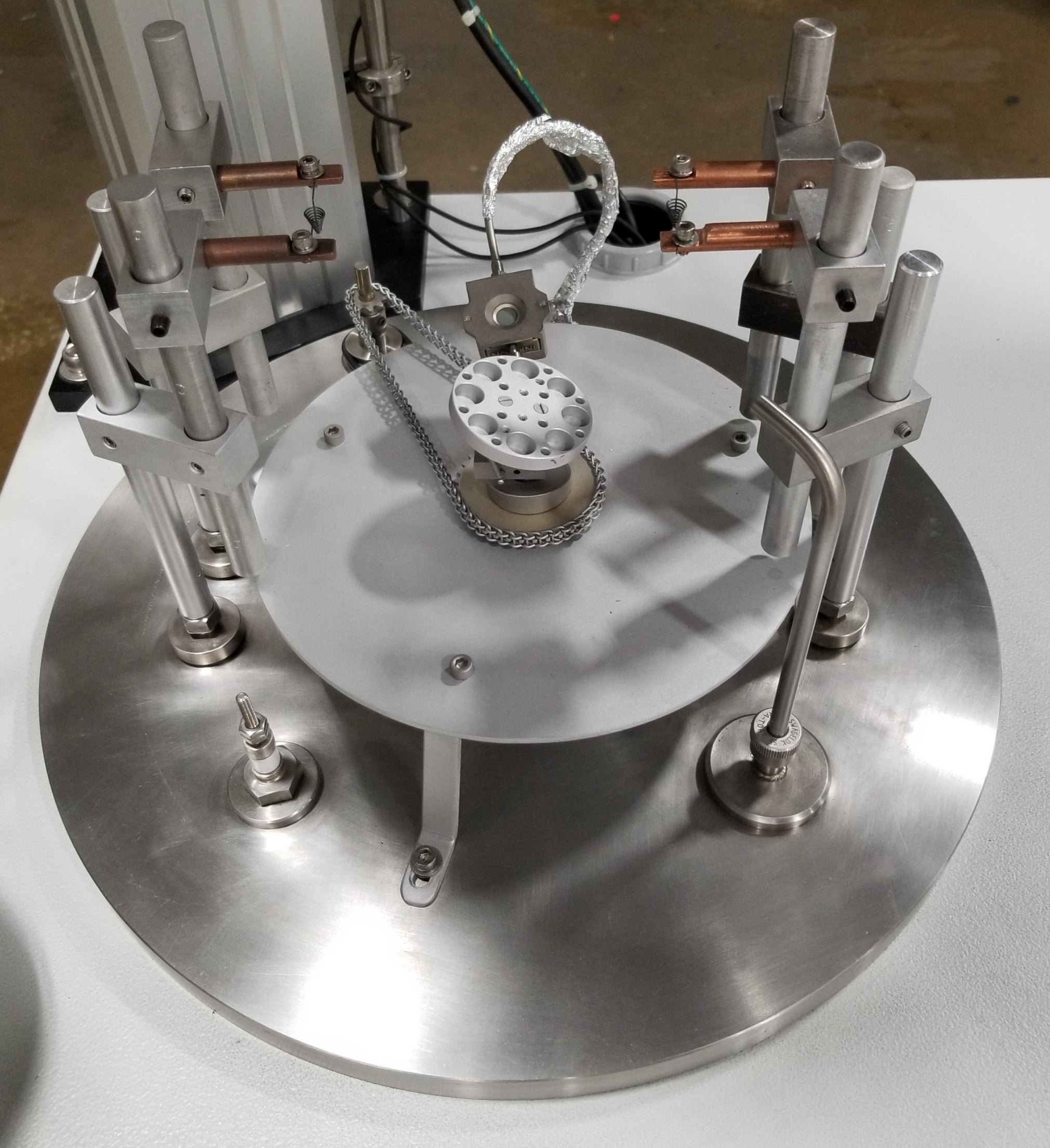

Includes optional Inficon crystal deposition rate monitor, electric bell jar hoist, sample rotation stage and second thermal source.

208V, 1Ph, 50/60Hz, 16A
