Used Denton Vacuum Desk V TSC Turbo Sputter Coater

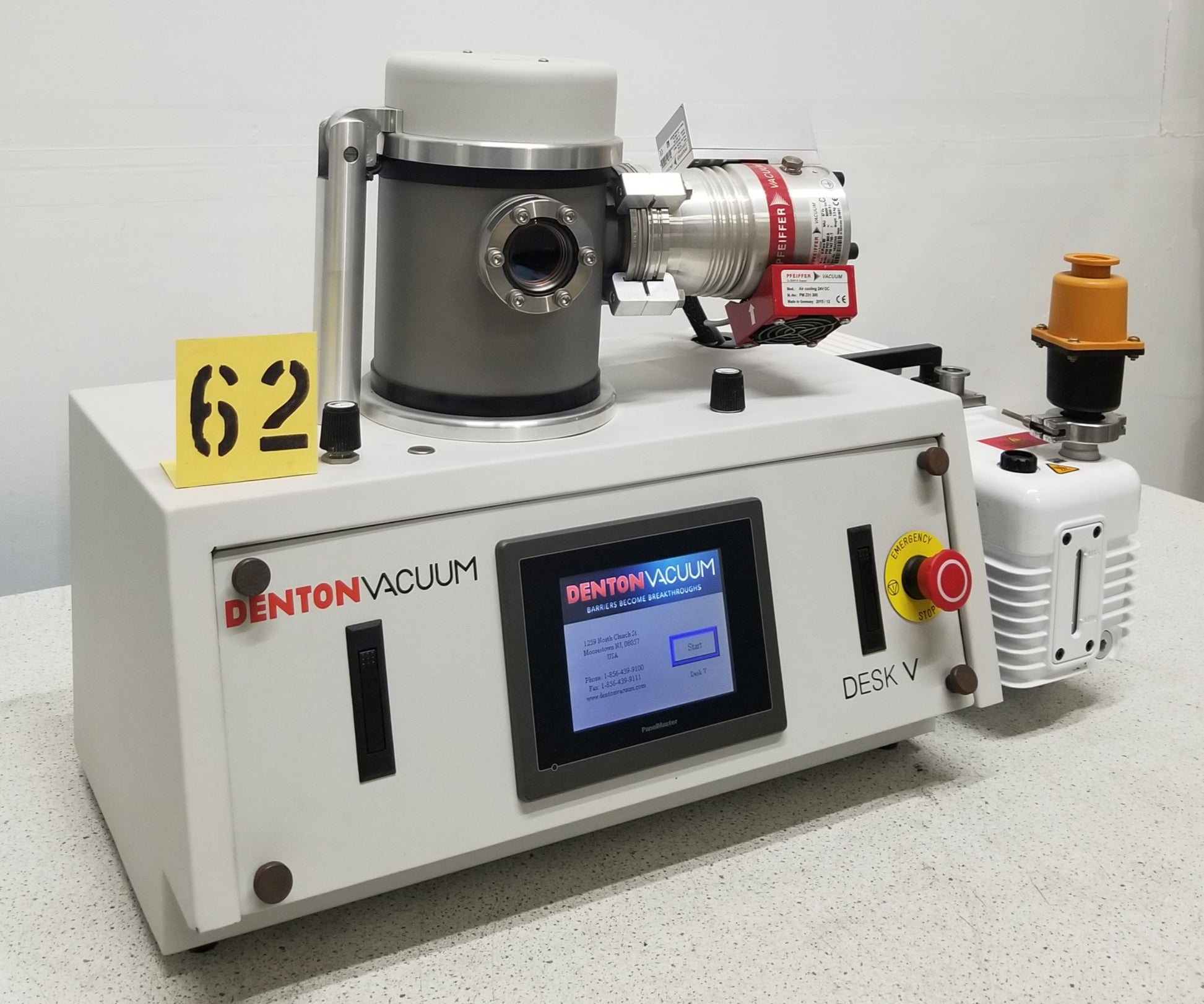

Denton Vacuum Desk V TSC Turbo Sputter Coater

The Denton Vacuum Desk V Turbo is a compact, benchtop sample preparation system designed for high-resolution scanning electron microscopy (SEM) and thin-film deposition. It utilizes both a mechanical pump and a turbo-molecular pump to achieve high vacuum levels, capable of metal sputtering (e.g., gold, gold/palladium, iridium).

The Desk V is plug and play and eliminates much of the learning curve for you. One press of your 7" touch-screen manages the system at every point—pumping to deposition to process control to venting. The Desk V’s new full-color touch-screen control provides intuitive and simple operation, including timed sputter and etch process set-points for power, pressure, duration and venting.

Key Features and Capabilities:

• Performance: Achieves high vacuum levels (5 x 10-6 torr) to ensure fine-grained, high-quality, and contamination-free coatings.
• Applications: Ideal for sputter coating for SEM, TEM specimen preparation, and electron microscopy.
• Flexibility: Supports interchangeable targets and is designed for uniform coating, including rotating and tilting capabilities for irregular surfaces.
• Operation: Features an integrated touchscreen control panel for automatic pumpdown, venting, and process monitoring.
• Materials: Suitable for sputtering a wide range of materials, including conductive metals and magnetic materials. DOES NOT COME WITH GOLD TARGET.
