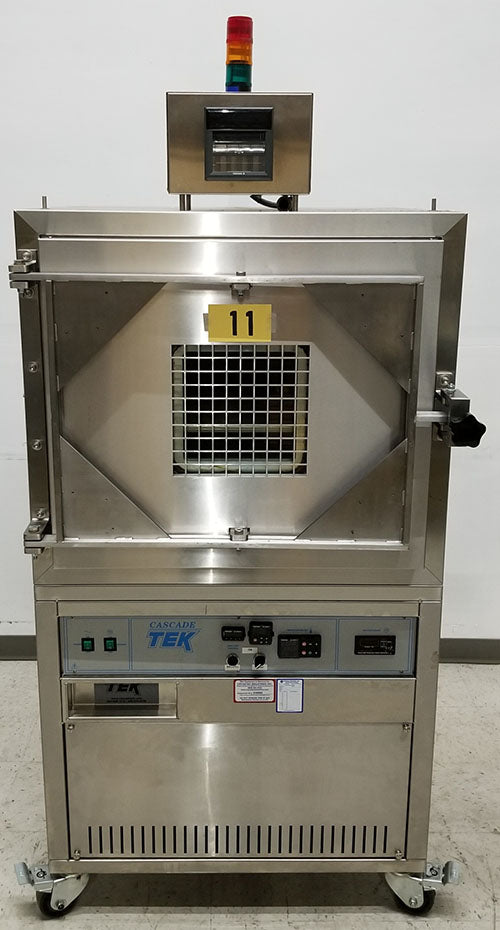

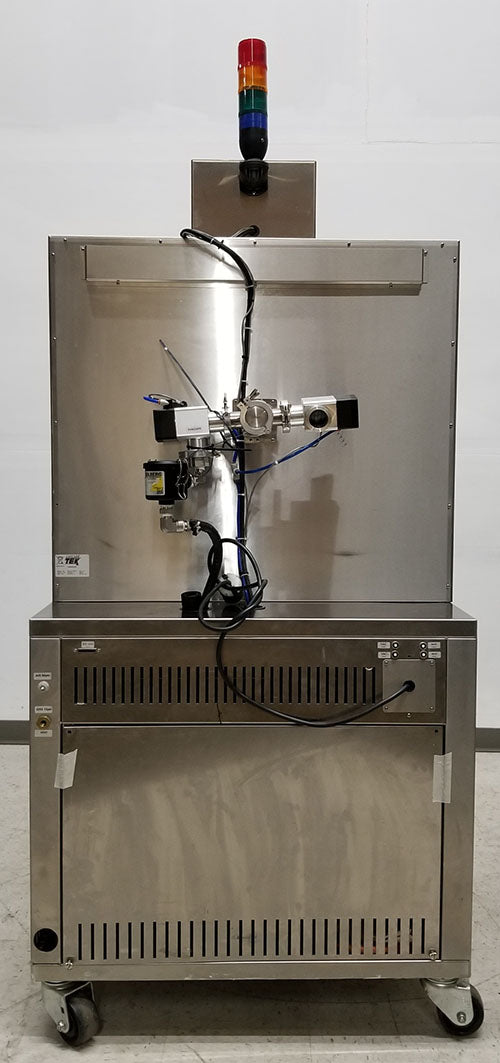

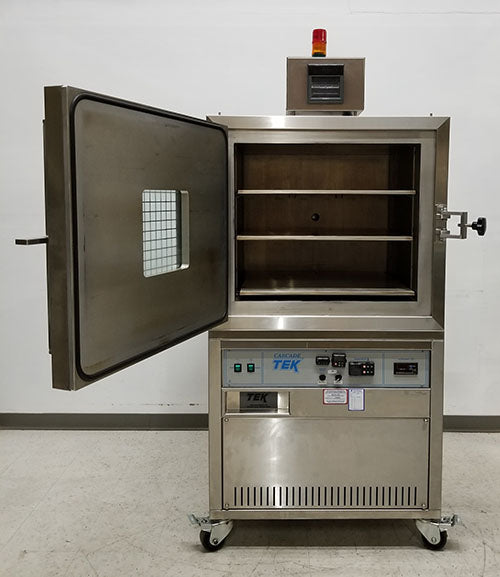

Cascade Tek SVO-9-ZZMFG Large Capacity Vacuum Oven With Vacuum Pump

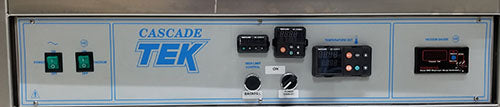

The SVO-9 features the Watlow 981 programmable “ramp and soak” controller. This versatile & powerful controller allows for the programming & saving of temperature profiles, or simple set-point operation. Vacuum levels are monitored via a precision digital gauge. Ready for
Operation
Model SVO-9
Chamber Capacity 9.0 Cubic Ft. (255 Cubic Liters)
Interior Dimensions W x D x H (cm) 28 x 24 x 24” (71 x 61 x 61)
Exterior Dimensions W x D x H (cm) 36.25 x 45 x 62” (92 x 114 x 158)
Temperature Range Ambient +5° C to 260° C
Temperature Uniformity +/- 7° C
Heat Up Time to 150° C 70 Minutes
Heat Up Time to 300° C 150 Minutes
Vacuum Level Tested to < 10 Microns at 150° C
(Vacuum Pump Dependent)
Vacuum Pump included.
Configurations
Vacuum Gauge Vacuum Transducer with Digital Vacuum
Gauge
Vacuum Seals & Gasket Material Viton
Vacuum Fittings Standard KF
Temperature Controller Watlow Model 981 - Ramp & Soak
Programmable. Independent Over temp.
Protection
Electrical Requirements 220V- 1Ph- 50/60HZ- 20A
