Used View Pinnacle 250

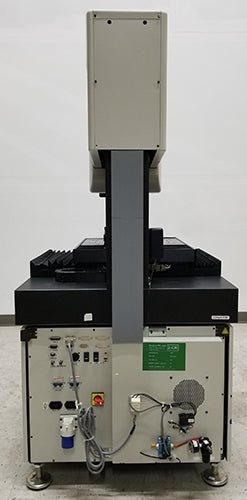

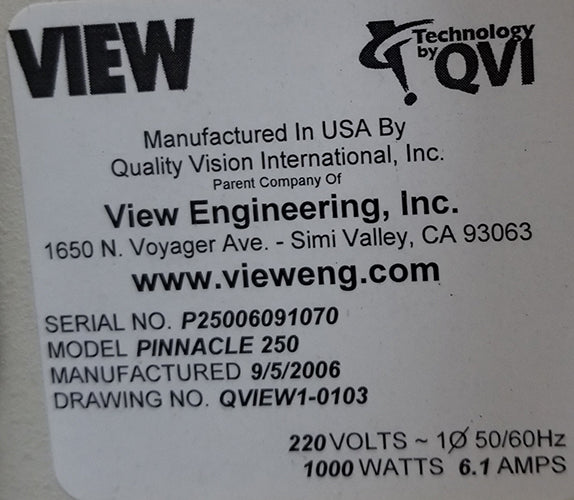

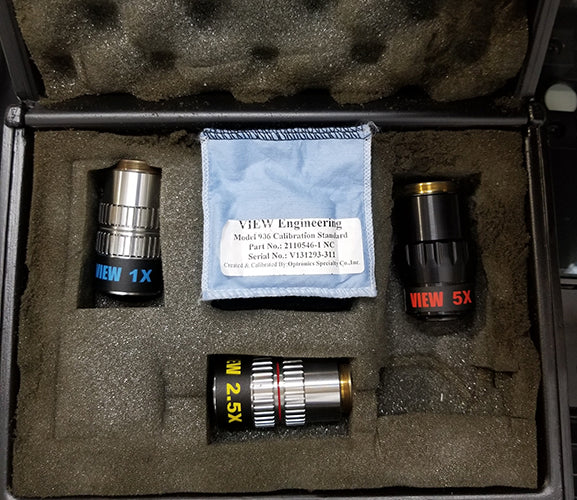

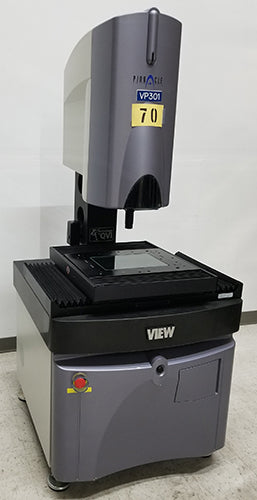

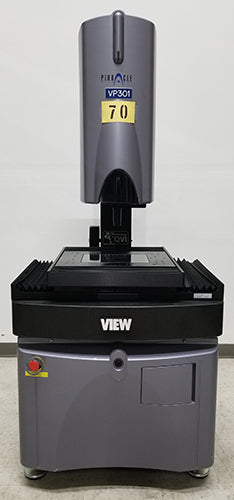

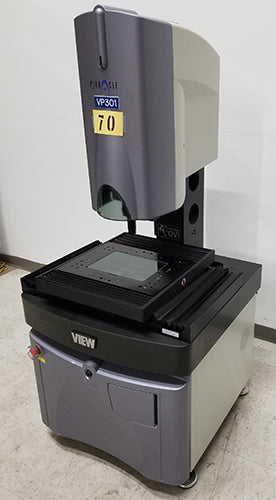

View Pinnacle 250 Video Measuring Tool. The Pinnacle features a damped granite base and column, with passive vibration isolation. A precision compound X-Y stage with high-speed linear motor drives provides velocity of 400 mm / sec and acceleration of 1000 mm / sec2. This combination of high acceleration and high velocity enables the high throughput required for near-line process monitoring. The rugged and compact design of the Pinnacle lends itself to installation in either a Q/A lab or at an inspection station in the manufacturing line. XYZ Travel 250 x 150 x 100 mm   Load Capacity 25 kg   Imaging Optics Single magnification, fixed lens optics with VIEW 1X back tube and VIEW 2.5X objective lens Dual magnification fixed lens optics with VIEW 2.5X objective lens. Optional Objective Lenses: 0.8X, 1 X, 5.0X, 10X, and 25X Metrology Camera Standard: 2.0 megapixel (1628 x 1236), digital, monochrome Color and other camera configurations are optionally available Illumination Standard: Programmable LED illumination system for coaxial through-the-lens surface light, below-the-stage backlight, and multicolor ring light with motorized incidence angle control   Measurement Modes High Speed Move and Measure (MAM) FEATURES   The Pinnacle is ideal for measurement of small, close tolerance parts, particularly parts with a high density of features, such as hard disk drive suspensions, printer heads, precision stampings, leadframes, ball-grid arrays, and chip scale packages.
