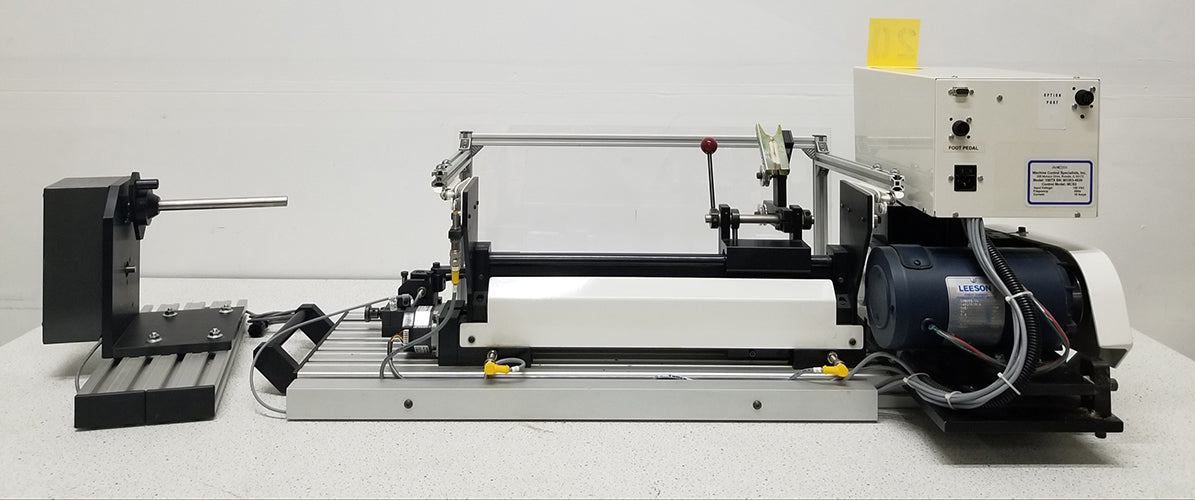

Used Machine Control Specialists 100TX

Machine Control Specialists 100TX Tabletop Coil Winder. Specifications   Machine Model: 100TXM   100TXS 100TXHD Max Wire Size: 18 Ga 12 Ga  14 Ga  Max Coil Diameter: 5" 5" 5" Output Shaft Diameter: 1/2" 1/2" 3/4" Max Traverse Distance: 12 3/4" 12 3/4" 12 3/4" Max Arbor Weigh w/ Coil: 3 Lbs 3 Lbs 15 Lbs Min. Distance Between Centers: 8" 8" 8" Max. Distance Between Centers: 18" 18" 18" Motor Equipment: 1/2 HP DC .72HP Brushless .72HP Brushless Motor RPM: 3500 5000 5000 Spindle Pulley Ratios: 1:2, 1:1, 2:1, 3:1, 4:1 Spindle Drive: Brushed Servo Brushless Servo Brushless Servo Max Spindle Speed: 15000 RPM 15000 RPM 5000 RPM Traverse Drive: Microstepper Brushless Servo Brushless Servo Tailstock Quill Diameter: 5/8" 5/8" 1" Tailstock Quill Travel: 1" 1" 1" Tailstock Quill Tooling: 60 degree 60 degree 60 degree Guard Operation: Manual Manual Manual Line Power (115 VAC 50/60 HZ): 8 AMPS 8 AMPS 8 AMPS Dimensions: 40" x 19" x 17" 40" x 19" x 17" 40" x 19" x 17"             Control Model MCS2 Control Type: Embedded - Freescale 32 bit Processors Display: 4 line x 40 Character Backlit LCD Input Keypad: 24 Key (1/2" Rubber Tactile Touch) Program Storage: 3500 lines / Complex and 10 Presets / Simple I/O Points: 8 in / 8 out (24 VDC) Programming Software: MCSCOM for Windows XP/7/8 GUI Interface: RS232 for PC Interface
