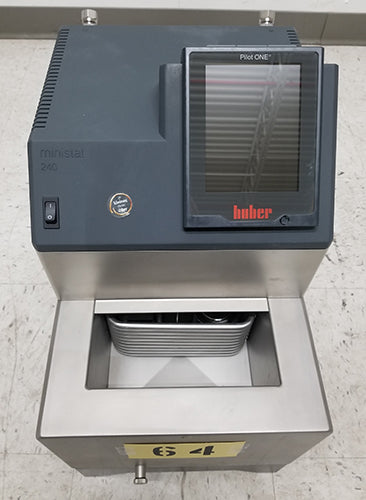

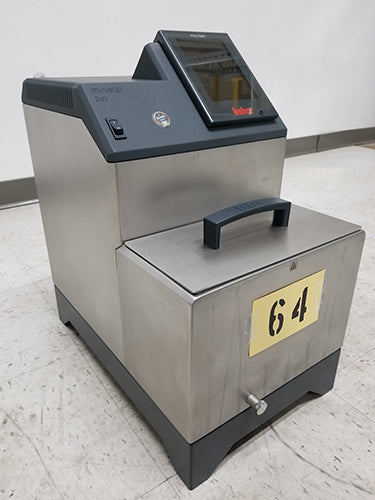

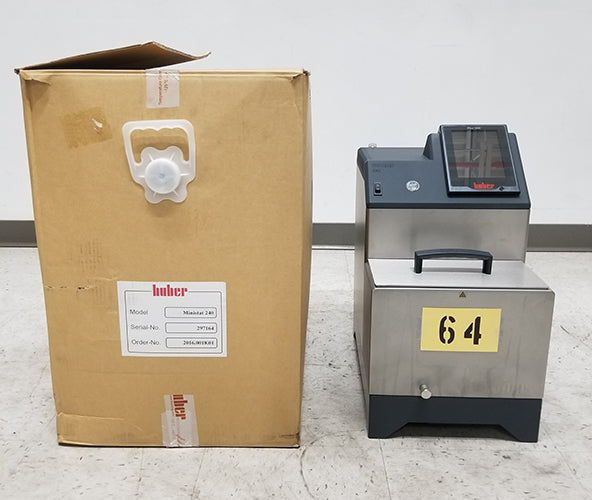

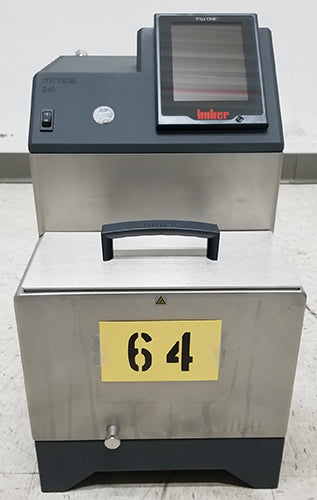

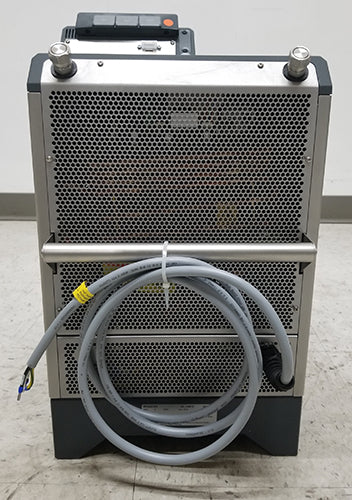

Used Huber Ministat 240

NEW! Huber Ministat 240 & Pilot One -45°C To +200°C Compact Cooling Bath Circulation Thermostat. Huber Ministats are the smallest cooling circulator in the world. Their small dimensions allow Ministats to be placed in the smallest of spaces, for example in a laboratory fume cupboard or inside technical plant. Despite their minimal size the systems are extensively fitted out and offer sufficient performance for temperature control of photometers, refractometers, viscometers, distillation apparatus, reaction vessels and mini-plants. The main applications are using external applications however the bath opening allows objects to be thermoregulated directly in a thermostat bath. A powerful pressure/suction pump with an infinitely controlled rotational speed ensures optimal circulation. The maximum pressure can also be regulated by an optional pressure sensor, meaning that sensitive glass reactors and apparatus can reliably be protected from breakage. Additionally, Ministats offer the Pilot ONE controller as standard with a colour TFT display and comfortable operator guidance. Analogue connections according to NAMUR are available via the optional Com.G@te module allowing Ministats to integrate into plant and process control systems. General information & temperature controller Temperature range  -45...200 °C Temperature stability ±0.02 °C Controller Pilot ONE  (E-grade "Basic") Safety class  III / FL   Protection class  IP20   Dimensions (W x D x H) 300 x 465 x 516 mm  |  11.81 x 18.31 x 20.31 inches Weight 44 kg  |  97.02 pounds Heating / cooling capacity Heating capacity  1,6 kW Cooling capacity 100 20 0 -10 -20 -40  °C 0,6 0,6 0,55 0,42 0,35 0,05  kW Cooling machine air-cooled   Refrigerant (ASHRAE, GHS) R290 (A3, H220) (0,099 kg) Circulation pump Pressure pump max.  22 lpm ; 0.7 bar  |  5.81 gpm ; 10.15 psi Suction pump max.  16 lpm ; 0.4 bar  |  4.23 gpm ; 5.8 psi Pump connection  M16x1 AG male   Permissible viscosity  50 mm²/s Pump speed adjustable Yes Connections Pt100 connection  Pt100   Digital interface  RS232, Ethernet, USB Device, USB Host
