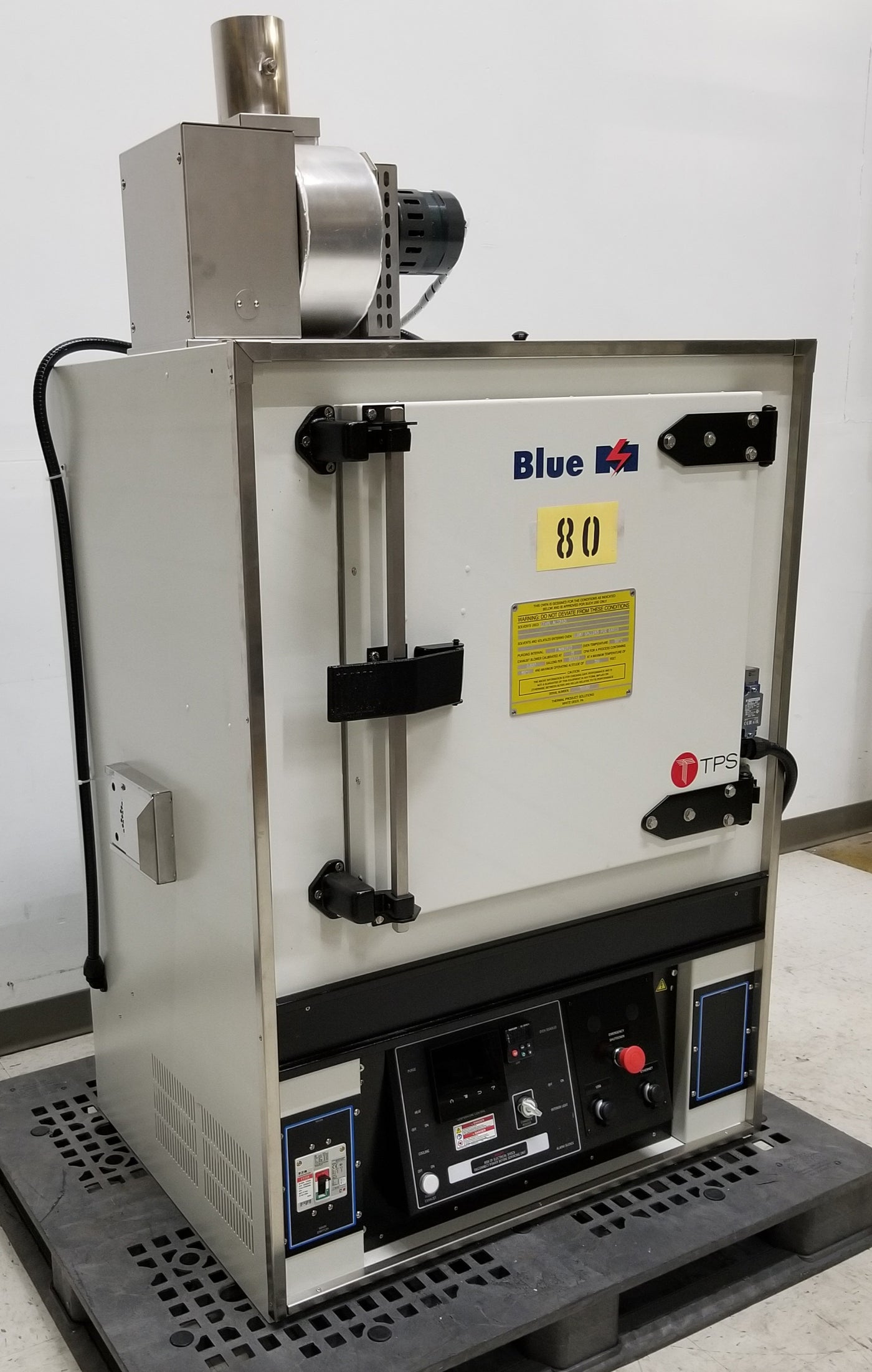

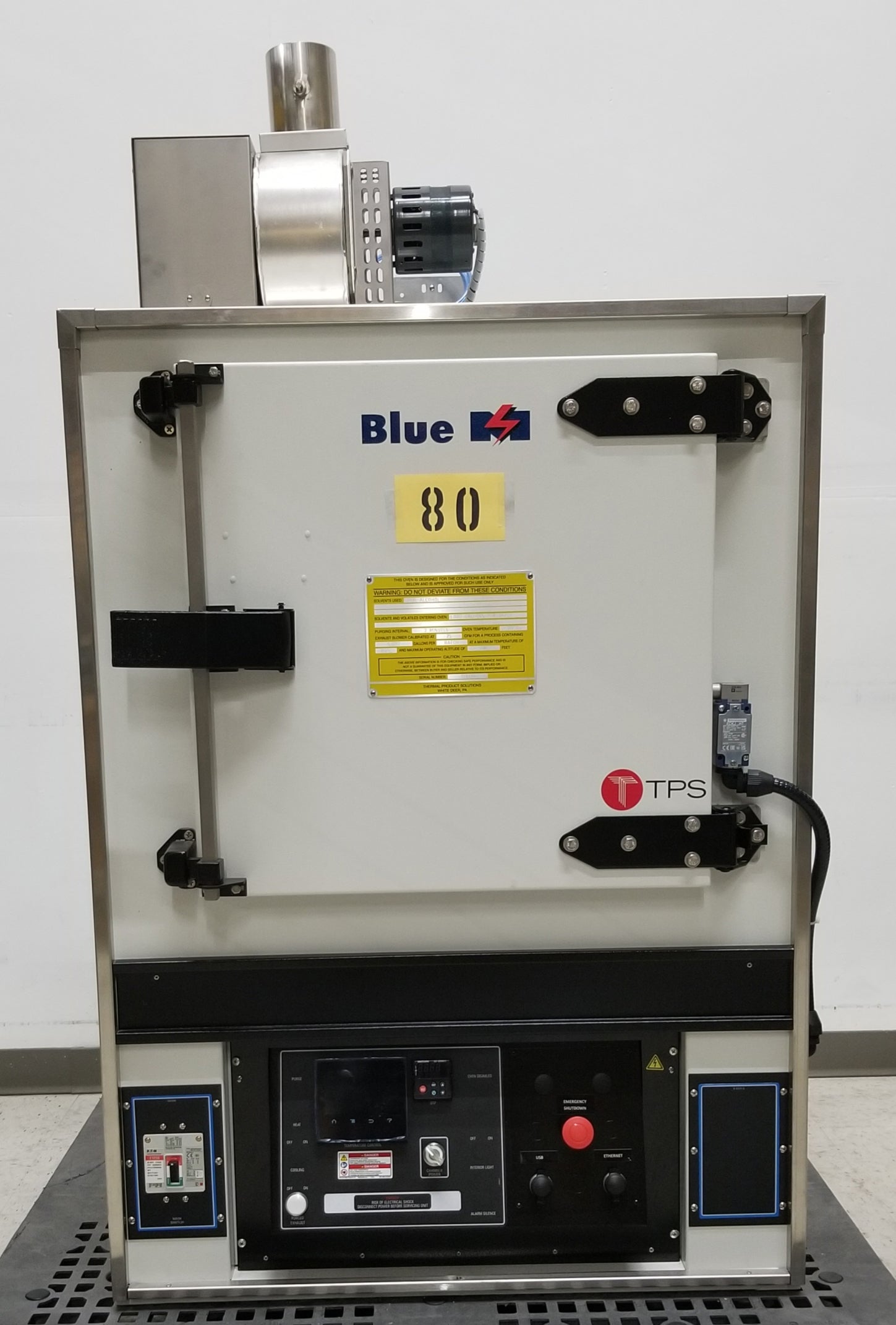

Blue M DCSA-206-E-F4T-ETO Class A Safety Solvent Drying Oven

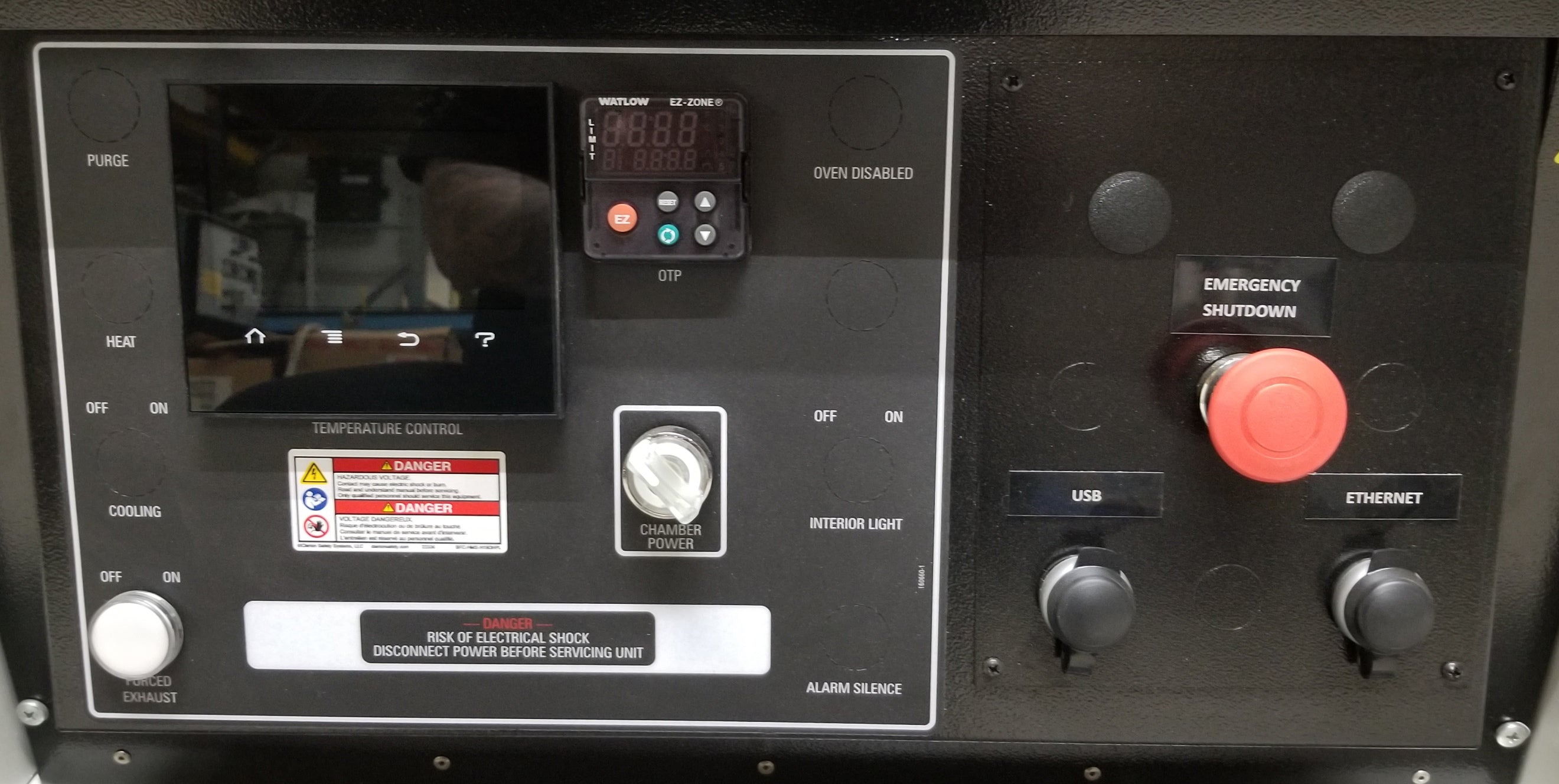

Temperature range: 15°C above ambient to +350°C. Watlow F4T Color Touch Panel High resolution graphical user-interface. Up to 40 profiles for ramp and soak. Ethernet and USB Ports. Inside dimensions 20”W x 18”D x 20”H. Blue M Class A ovens are mechanical convection, electric heated chambers that include safety features recommended in NFPA Bulletin 86 as standard. The design of the chamber concedes that the element temperature may be well above the auto-ignition point of some flammable materials. However, this is mitigated by maintaining a non-explosive mixture through the use of higher than normal exhaust rates. Increased element KW compensates for this exhaust factor or increase in makeup/intake air.

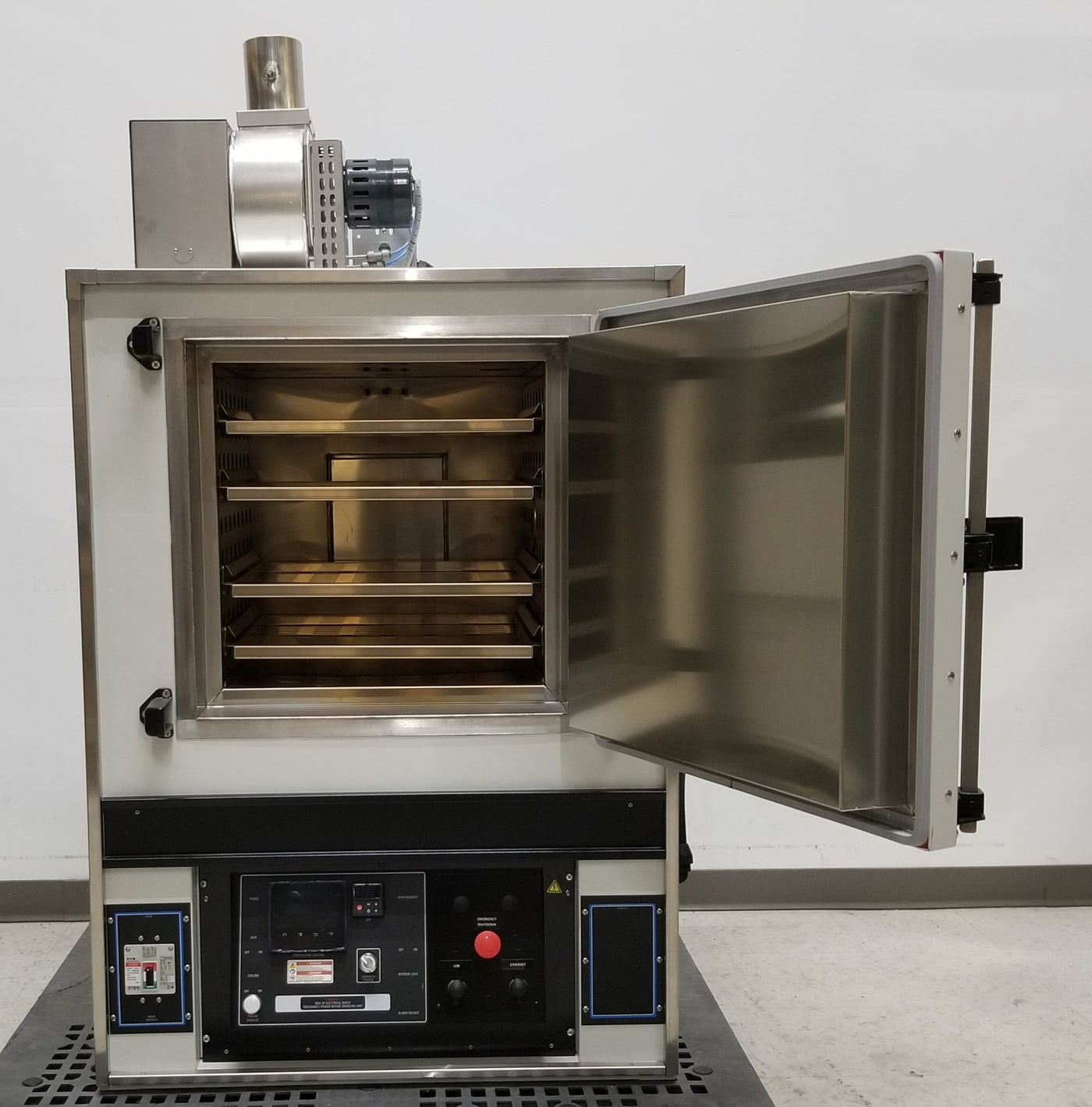

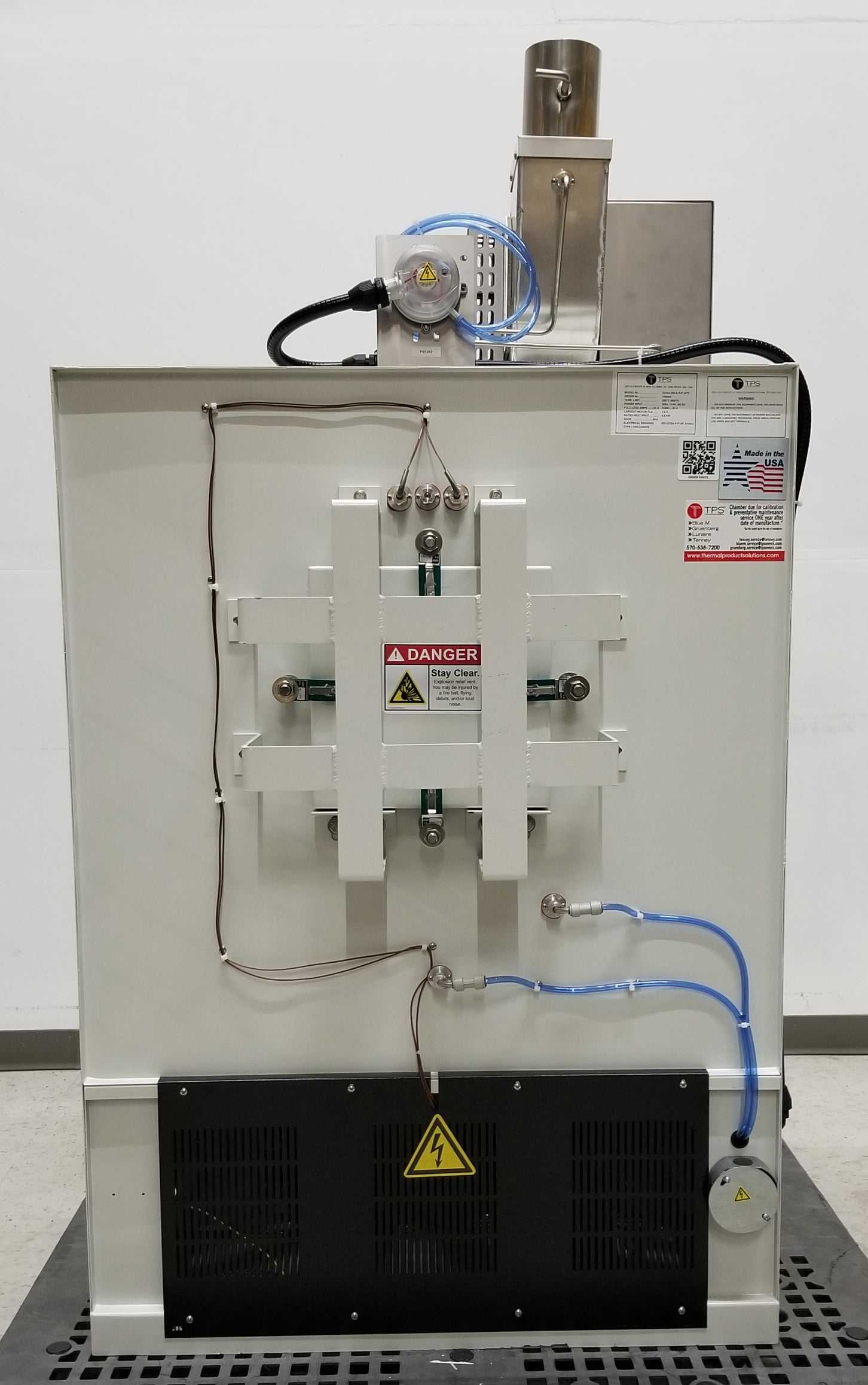

Oven Features • All-welded and sealed construction inner chamber • Circulation and exhaust blowers using stainless steel blower wheels are rendered spark resistant through the use of aluminum blower housings and aluminum inlet rings. Each are equipped with a differential air pressure type switch • Automatic initial timed purge air cycle • Fire extinguisher port with spring loaded fingers • Pressure relief (blowout) panel installed in the chamber rear wall is guarded and retained by a steel safety retaining cage • Door switch disables heat and circulation blower upon door opening and initiates the purge cycle • Emergency shutdown pushbutton switch • Safety placard warning is installed on the front of the oven • Adjustable shelf levels • All-welded, heavy-duty exterior with heavy-gauge, reinforced, cold-rolled steel • Corrosion-resistant, stainless steel (type 304) interior • Fiberglass insulation to ensure safe cabinet skin temperature • Heavy-duty door - double-wall, insulated construction • Baked on white powder-coated enamel finish on exterior for long-lasting corrosion protection. Circuit breaker provided for ground fault protection as standard. Unit was set up for use with ETHYL ALCOHOL. 208V, 3Ph, 60Hz, 20A
