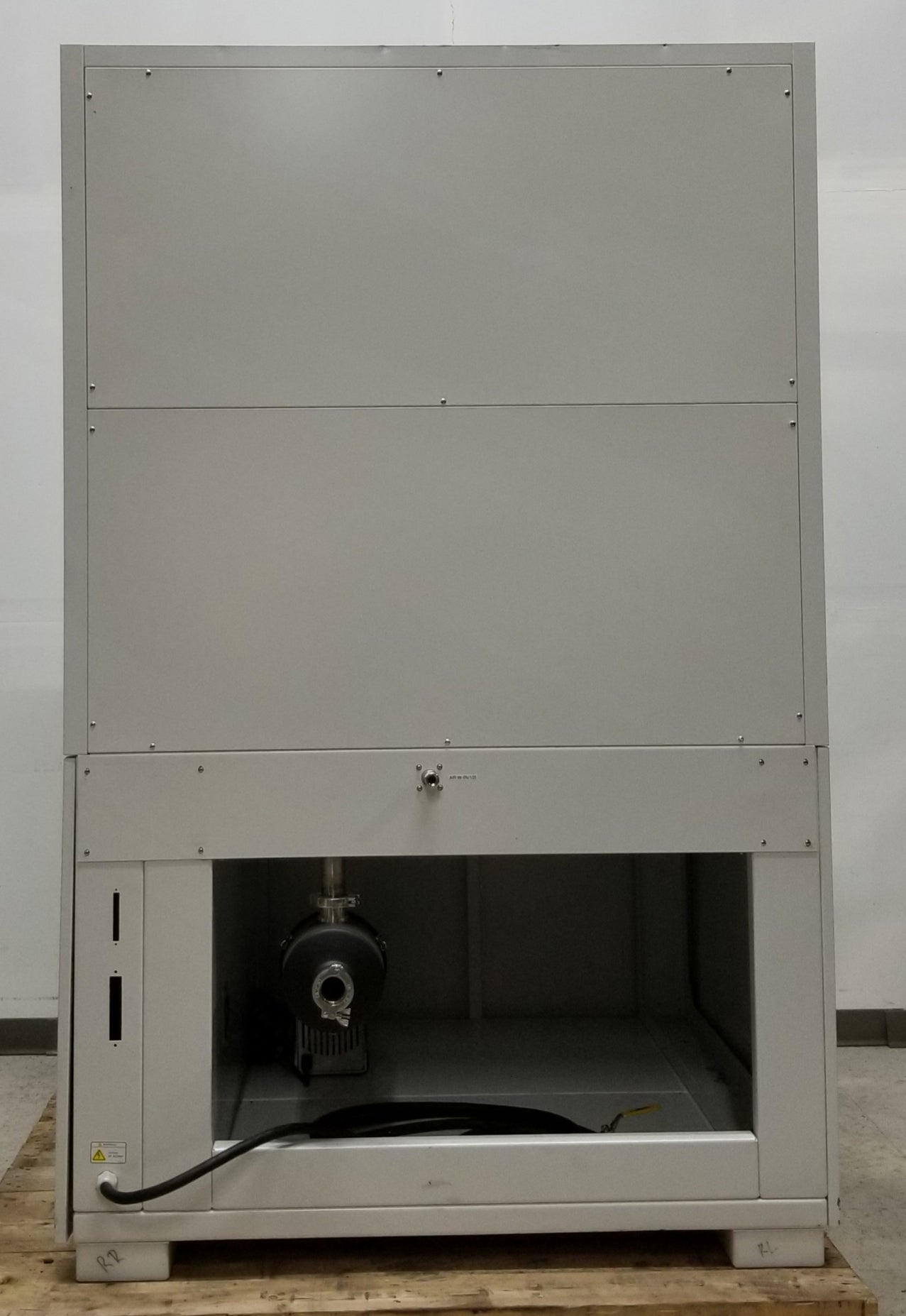

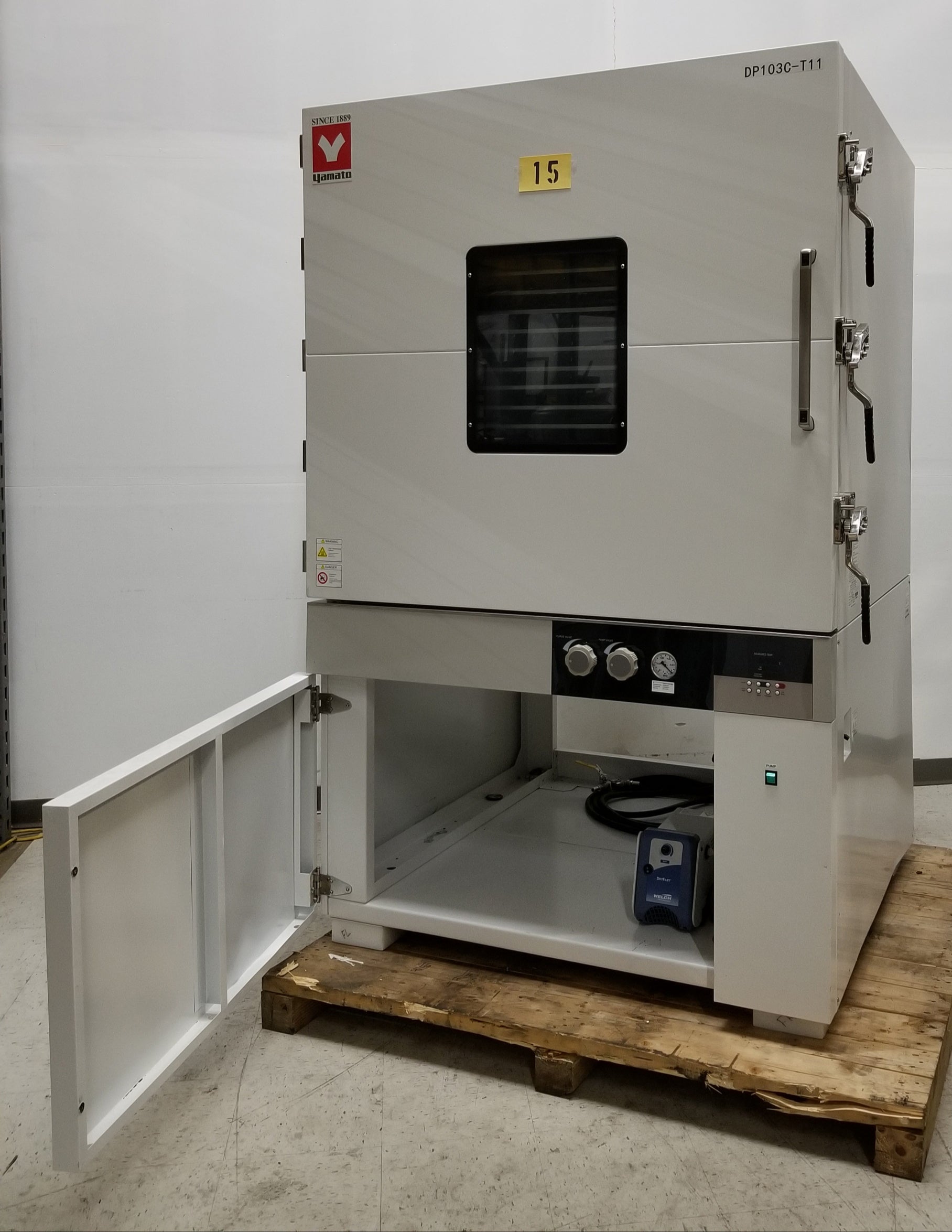

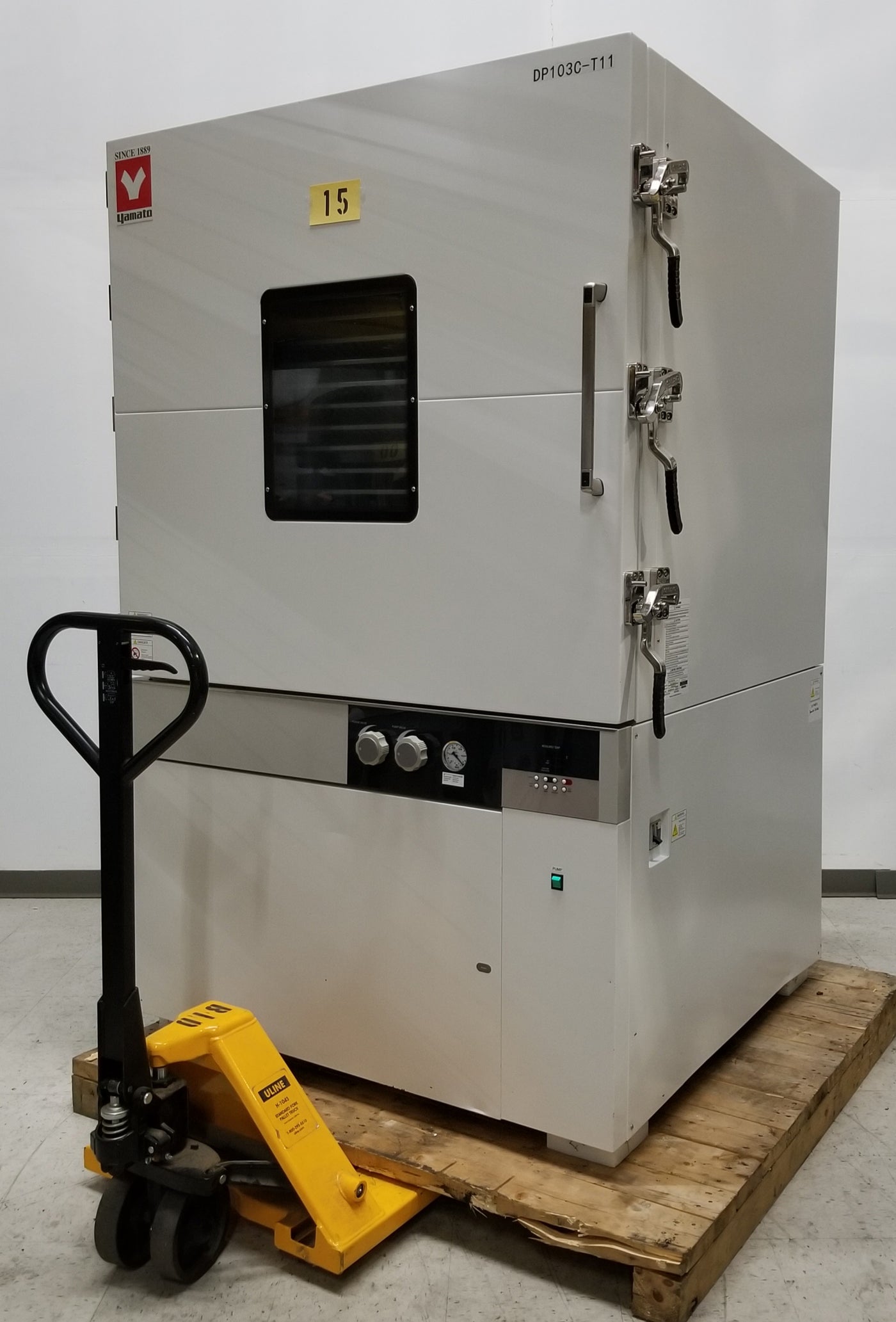

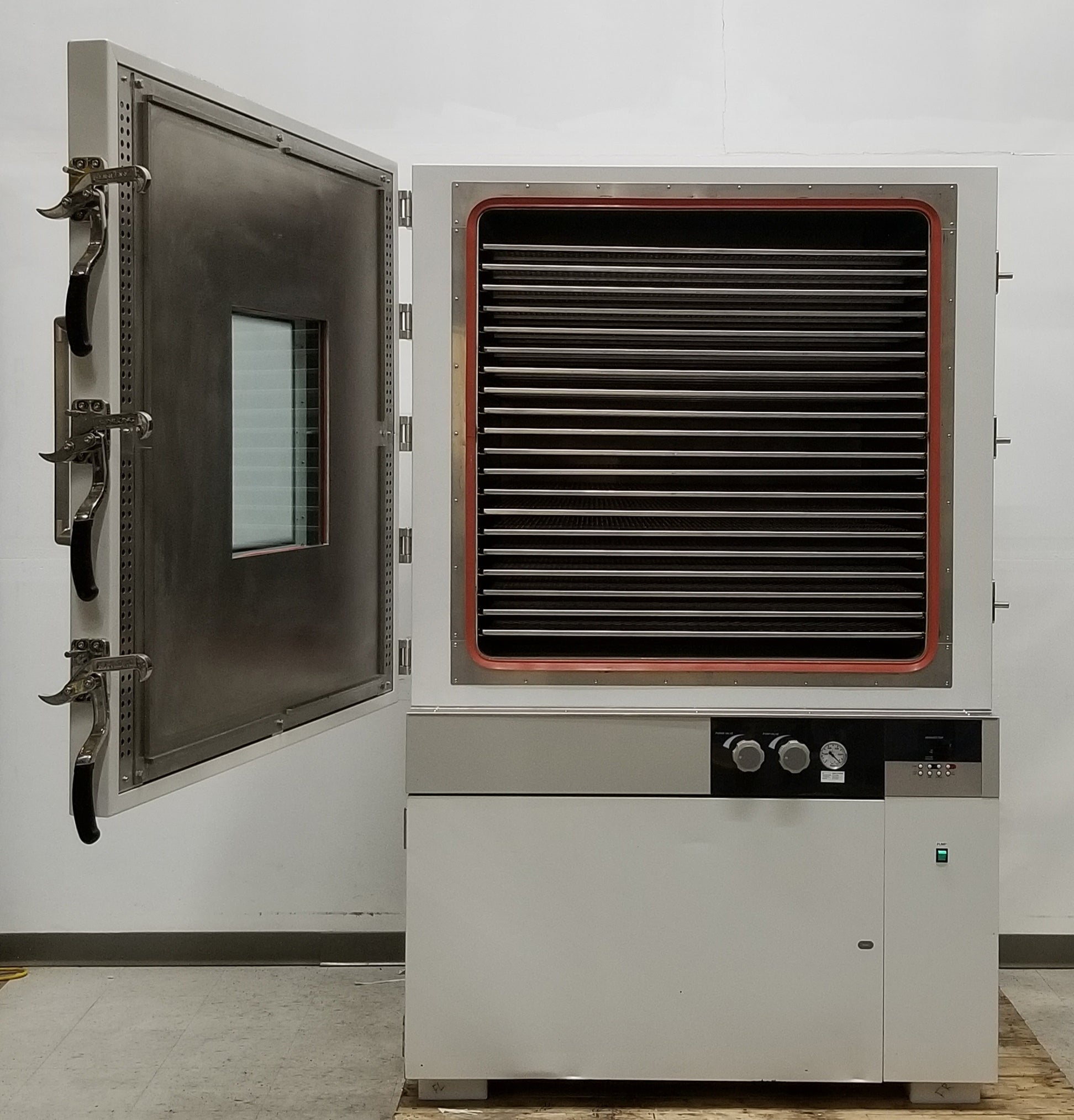

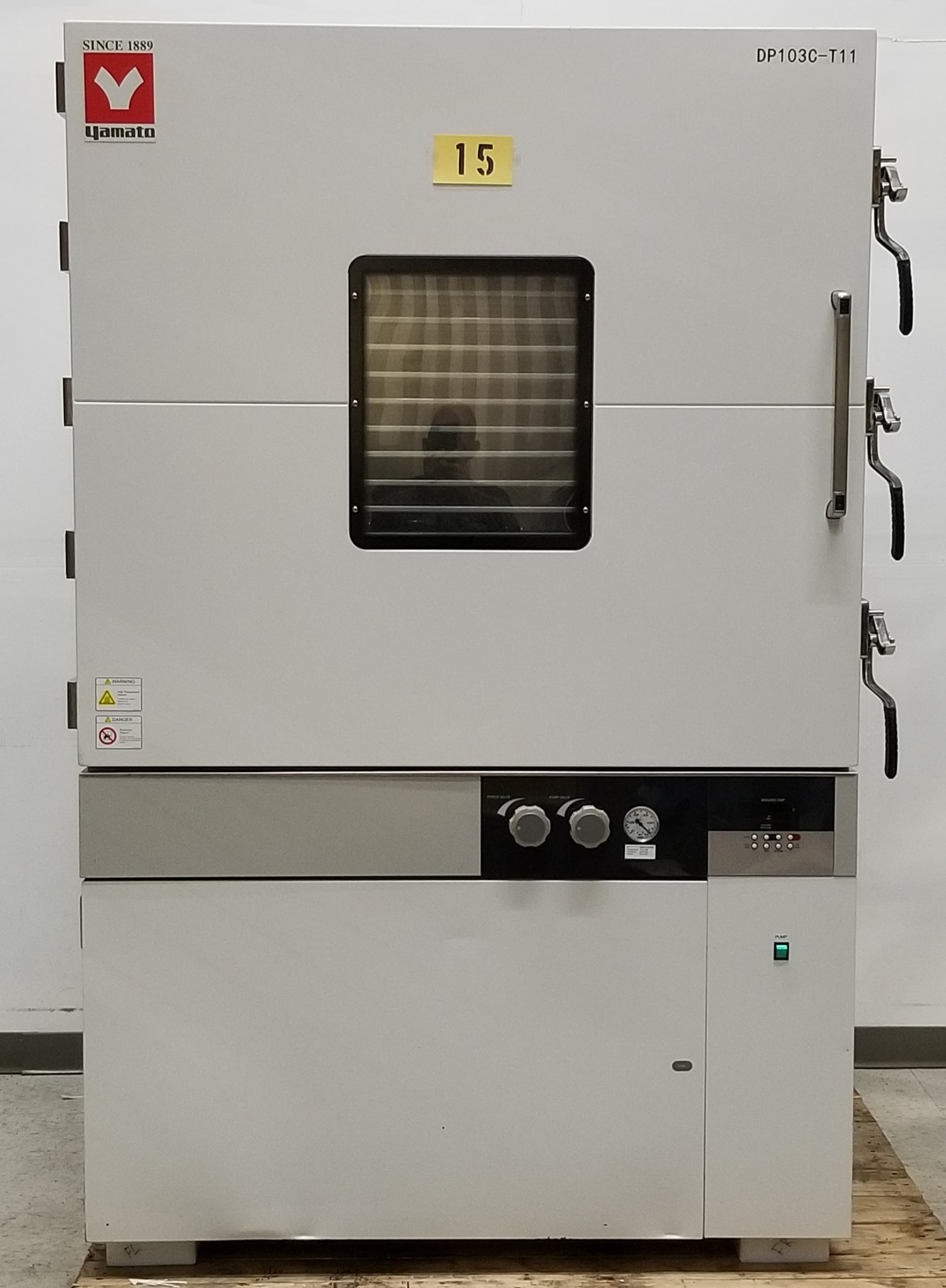

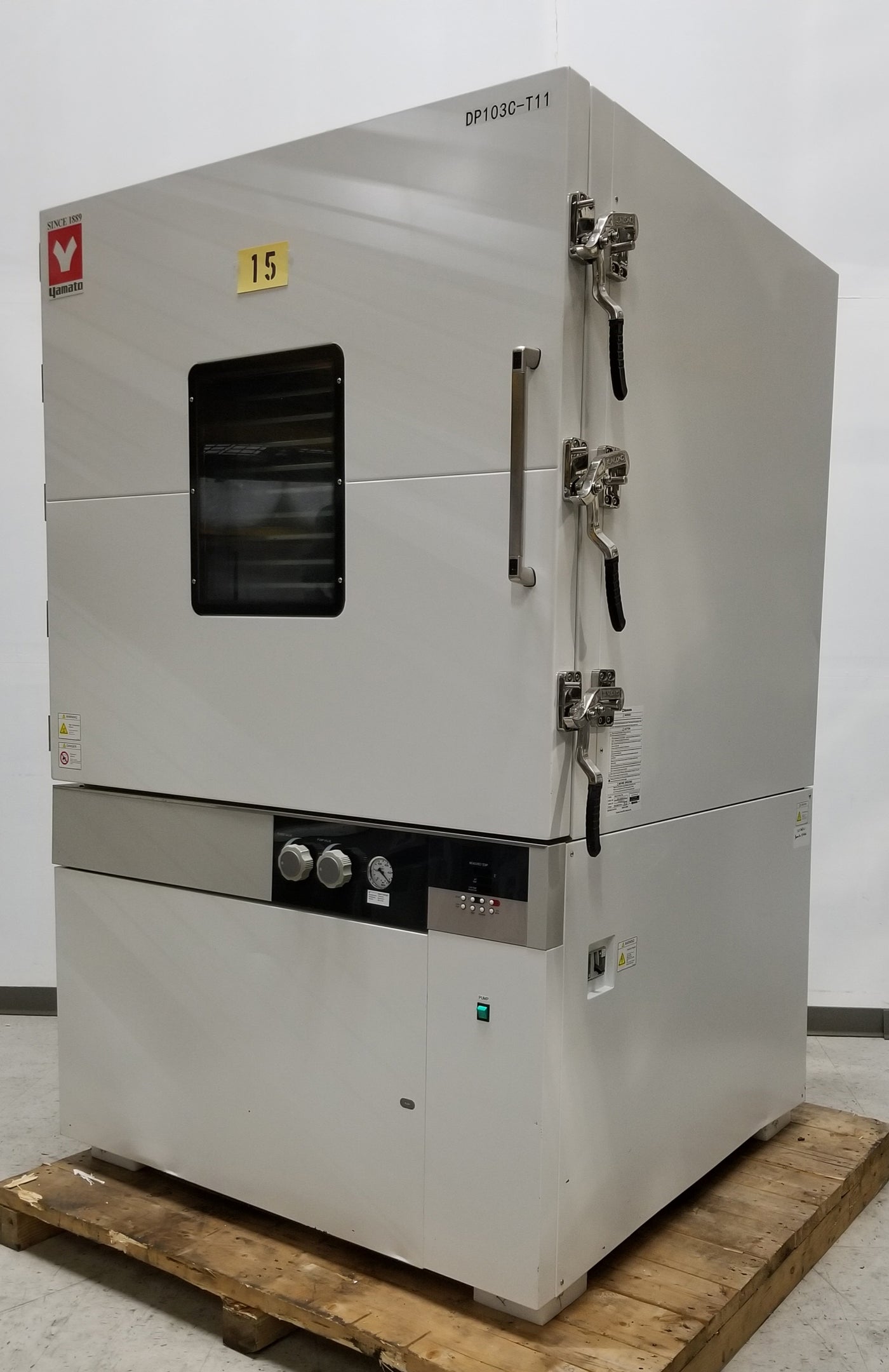

Used Yamato DP-103C Large Vacuum Oven, 1000L 39" x 39" x 39"

Method

Decompression • chamber wall heating

Operating Temp. Range

40~200°C

Operating Vacuum Range

101~0.1kPa (760~1Torr)

Temp. Adjustment Accuracy

±1.0°C (at 200°C)

Interior

Stainless steel plate

Exterior

Cold rolled steel plate with chemical proofing coating

Insulating Material

Glass fiber

Heating Method

Decompressed chamber wall direct heating

Heater Power

14.4kW

Observation Window

Toughened glass + resin protection panel

Vacuum Gauge

Pointer type, -100~0kPa

Vacuum Pump Installation Room

Yes

Temp. Control

3 segments PID

Temp. Setting

Use specialized function menu key and up/down key to set

Temp. Display

Measured temp. display: green 4-digit LED digital display

Timer

1min-99 hr 59 min and 100 hr-999 hr 50 min (attached with timing wait function)

Operation Function

Fixed temp. auto start, auto stop, program operation

Program Mode

Program operation 3 segments 30 steps (30 steps×1, 15 steps×2, 10 steps×3)

Additional Function

Deviation correction, key lock, power outage compensation

Heater Circuit Control

SSR driving

Sensor

K thermocouple (temp. controller and overheat protector)

Safety Device

Self-diagnosis circuit (abnormal temp. sensing, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, EBL to prevent overcurrent, key lock, etc.

Internal Dimensions W×D×H

1000×1000×1000 mm

External Dimensions W×D×H

1300×1280×2110 mm

Internal Capacity

1000L

Air Exhaust Port

NW40 flange

Air Suction Port

Rc 3/8

Power Source (50/60Hz) Rated Current

3 phase 480V 24A

Weight

~1000kg
