Used Semiconductor Equipment Corporation 365

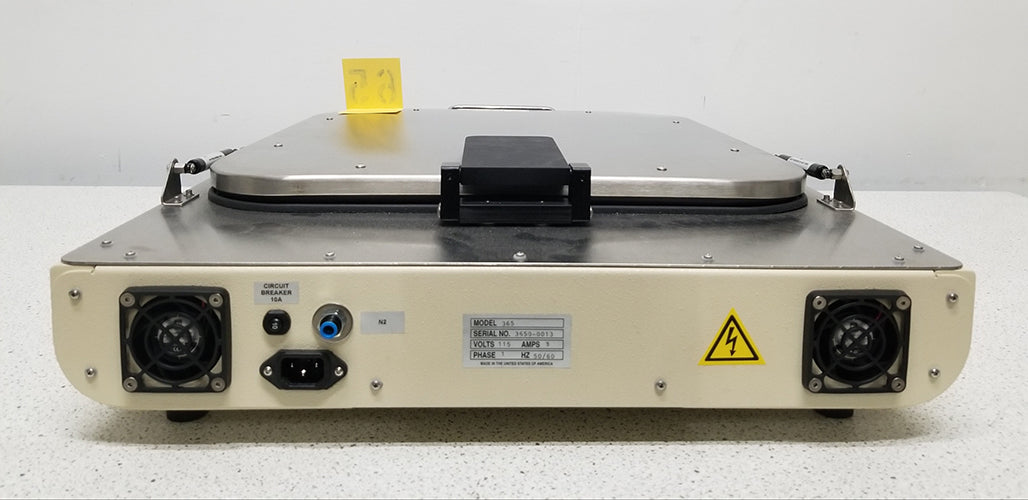

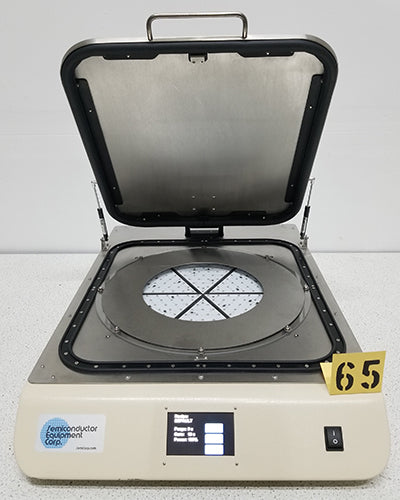

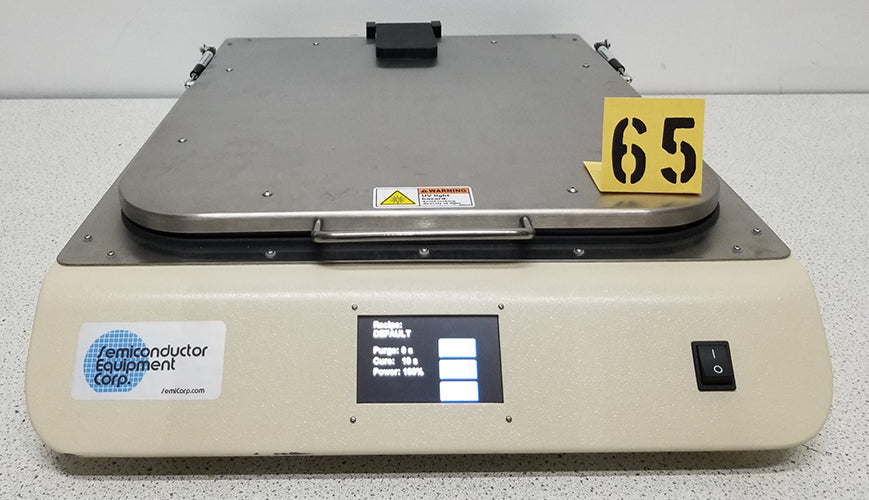

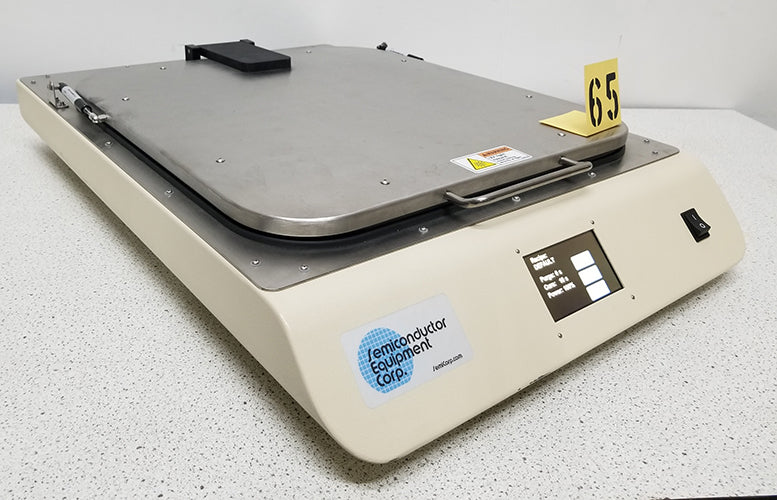

Semiconductor Equipment Corp 365 UV Tape Exposure System. Revolutionary new design cures UV tapes quickly and uniformly, features a long life light source and handles all size wafers up to 300mm. The Model 365 UV exposure system needs no external ventilation and has a small footprint. Model 365 Capabilities: Cures most UV tape in 5 seconds Large exposure area cures up to 300mm wafers. Film Frame masks available. Programmable N2 purge and cure time Touch screen control Safety interlock to prevent operator exposure to UV light Self diagnostic (alarm if LED fails, identifies faulty LED module) 10,000 hour LED life Generates no ozone Cooling fans temperature controlled   Specifications: 70mW per sq. centimeter @ 365nM wavelength 21.5” wide X 31.5” long X 5.5” high Weight: 55 pounds Power: 115 VAC; 3.5 amp; 50/60 Hz Cover gas: N2 20 psi @ 0.5 CFM
