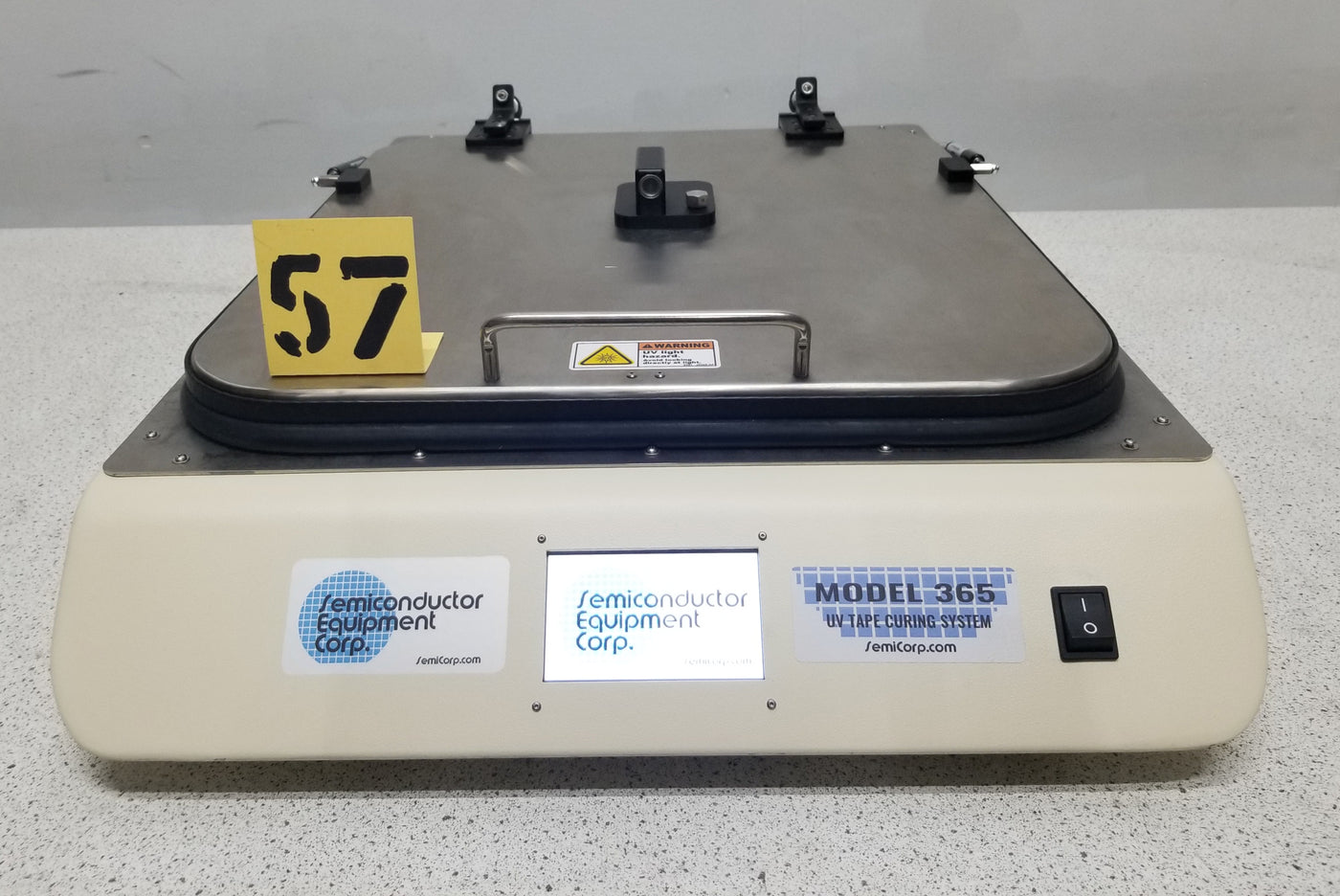

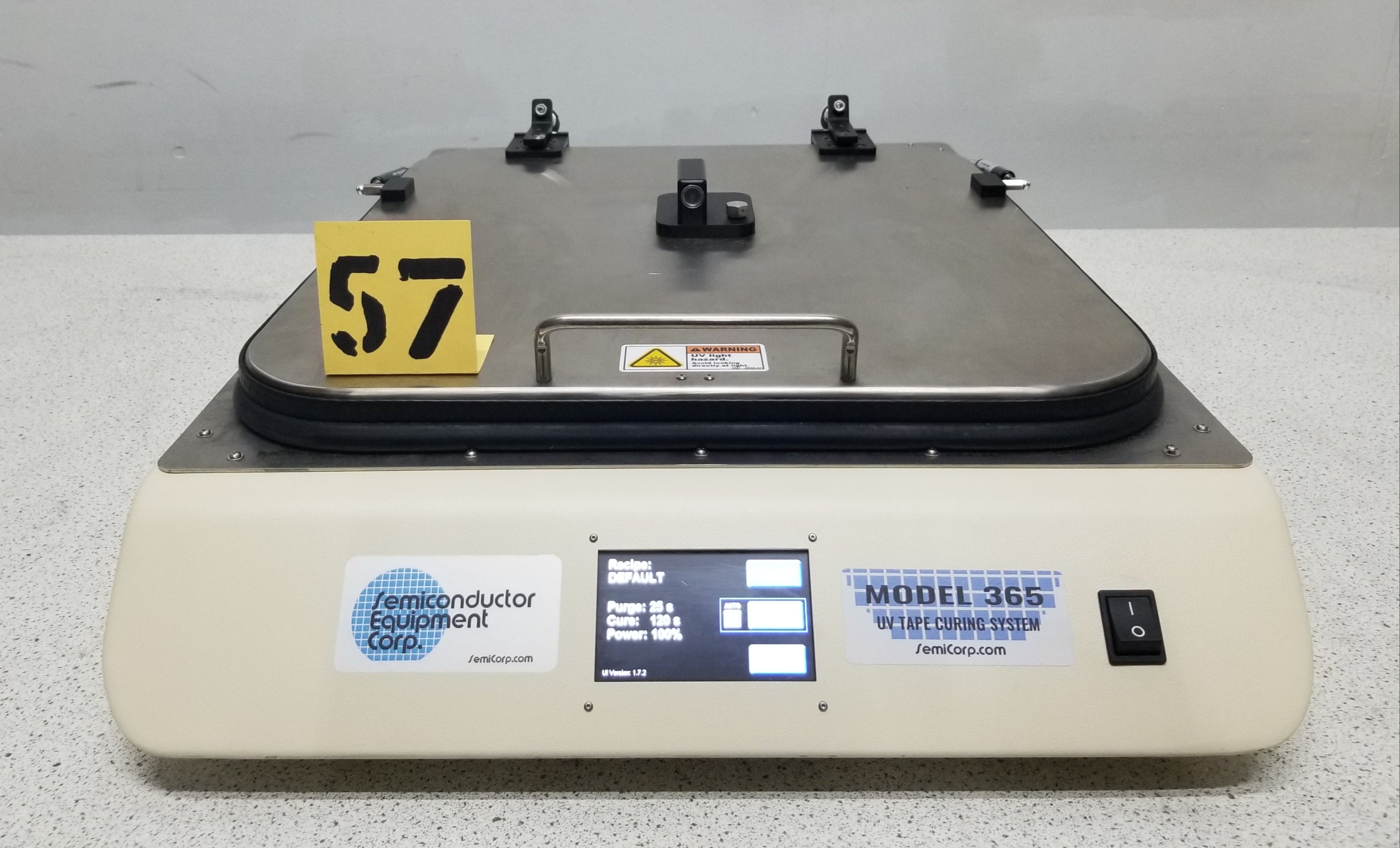

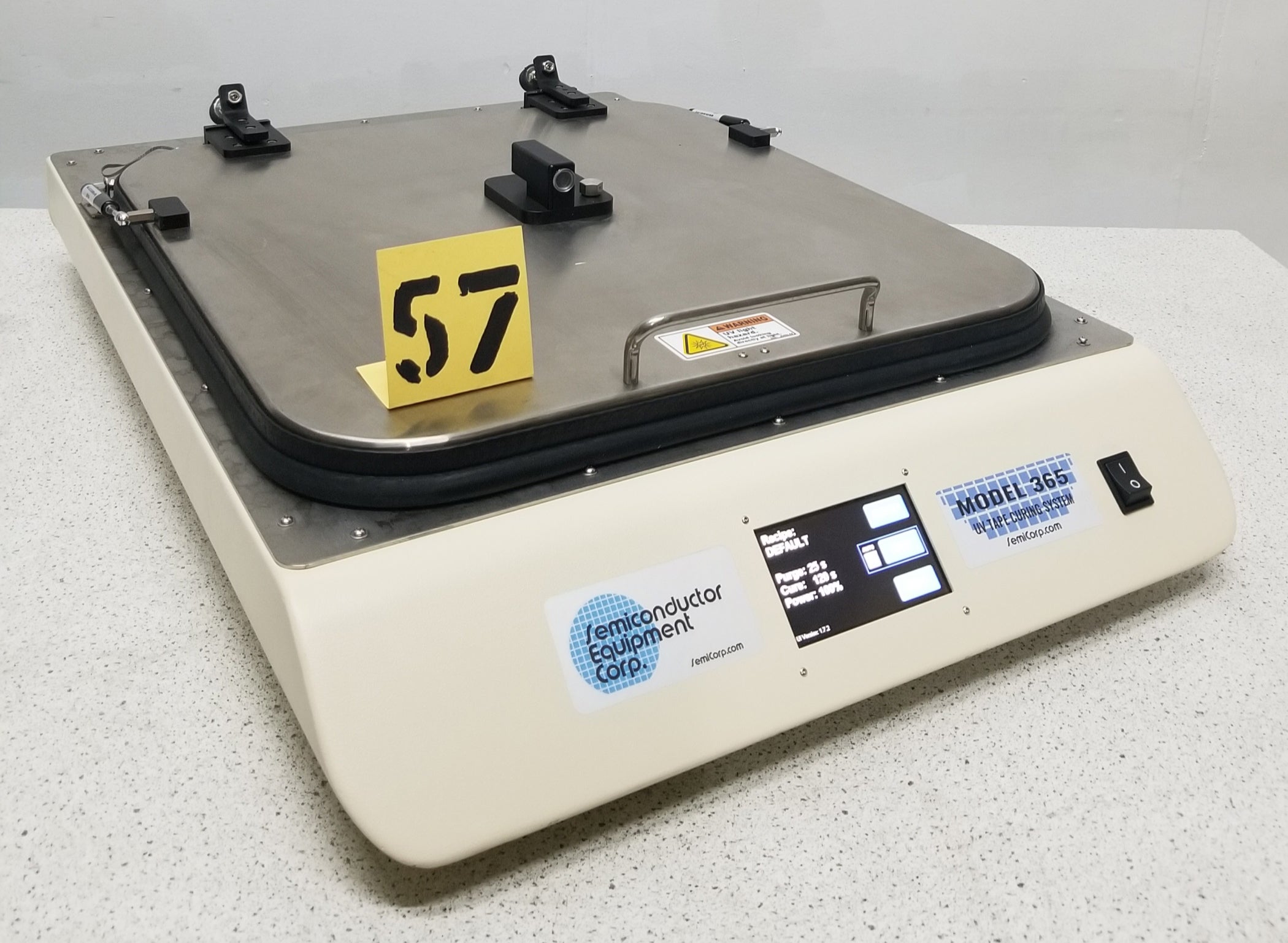

Semiconductor Equipment Corp 365 Tape Frame UV Curing 300mm

Semiconductor Equipment Corp 365 Tape Frame UV Curing 300mm

Revolutionary new design cures UV tapes quickly and uniformly, features a long-life light source and handles all size wafers up to 300mm. The Model 365 UV exposure system needs no external ventilation and has a small footprint.

Model 365 Capabilities:

 ·  Cures most UV tape in 5 seconds

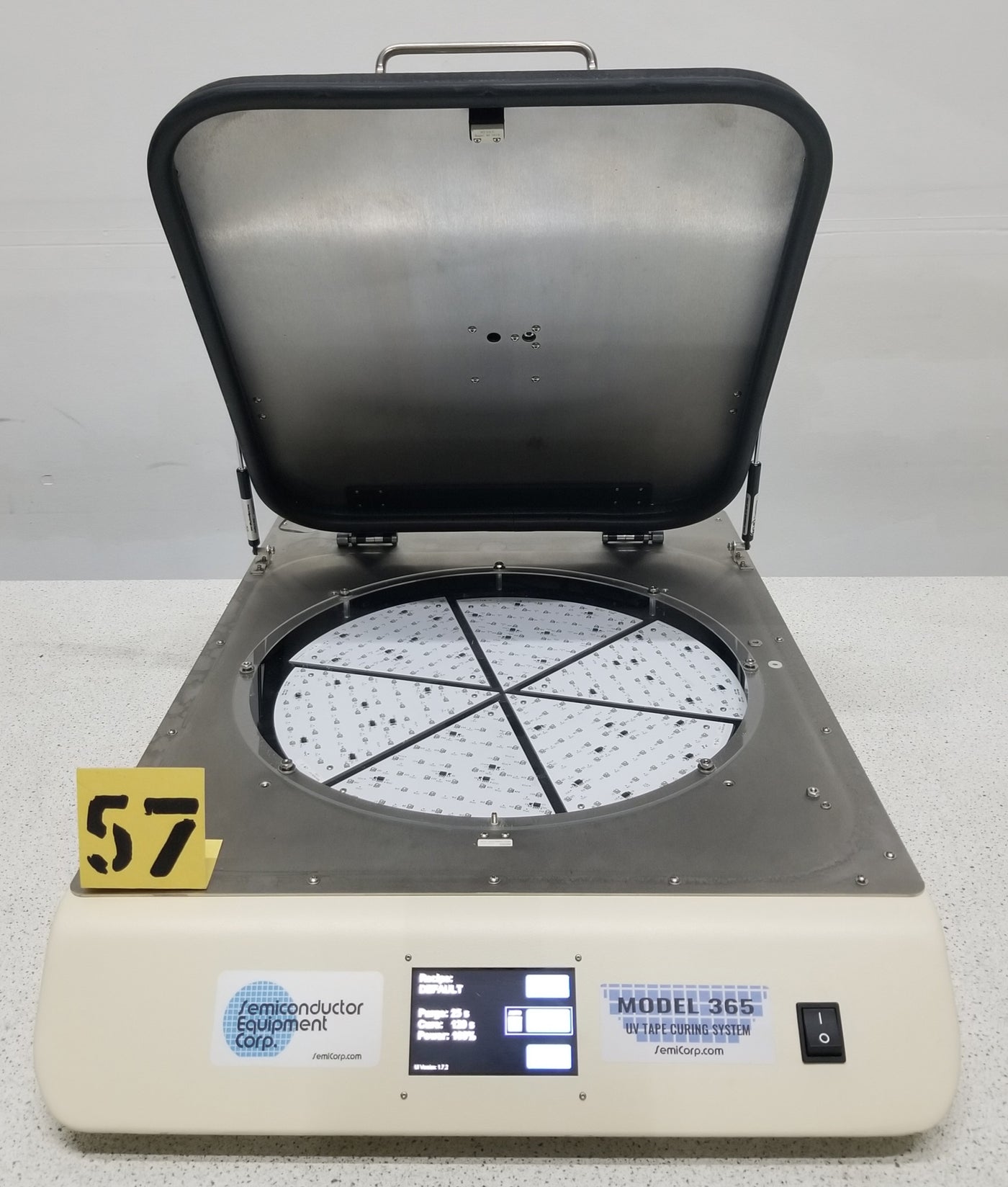

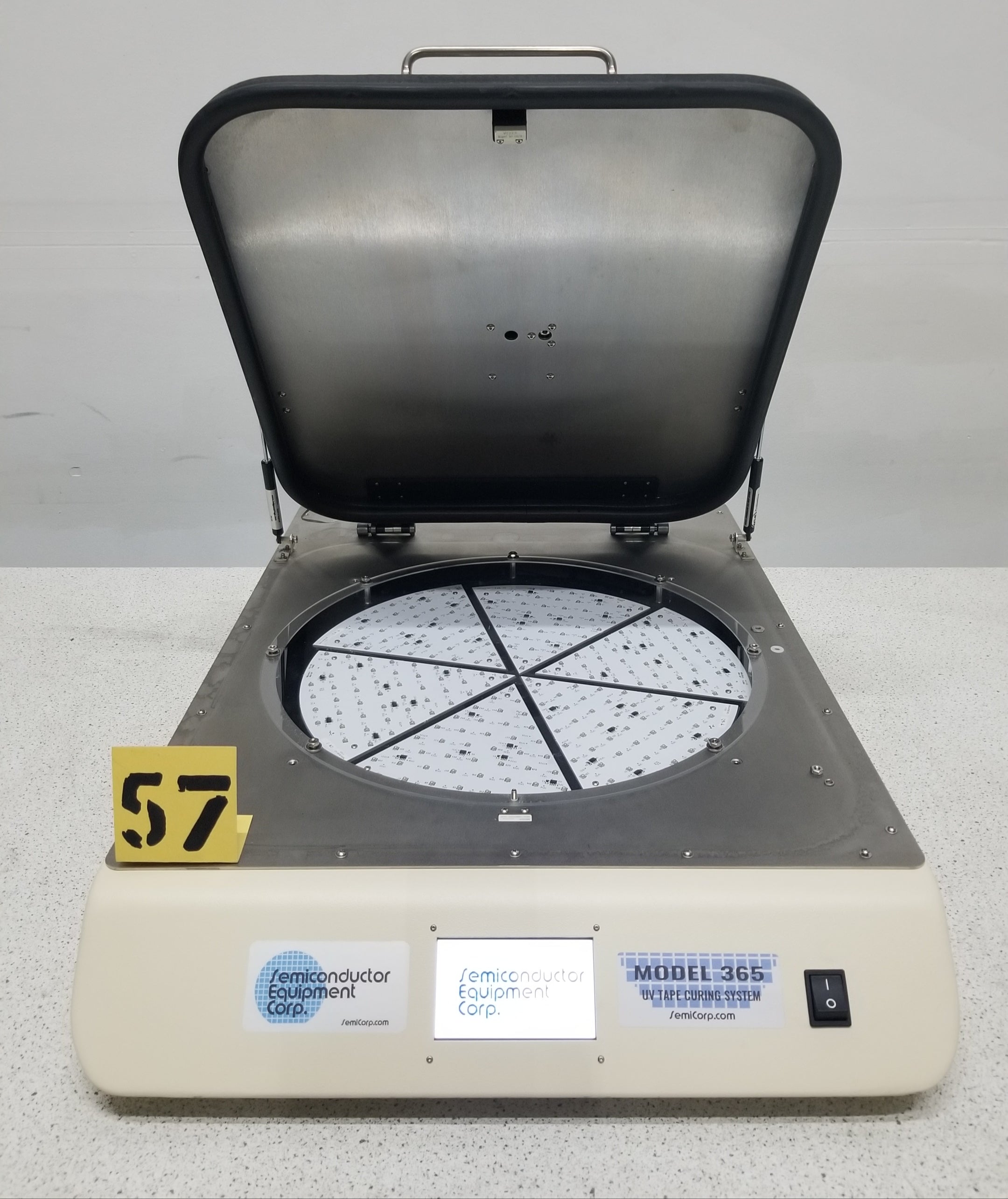

·  Large exposure area cures up to 300 mm wafers.

·  Programmable N2 purge and cure time

·  Touch screen control

·  Safety interlock to prevent operator exposure to UV light

·  Self-diagnostic (alarm if LED fails, identifies faulty LED module)

·  10,000 hour LED life

·  Generates no ozone

·  Cooling fans temperature controlled

Specifications:

·  21.5” wide X 31.5” long X 5.5” high

·  Weight: 55 pounds (25 kg)

·  Power: 85-264 VAC: 10 Amp: 50/60 Hz

·  Cover gas: 30 psi (2.07 BAR) @ 1.06 CFM or 30 LPM
