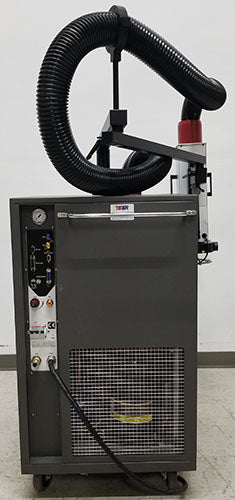

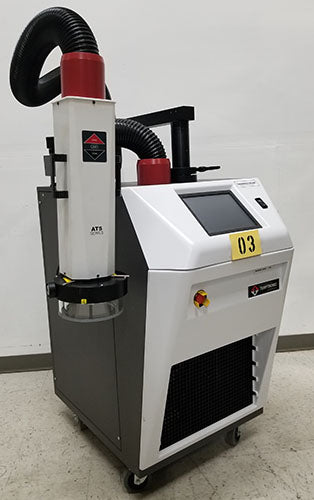

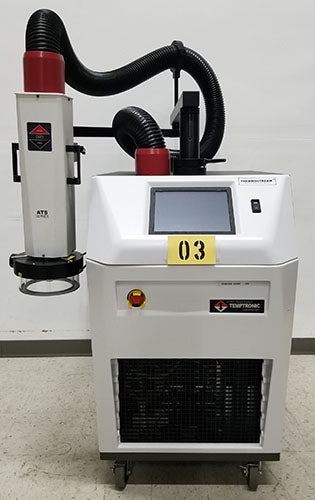

InTest Temptronic Thermostream ATS-830-M-4 Temperature Forcing System -90°C to +225°C.
The ATS-800 family offers high-capacity, floor standing models for maximum thermal horsepower. Increase throughput with wider temperature ranges and higher air flows to accelerate temperature transition rates. The ATS-800 Series delivers enough thermal power to control high heat dissipating power devices and larger test subjects to MIL-STD temperatures and beyond. These models are configured with either a mechanical, articulated arm or a turret, each compatible with enclosures and chambers.
Designed for 60Hz operation only, this Advanced Temperature Source for fast and precise thermal conditioning of components, parts, hybrids, modules, sub-assemblies, and printed circuit boards. Capable of ultra-low temperatures without the use of Liquid Nitrogen (LN2) or Liquid Carbon Dioxide (LCO2).
Features
- Transition Rates:
-55°C to +125°C, <10 seconds
+125°C to -55°C, <10 seconds
- System Airflow Output: 4 to 18 scfm ( 1.8 to 8.5 l/s) Continuous
- Temperature Display & Resolution: ±1°C
- Temperature Accuracy: ±1°C
- Directly Control the device under test (DUT)
- DUT Control Sensors: Type T or Type K Thermocouples, RTD (100 Ohm)

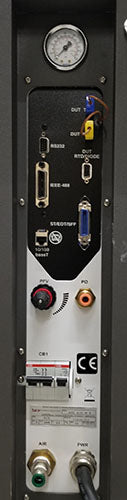

- Remote interfaces: IEEE.488, RS232
- Thermal Cap provides a localized thermal test environment
protects from moisture and condensation at the DUT site
- LabView™ drivers
- CE Compliant and CFC-free
Specifications
|
Facility Requirements
|
|
Power
|
60Hz only, system does not operate at 50Hz
200 - 250 VAC (230V nominal), 60Hz, 30 amp, 1phase
|
|
Compressed Air
|
|
Clean, Dry Air (CDA)
|
Filtered to 5 micron particulate contamination.
Oil Content: <0.1 ppm, by weight, filtered to 0.01 micron oil contaminant.
Dew point: <-10°C @ 6.2 BAR (90PSI)
|
|
Air Supply Pressure
|
6.2 to 7.6 BAR (90 to 110 PSIG)
|
|
Total Air Flow Rate Required
|
7.1 to 14.2 l/s (15-30 scfm)
11.8 l/s (25 scfm) nominal
|
|
Air Supply Temperature
|
+20° to +25°C; +22°C nominal
|
|
Operating Environment
|
|
Operating Temperature
|
+20° to +28°C; +23°C nominal
|
|
Humidity
|
0 to 60%; 45% nominal
|
|
Service and Safety
|
|
Refrigerants
|
HCFC and CFC-free, non-toxic, non-flammable
|
|
Serviceability
|
Auto-diagnostics and field replaceable modules
|
|
Over Temperature Protection
|
+230°C (factory set): Operator can set high and low air temperature limits
|
|
Weight and Dimensions
|
|
Dimensions
|
Base
|
Width: 61.0 cm (24 in.), Depth: 72.4 cm (28.5 in.)
Height: 108 cm (42.5 in.)
|
|
System Weight
|
Not packed: 236 kg (520 lbs.)
Packed: 365 kg (805 lbs.)
|
|
Mobility
|
Four static dissipative, swivel caster wheels
|
|
Max. Reach
|
160.0cm (63 in.)
|
|
Max. Operating Height
|
130.3 cm (51.2 in.) - extended height option: 188.0 (74.0 in.)
|
|
Min. Operating Height
|
69.1 cm (27.2 in.) - extended height option: 81.3 (32.0 in.)
|
|
Noise Level
|
<65dBA
|
