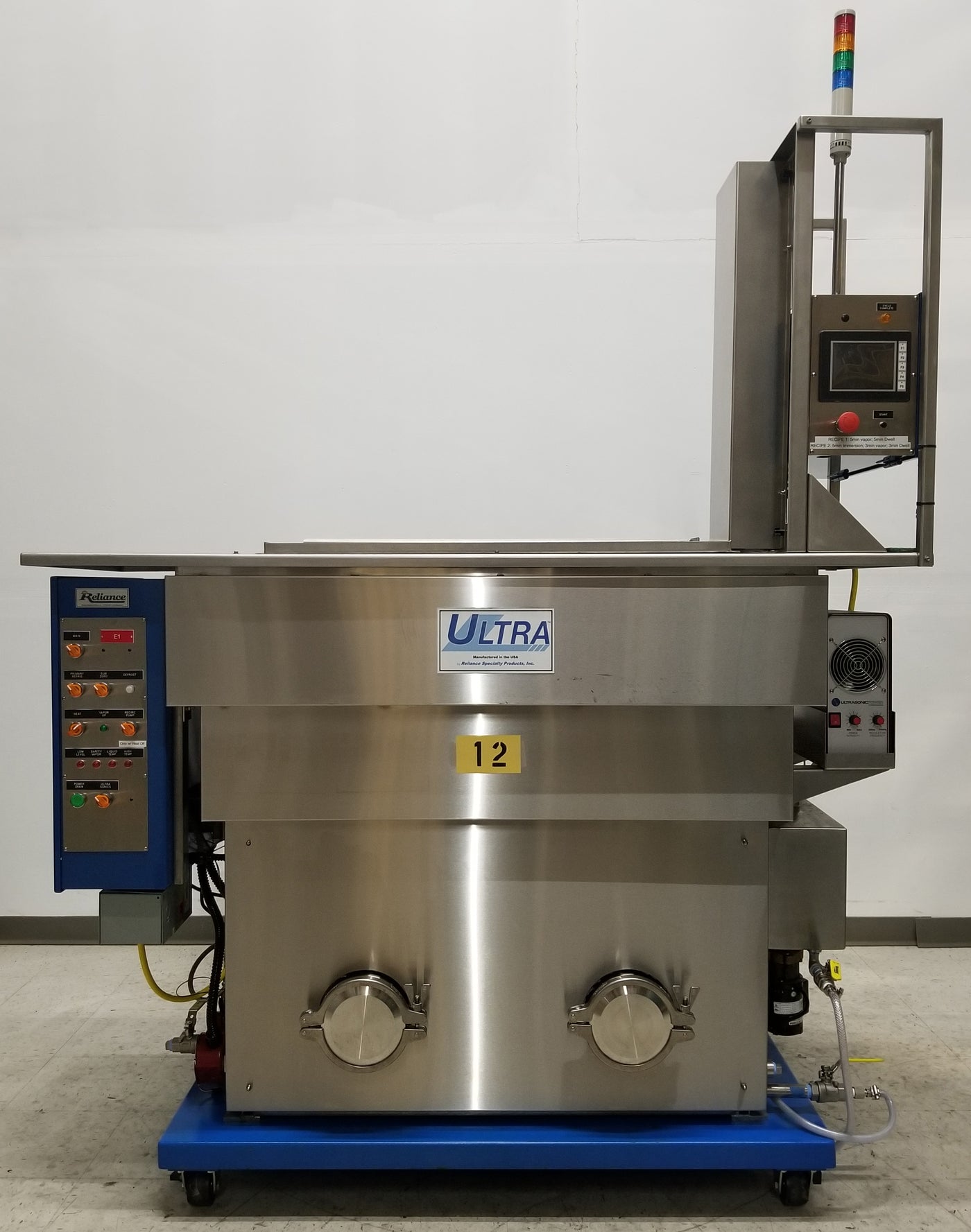

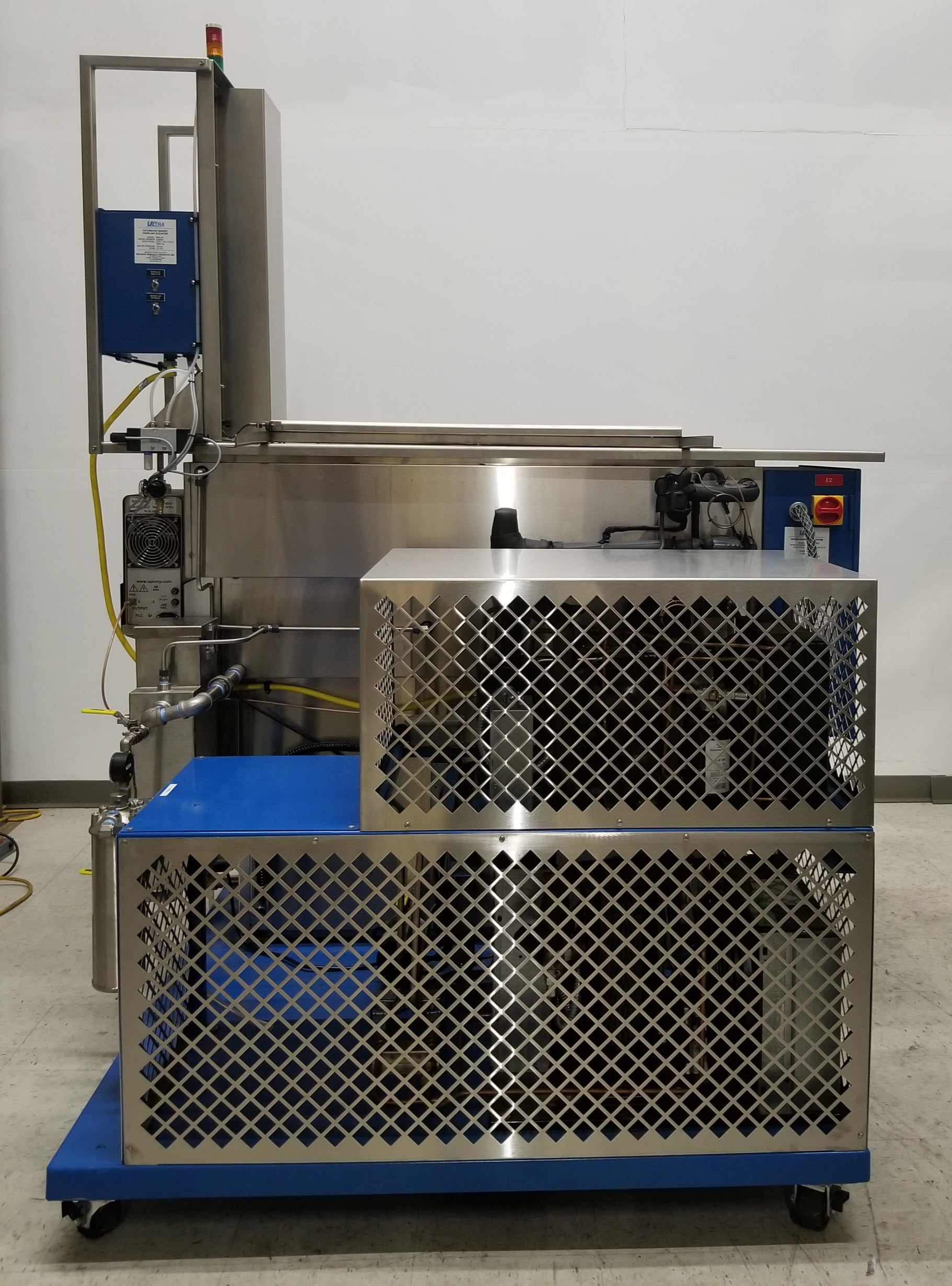

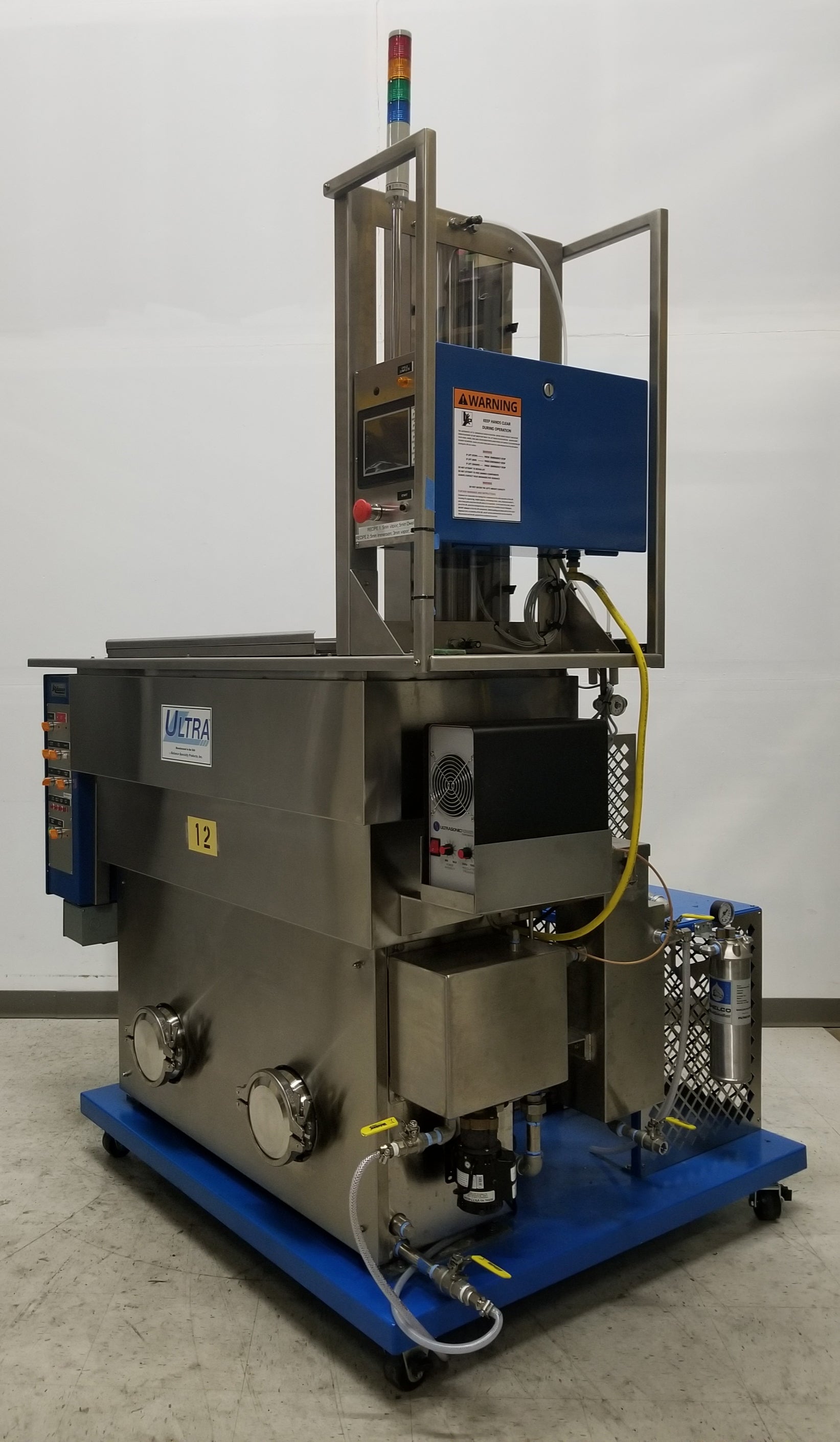

Used Reliance Products ULTRA 2012LE Ultrasonic Vapor Degreaser

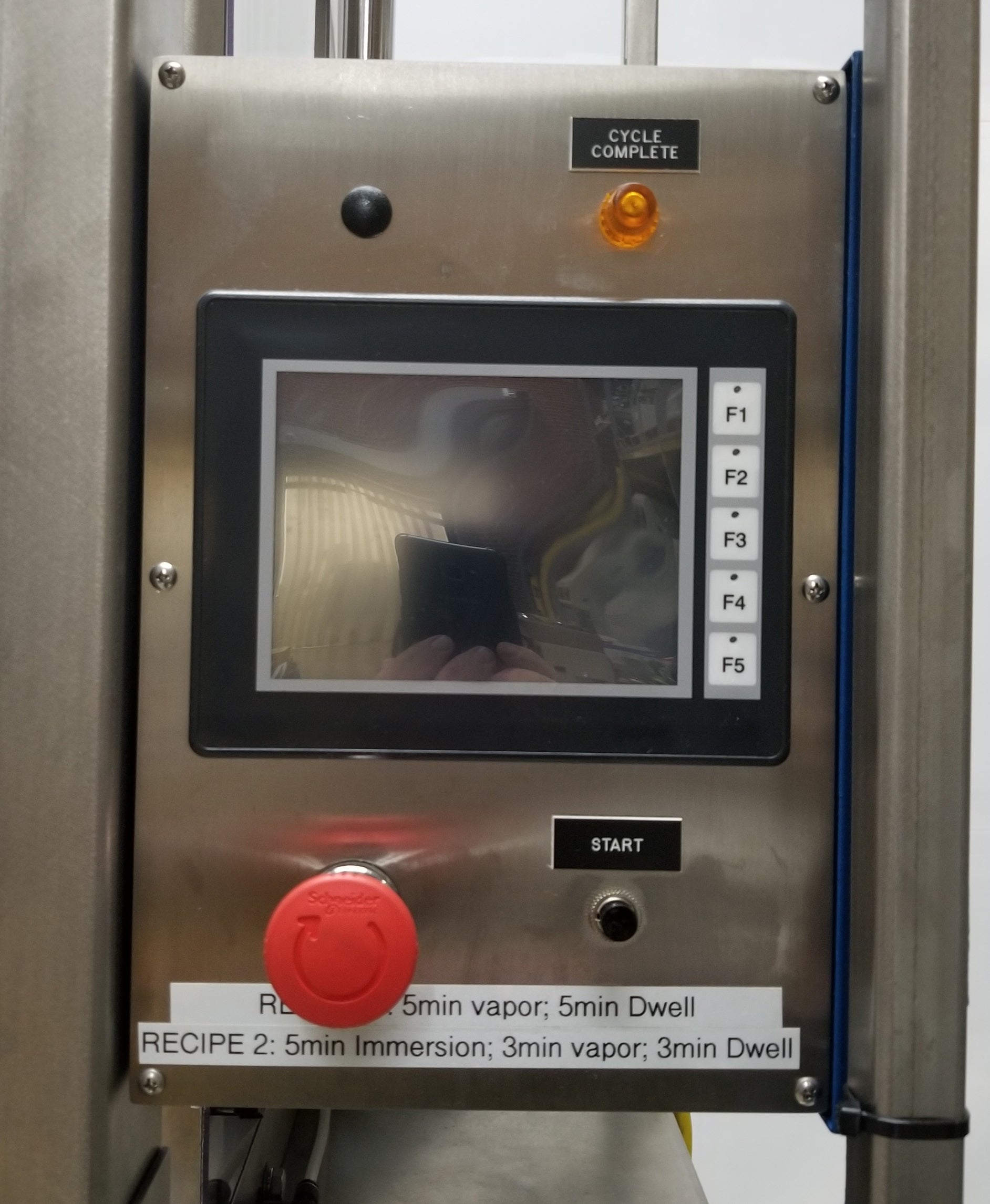

Reliance Specialty Products ULTRA 2012LE Ultrasonic Vapor Degreaser with Optional

Automated Basket Handling System

• DATE of MFG 11-2021
• Low Emissions
• NESHAP Compliant Vapor Degreasing System

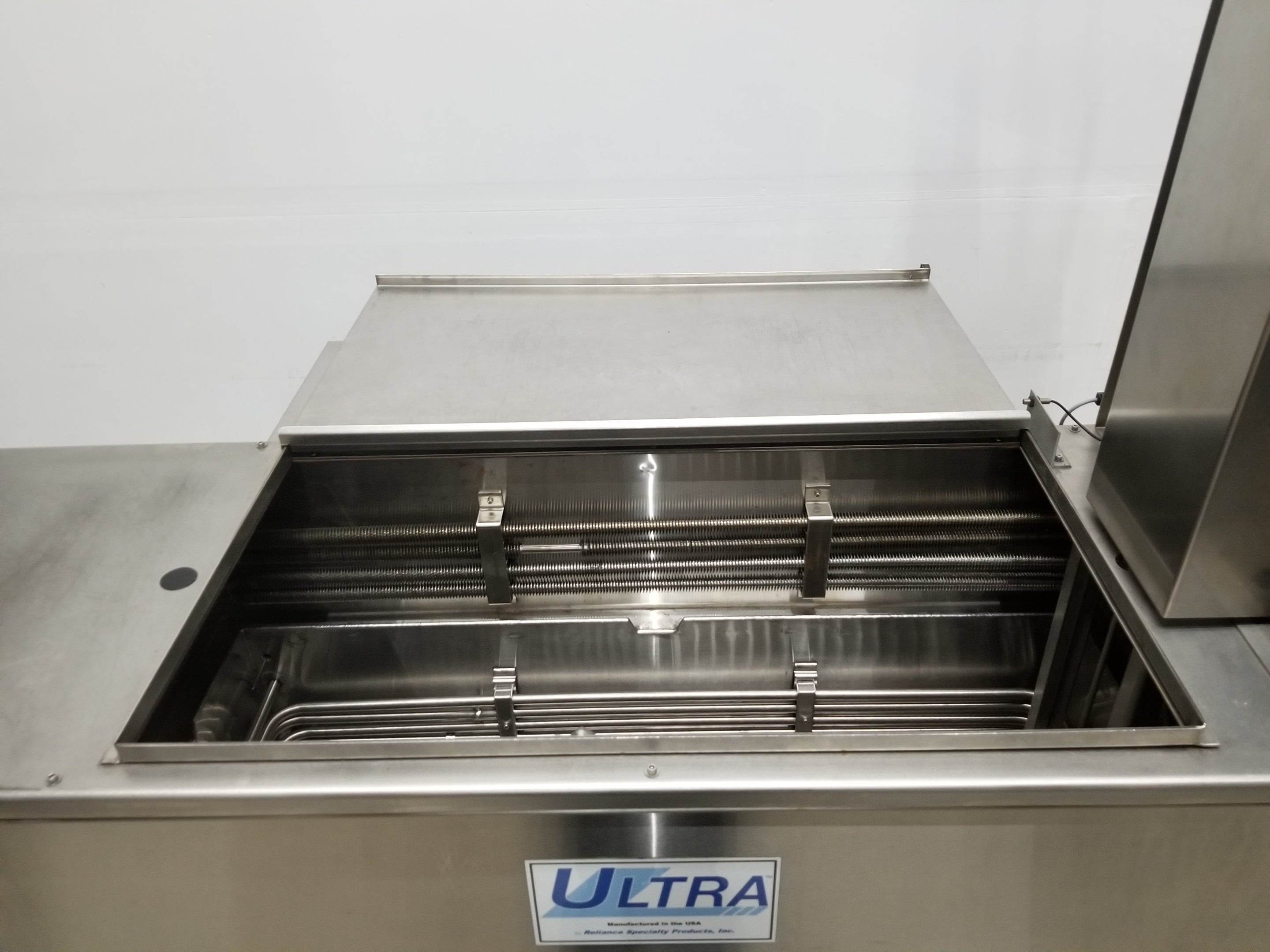

• Solid Stainless Steel Construction - Heavy gauge 304 stainless steel used on tank, water separator, spray reserve tank, primary coil, low-temperature coil, lid system, tank access doors and tank fittings.
• Stainless Steel Primary Condensing Coil - New Copeland refrigeration system operating with standard R134A refrigerant.

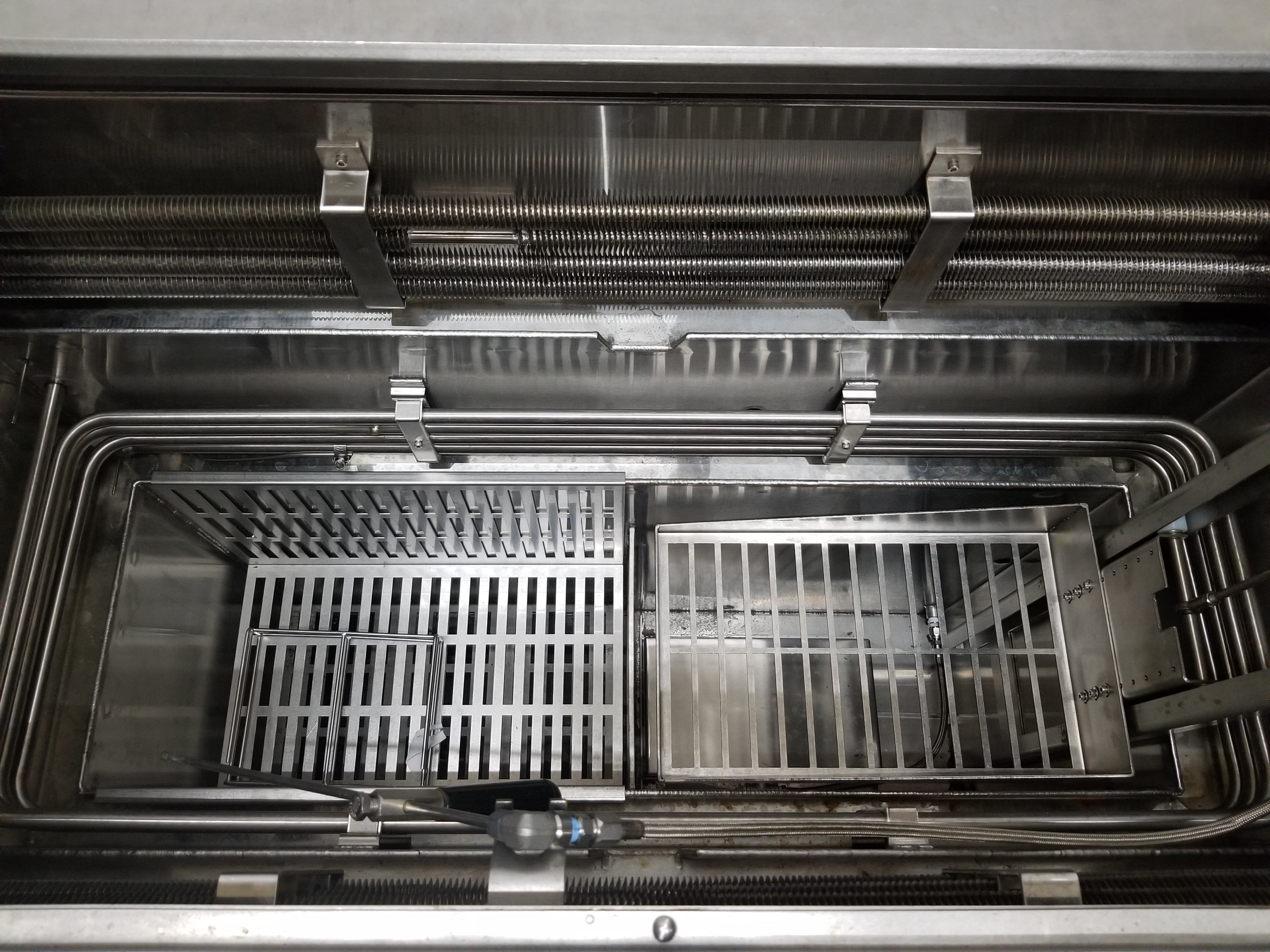

• Sub-Zero Temperature Condensing Coil - Finned stainless steel condensation coil with Copeland R404A refrigeration operating to approximately -20F thus broadening the height of the solvent flash-off dwell zone for enhanced solvent containment.
• Foot Operated Spray Lance System - Mag-drive pump with distillate spray reservoir with Vapor Up Safety Control which requires presence of vapor to permit operation of spray wand.
• High Volume Condensate Water Separator - feeding spray reservoir

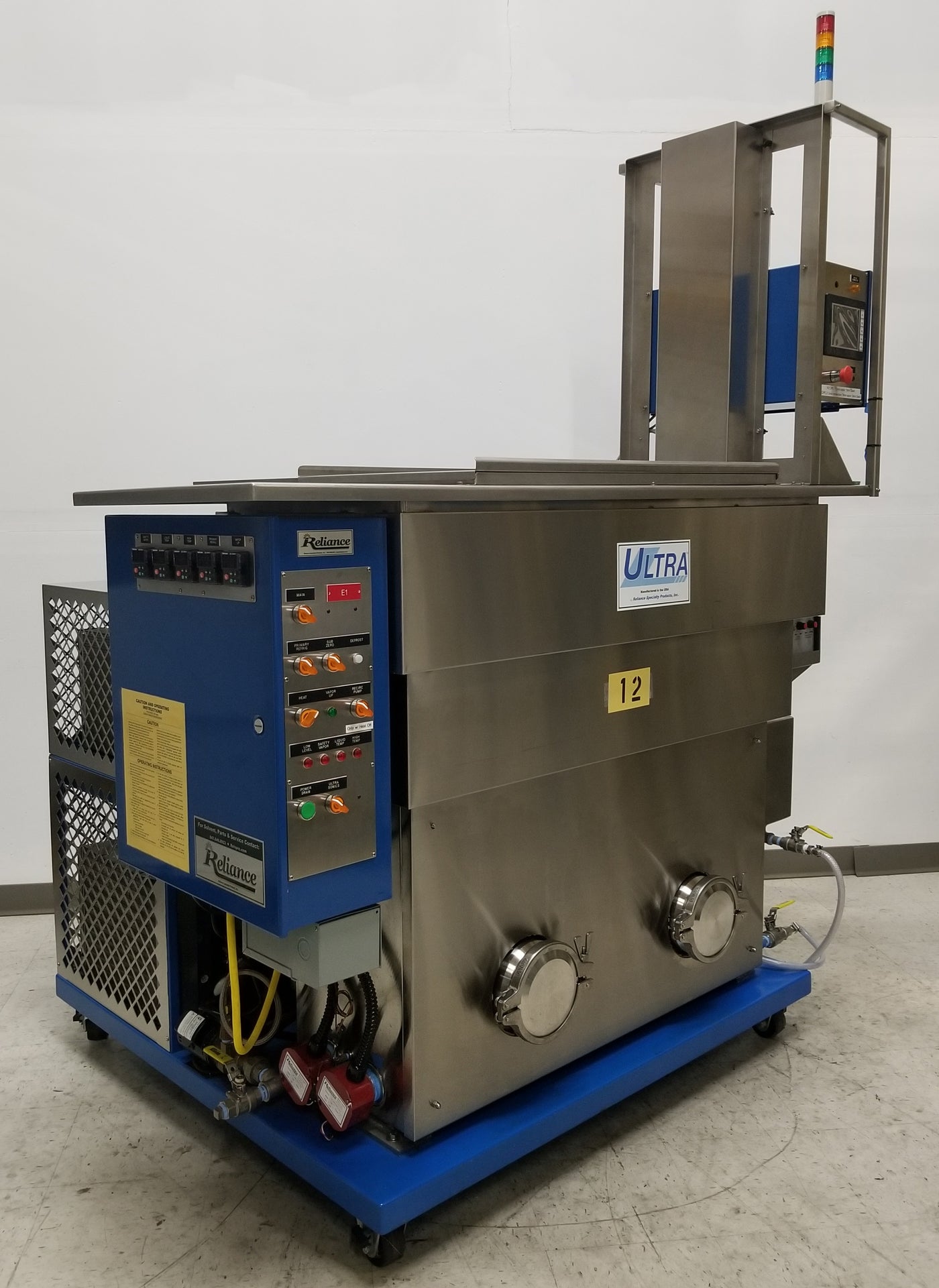

• Digital Display Safety Control Panel - including HTC, LTC, SVC, VU, RT

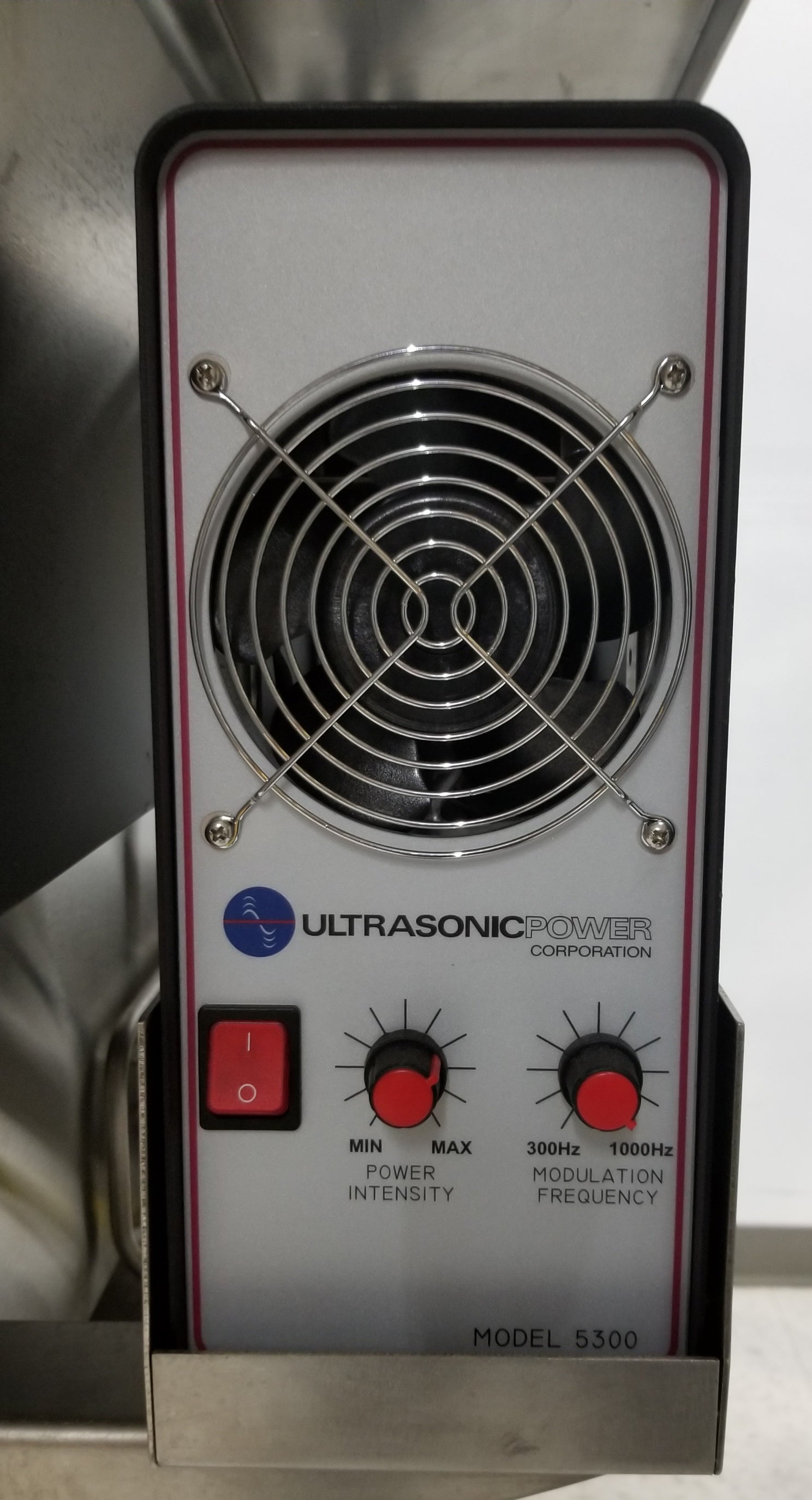

• Ultrasonic Power – 500 Watts @ 40 kHz - field replaceable submersible transducers and plug in external ultrasonic generator for easy servicing
• Ultrasonic Power - Input adjustment and sweep frequency adjustment
• Ultrasonic Immersion Sump filtration and re-circulation system with mag-drive pump

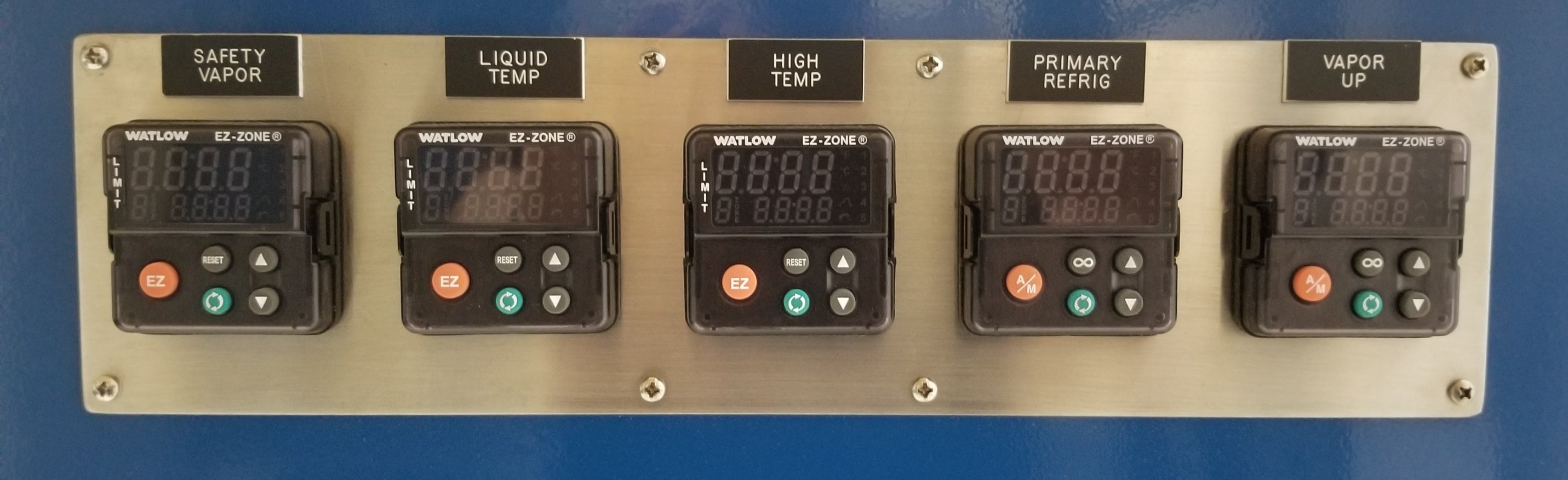

• WATLOW Temperature Safety Limit Controls - Digital display on control panel; temperature set point as well as actual temperature – SVC (Safety Vapor Control), HTC (High Temperature Control), LTC (Liquid Temperature Control) and RT (Refrigeration Temperature Control)
• Low-Level Float Safety System - Ensures the minimum amount of solvent in boil sump for proper system operation.

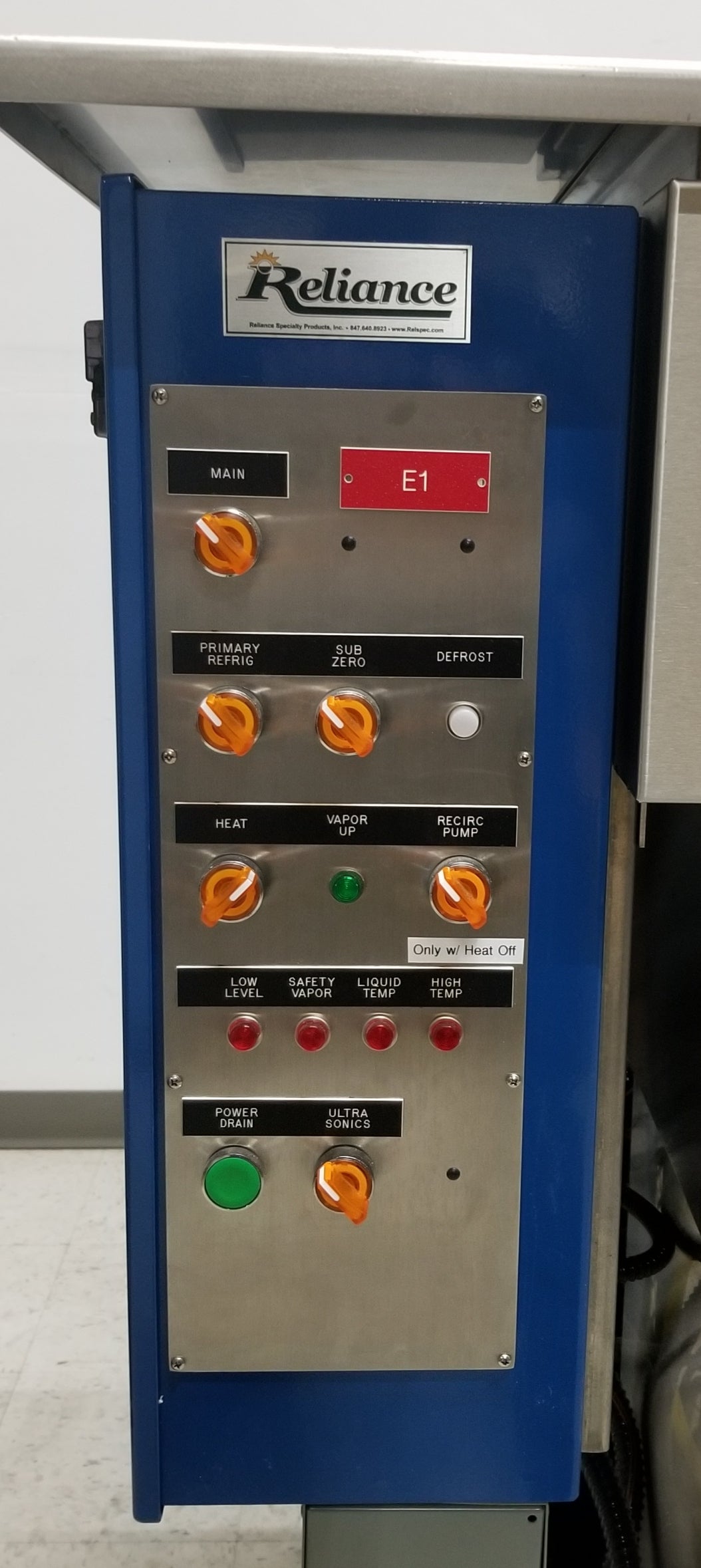

• Comprehensive Indicator Light System on Control Panel - Includes solvent low level float fault indicator lights (for easy identification of operating fault conditions). “Spray Ready” indicator light and zero coil “Defrost” indicator light, illuminated on/off switches for easy identification of system condition “Heat”, “Filtration”, Main Power”, “Refrigeration” and “Low-Temp Refrigeration”.

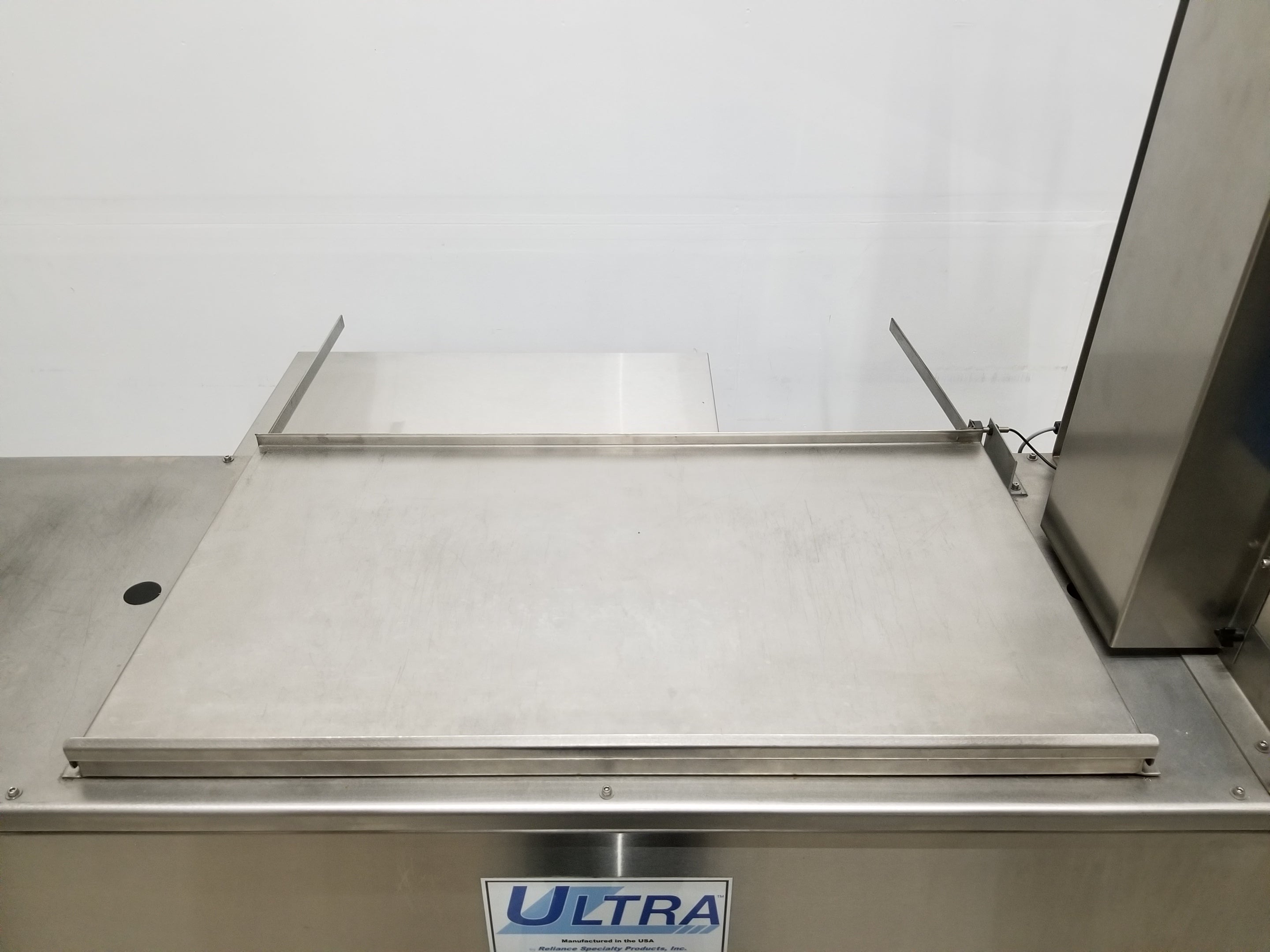

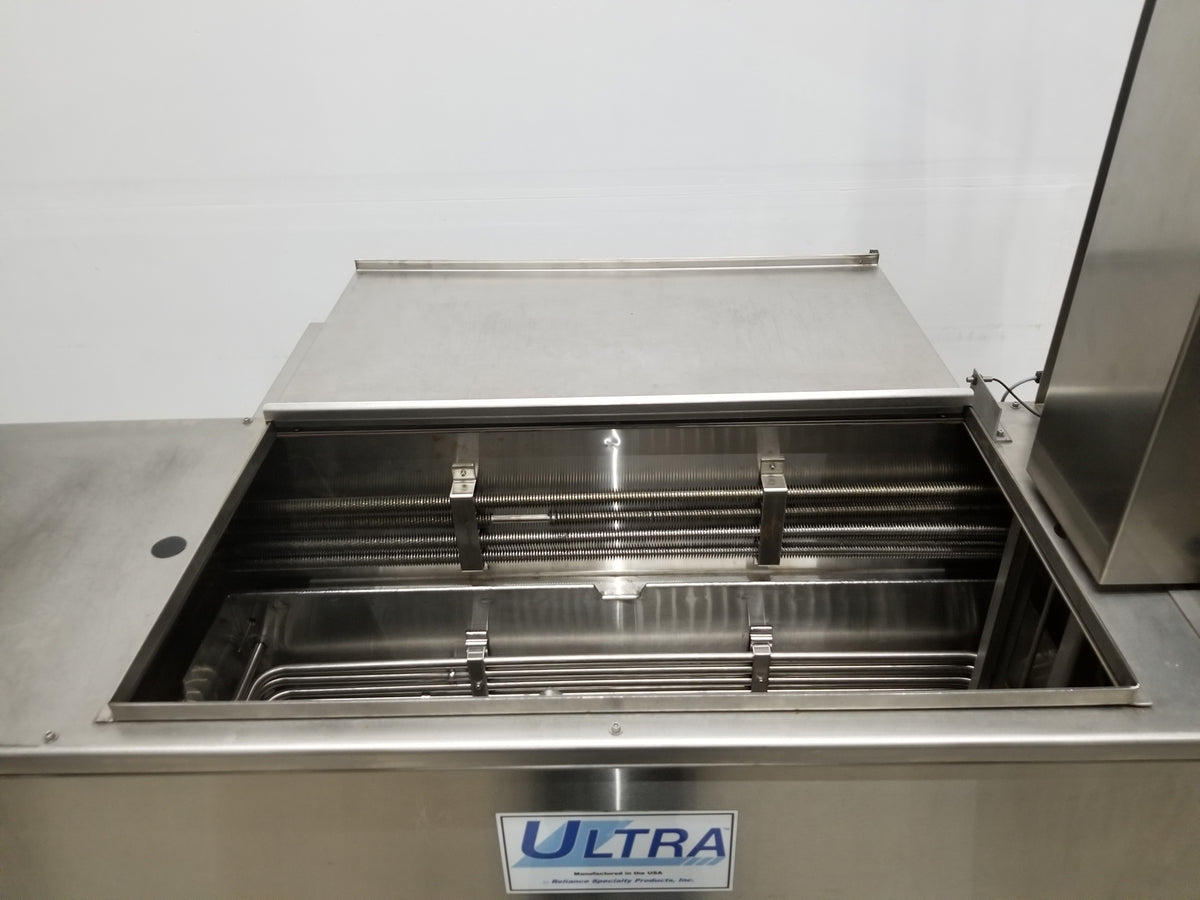

• Horizontal Slide Lid - for solvent containment. Optional power roll-top available.
• Casters - for easy movement.
• Simple In and Out Electric Immersion Heater - “Screw-In” type elements for easy replacement.
• Two Sump Access Clean-Out Doors - Boil sump and immersion sump access for ease of maintenance through the clean-out door rather than over the tank top
• Solvent Operating Requirement- 26 gallons
• 208V, 1Ph, 50/60Hz, 40A

ULTRA™ 2012 LE: Compatible with Non-Flammable Solvents

• Simple Changeover - The ULTRA™ 2012 LE is engineered to be compatible with a variety of solvents and in most cases a simple clean out and change of temperature settings is all that is required.
• 120% Freeboard — helps with vapor containment - so using chlorinated solvents like TCE, TCA, MCL and PERC is still possible.
• Sub-Zero refrigeration coil - in addition to the primary refrigeration system, makes using brominated solvents like GenTech™, EnTron™ and EnTron-Aero™ or Modernized chemistries solvents such as AeroTron - an economical alternative.
• Manual Slide-Lid - provides additional solvent containment for the new generation of fluorinated solvents like AeroTron™ and helps reduce evaporation.
