Used T-TECH 7000-SE

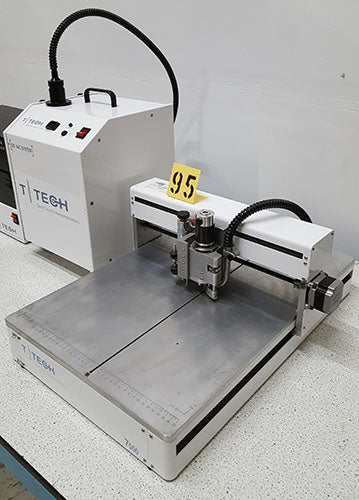

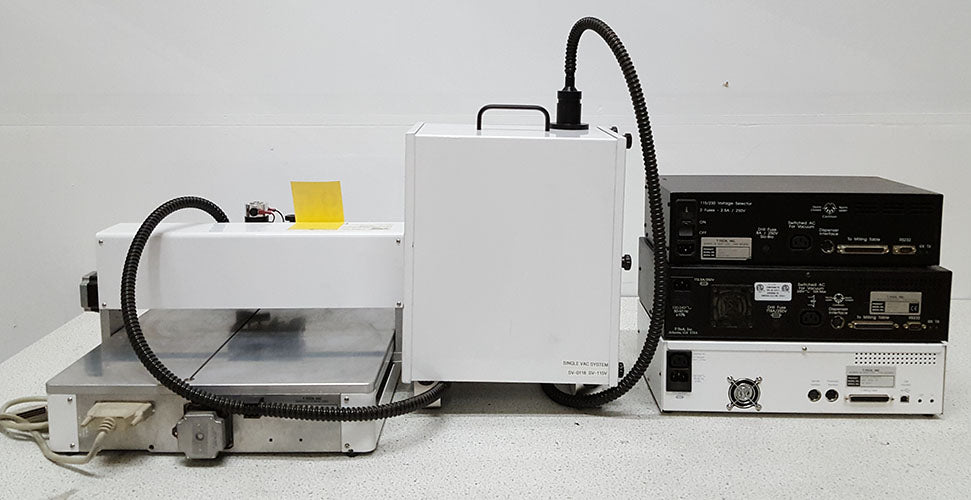

T-TECH 7000-SE Quick Circuit Prototype System. The Quick Circuit QC7000 is equipped with a large 13” x 19″ work area. This system provides you with everything you need to produce circuit board prototypes within hours. The QC7000 can easily produce analog, digital, or RF/Microwave prototypes. Specifications: Model QC7000   Standard Speed High Speed RPM Software Controlled 8-24,000 0-60,000 or 0-100,000 3 Phase Spindle Power 300 Watts 300 Watts Smallest Drill Size .15mm (0.006”) 0.1mm (0.004”) Smallest Mill Size .15mm (0.006”) 0.1mm (0.004”) Milling Speed 3,800mm/min (150”/min) 3,800mm/min (150”/min) Traverse Speed 3,800mm/min (150”/min) 3,800mm/min (150”/min) Drilling Speed 180 Holes/min 180 Holes/min Routing Speed 3,800mm/min (150”/min) 4,500mm/min (180”/min) Material Size 400mm x 610mm (16”x24”) 400mm x 610mm (16”x24”) Work Area 330x480x16 mm (13x19x0.629”) 330x480x16 mm (13x19x0.629”) Resolution 0.0012mm (0.0005”) 0.006mm (0.00025”) Repeatability  0.008mm (0.00036”) 0.004mm (0.00018”)
